8 of 29
ISSUED: 04-01-11 SHEET #: 203-9029-2 07-27-11

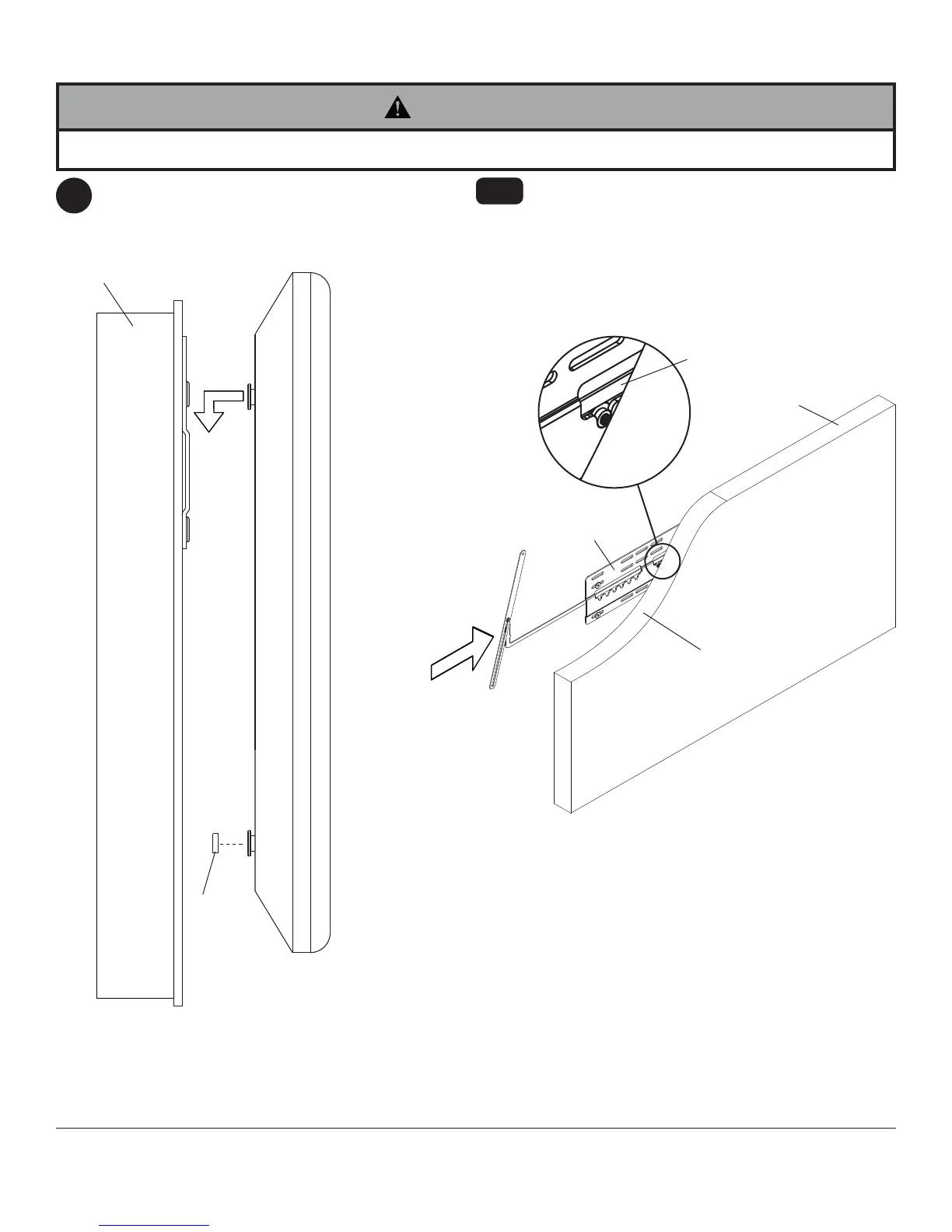

Apply cloth bumpers (Q) to bottom mounting
screws as shown in fi gure 3.1.
Hook top mounting screws into wallplate grooves.
Secure display by inserting lock arm (B) into wall
plate (A) as shown in fi gure 3.2.
Lock arm must reside over top of display mounting
screws as shown in detail 2.
Mounting Flat Panel Display
• Always use an assistant or mechanical lifting equipment to safely lift and position the fl at panel displays.
WARNING
3
Q
B
A
B
fi g. 3.1
fi g. 3.2
DETAIL 2
3-1
DISPLAY
CUTAWAY
VIEW
WOOD STUD
