PEERLESS Mounts SUF650P - Parts and Tools

3 of 16
ISSUED: 02-05-09 SHEET #: 202-9346-1
C
Parts may appear slightly different than illustrated.
D
E F
G H
I JK L
MN
O
PQR
A
B

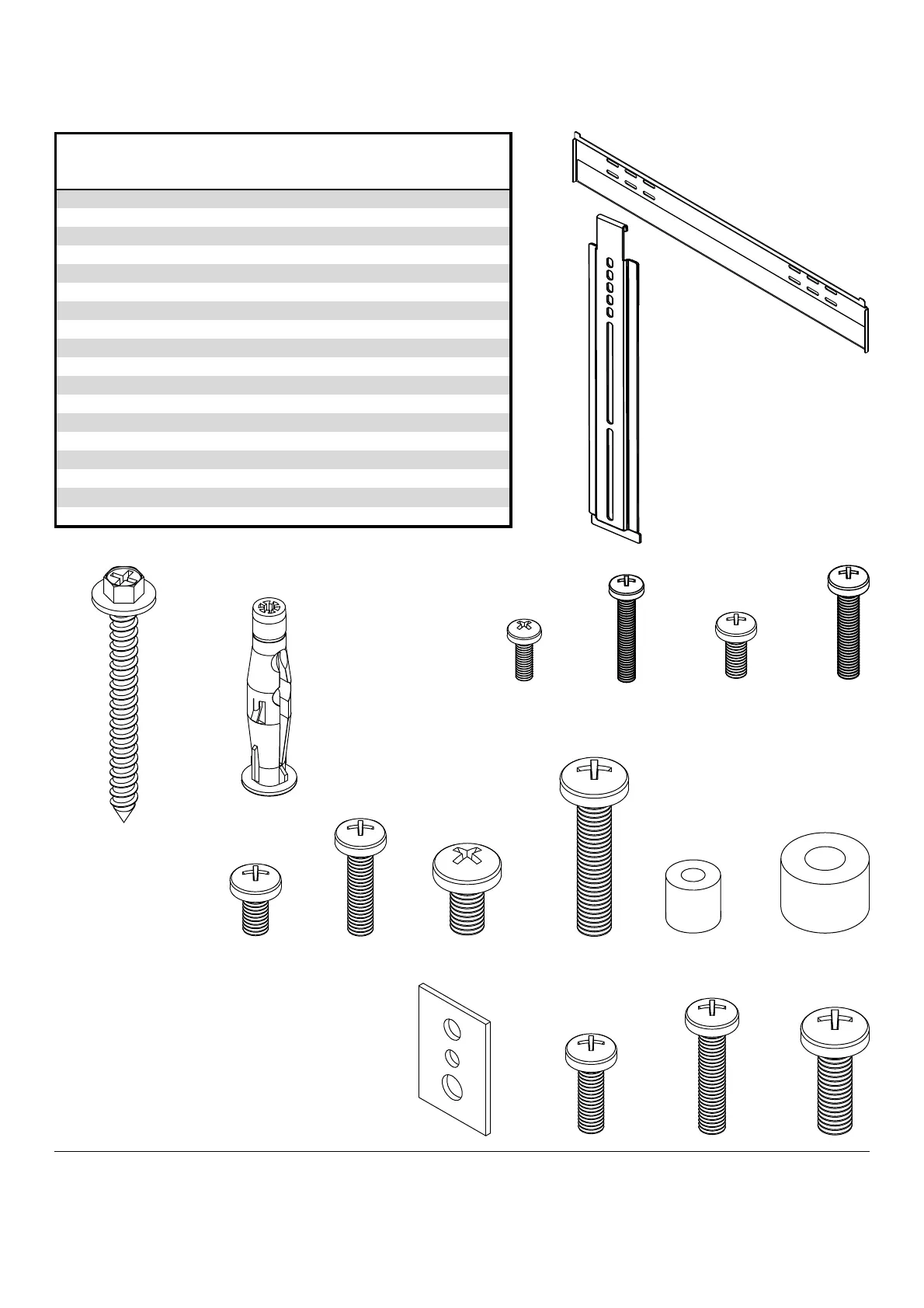

Before you begin, make sure all parts shown are included with your product.
Description Qt
y
. Part #
A
wall plate 1 046-P1024
B
adapter bracket 2 046-P1026
C
wood screws 4 5S1-015-C03
D
concrete anchors 4 590-0320
E
M4 X 12 mm phillips screws 6 504-9013
F
M4 X 25 mm phillips screws 4 504-1015
G
M5 X 12 mm phillips screws 4 520-1027
H
M5 X 25 mm phillips screws 4 520-9543
I
M6 X 12 mm phillips screws 4 520-1128
J
M6 X 25 mm phillips screws 4 520-1208
K
M8 X 16 mm phillips screws 6 520-9257
L
M8 X 40 mm phillips screws 4 520-1136
M
.219" ID x .5" OD spacers 4 540-1057
N
.344" ID x .75" OD spacers 4 540-1059
O
multi washer
6
580-1036
P
M6 X 20 mm phillips screws
4
520-9402
Q
M6 X 30 mm phillips screws
4
510-9109
R
M8 X 25 mm phillips screws
4
520-1031
Parts List
