Item
No.
Description
1A Lower Casing
Upper Casing
2 Impeller
6 Shaft
7 Casing Ring
8 Impeller Ring (Optional)
14,
14A
Shaft Sleeve
14B Shaft Sleeve O-Ring
16 Inboard Ball Bearing
17 Gland
17B Gland Bolt
17C Gland O-Ring
18 Outboard Ball Bearing
18A Bearing Retaining Housing
31 Inboard Bearing Housing
32 Impeller Key
Item
No.
Description
33 Outboard Bearing Housing
35 Inboard Bearing Housing Cover
37 Outboard Bearing Housing Cover
40A Inboard Deflector
40B Outboard Deflector
41 Inboard Bearing Housing Cap
43 Outboard Bearing Housing Cap
46 Coupling Key
47 Inboard Bearing Cover Seal
65 Seal, Mechanical
Stationary Element
73A Casing Gasket (Not Shown)
73B Bearing Cover Gasket
80 Seal, Mechanical
Rotating Element
80A Shaft Collar
123 Bearing End Cover *
169 Bearing Housing Seal

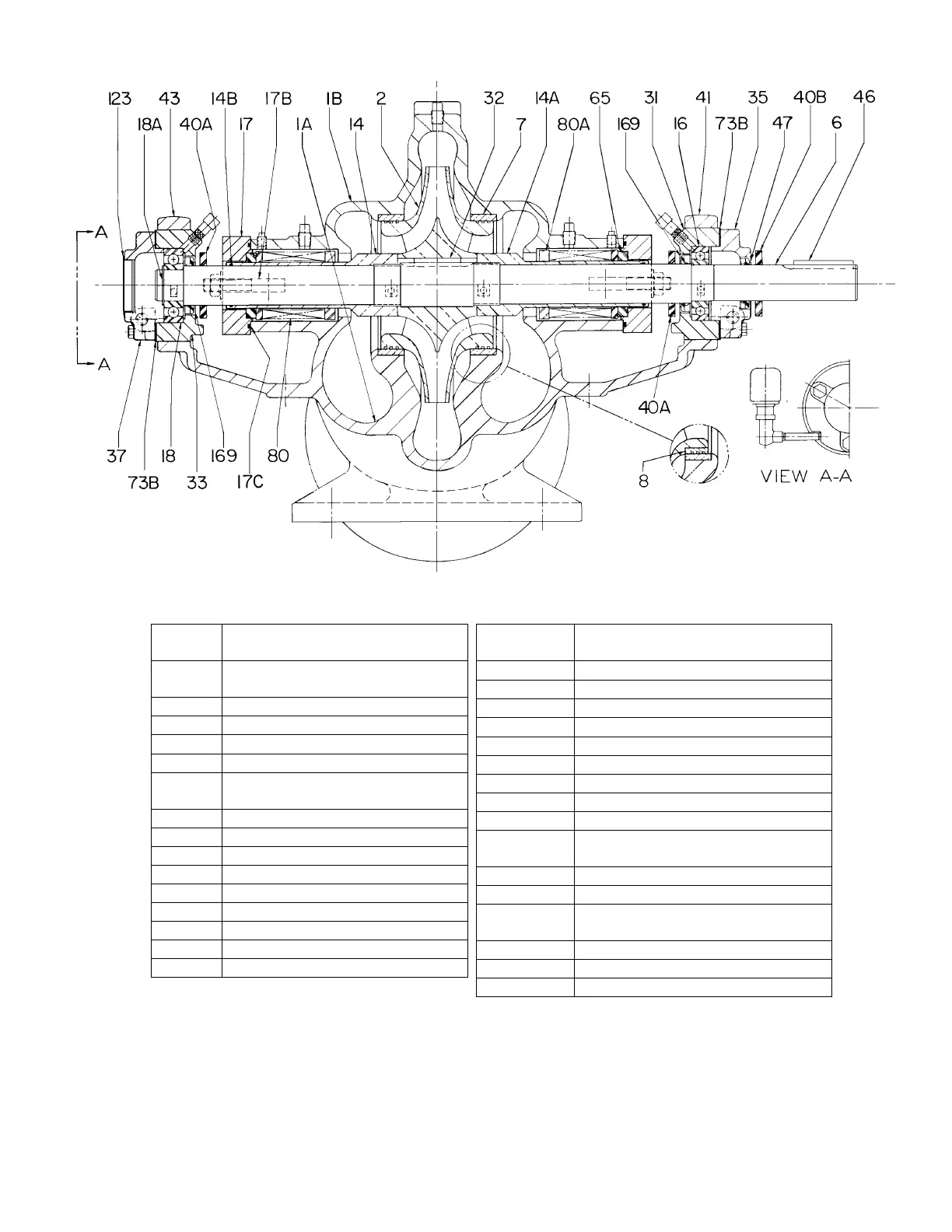

FIGURE 1
*For oil lubricated construction, bearing end cover (123) is gasketed to the outboard bearing housing
cover (37) with a silicone gasket material such as Loctite Superflex ultra blue.
