22
VENTING, INLET AIR AND CONDENSATE

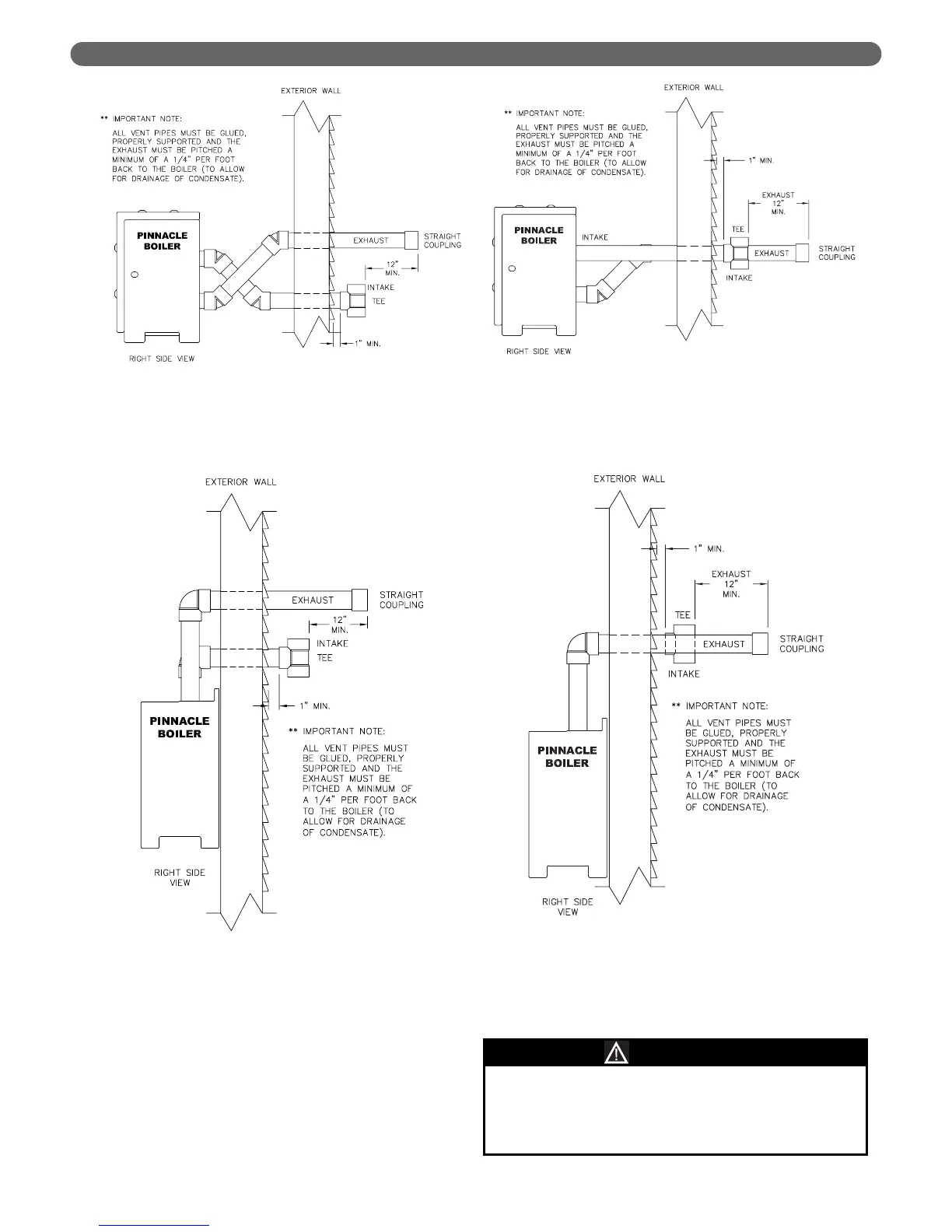

Figure 5.3: PI-80, PI-140, and PI-199 Sidewall
Venting with 3" Pipe (Exhaust
Termination at Higher Elevation than
Air Intake).
Figure 5.5: PI-80, PI-140, PI-199 Sidewall Venting
with 3" Pipe (Air Intake and Exhaust on
the same Elevation).
Figure 5.4: PI-T50 & PI-T80 Sidewall Venting with
2" Pipe (Exhaust Termination at Higher
Elevation than Air Intake).
Figure 5.6: PI-T50 & PI-T80 Sidewall Venting with
2" Pipe (Air Intake and Exhaust on the
same Elevation).
All exhaust vent pipes must be glued, properly
supported, and pitched at a minimum of ¼" per foot
back to the boiler. Failure to do so may result in severe
personal injury, death, or substantial property damage.
WARNING
