7 of 24
ISSUED: 10-31-07 SHEET #: 202-9242-2 03-20-08
Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
for a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown below.
Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If screw
cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack. Repeat for
remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
for a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen as
shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over
tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener
pack. Repeat for remaining mounting holes, level brackets and tighten screws.

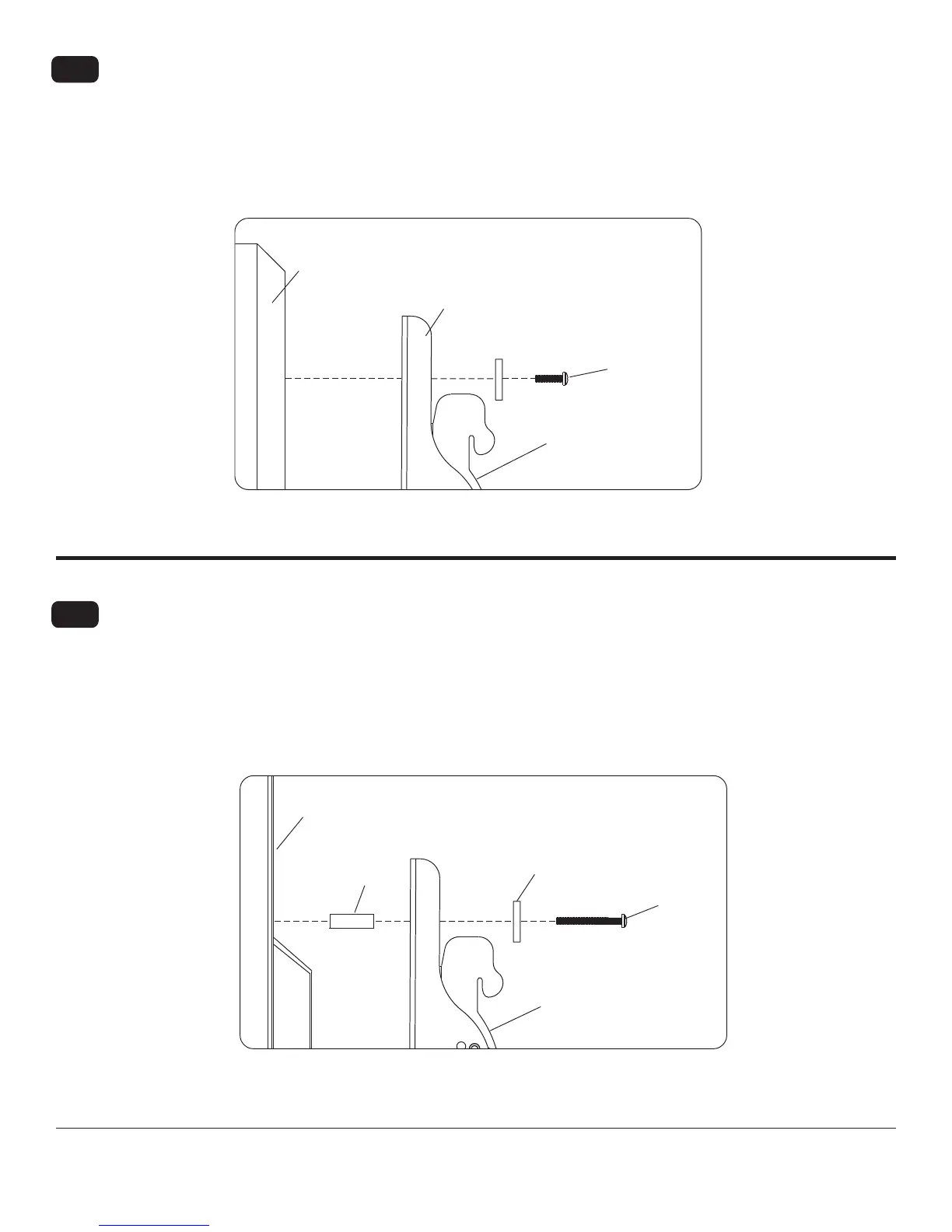

For Flat Back Screen
For Bump-out or Recessed Back Screen
SCREEN
WASHER
SCREW
ADAPTER
BRACKET
(BB or CC)
fig. 2.2
SPACER
ADAPTER
BRACKET
(BB or CC)
SCREEN
fig. 2.1
WASHER
SCREW
2-1
2-2
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
