6 of 24
ISSUED: 10-31-07 SHEET #: 202-9242-2 03-20-08
Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870
Attaching Tilt Brackets to Screen using Baffled Fastener Pack
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen
face side down. Refer to screen manufacturers instructions or customer service, for removing any knobs, base, cover, or
screw(s) on the back of the screen to prepare mounting. These need to be removed to allow the adapter brackets to be
attached. Select the small, medium, large or extra large screws from the baffled fastener pack then attach adapter
brackets to screen following figure 2.1 or 2.2.
NOTE: Be sure to attach adapter brackets with handles facing outward as shown below.
NOTE: Top and bottom mounting holes on screen must be used for attaching brackets. Middle holes should also be used
where the fasteners and screens allow. Verify that all holes are properly aligned, and then tighten screws using a phillips
screwdriver.
• Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached.
Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
BB

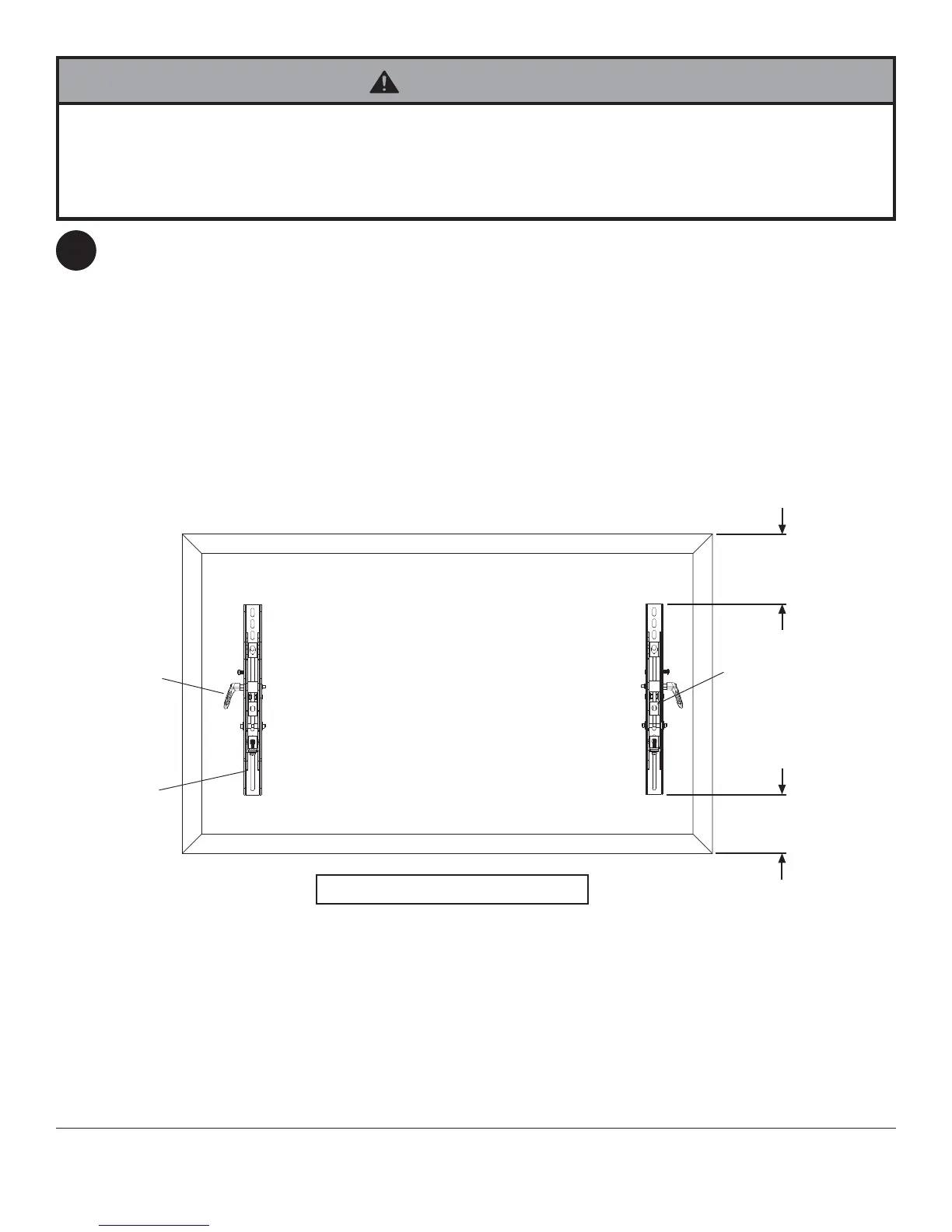

CENTER BRACKETS VERTICALLY ON BACK OF SCREEN
X
X
HANDLES FACE
OUT
Note: "X" dimensions should be equal.
NOTE: For flat back screens proceed to step 2-1. For bump-out or recessed back screen skip to step 2-2.
2
CC
To Next Page
