TECHNICAL DATA SHEET
MODEL: PLCM-UNL
page 2 of 3
ISSUED: 07-31-06 SHEET NO: 200-9831-3 07-08-09
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com
© 2008, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
(UNLESS OTHERWISE SPECIFIED)
ALL DIMENSION =
INCH
(MM)

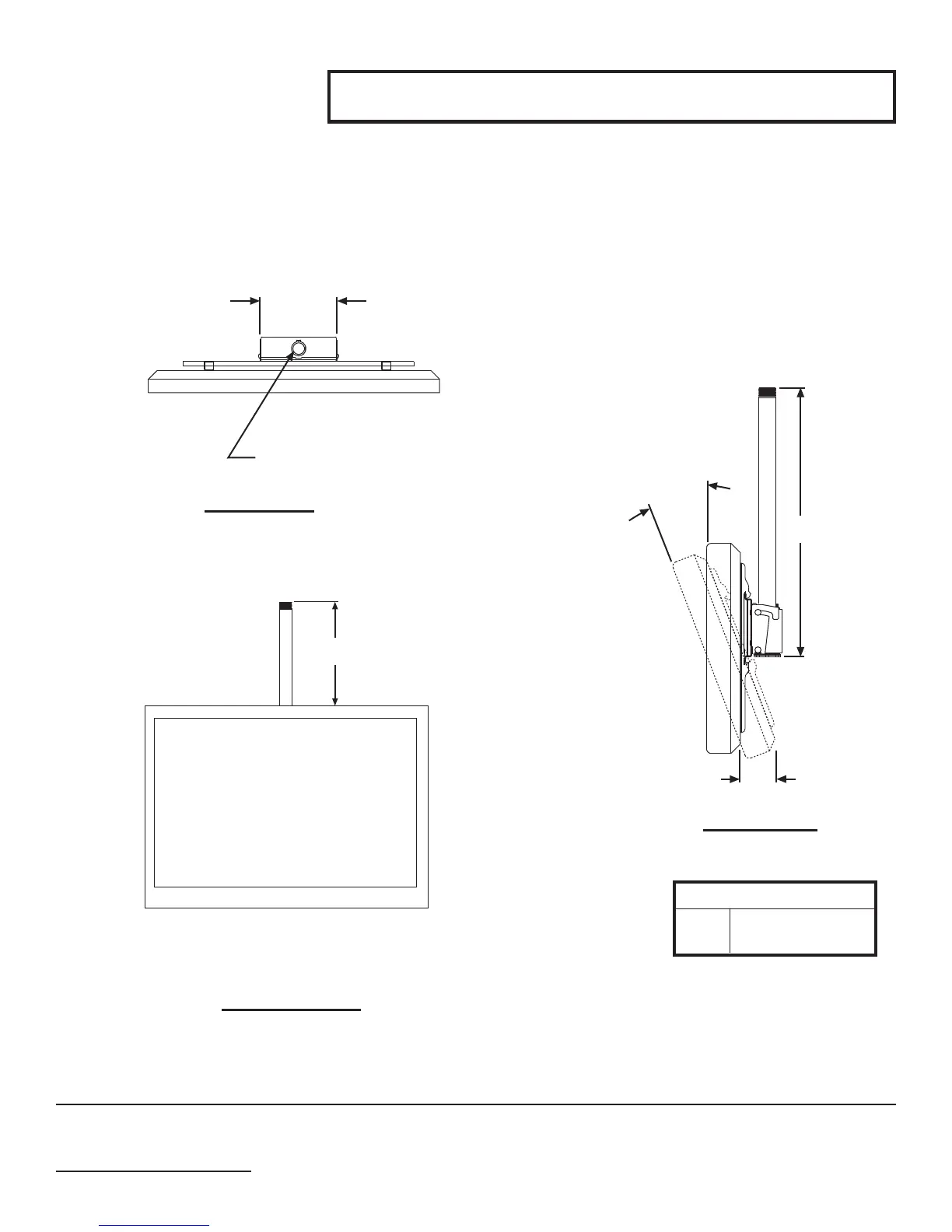

FRONT VIEW
SIDE VIEW
0° to 20°
TILT
5.25
(133)
RANGE
3.75
(95)
R
TO
Landscape: X = A - (
1
/
2
( height of screen)) - 2.68" (68 mm))
A = 34.26" (870 mm) when used with 33" (838 mm) extension
column Landscape: X = A - (
1
/
2
( height of screen)) - 2.68" (68 mm)
TOP VIEW
10.24
(260)
1.79
(46)
X
A
R
