PEERLESS PM 13 - Page 4

ISSUED: 07-17-96 SHEET #: 170-9001-7 10-26-04
4 of 12
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
0
0
10
0
5
0

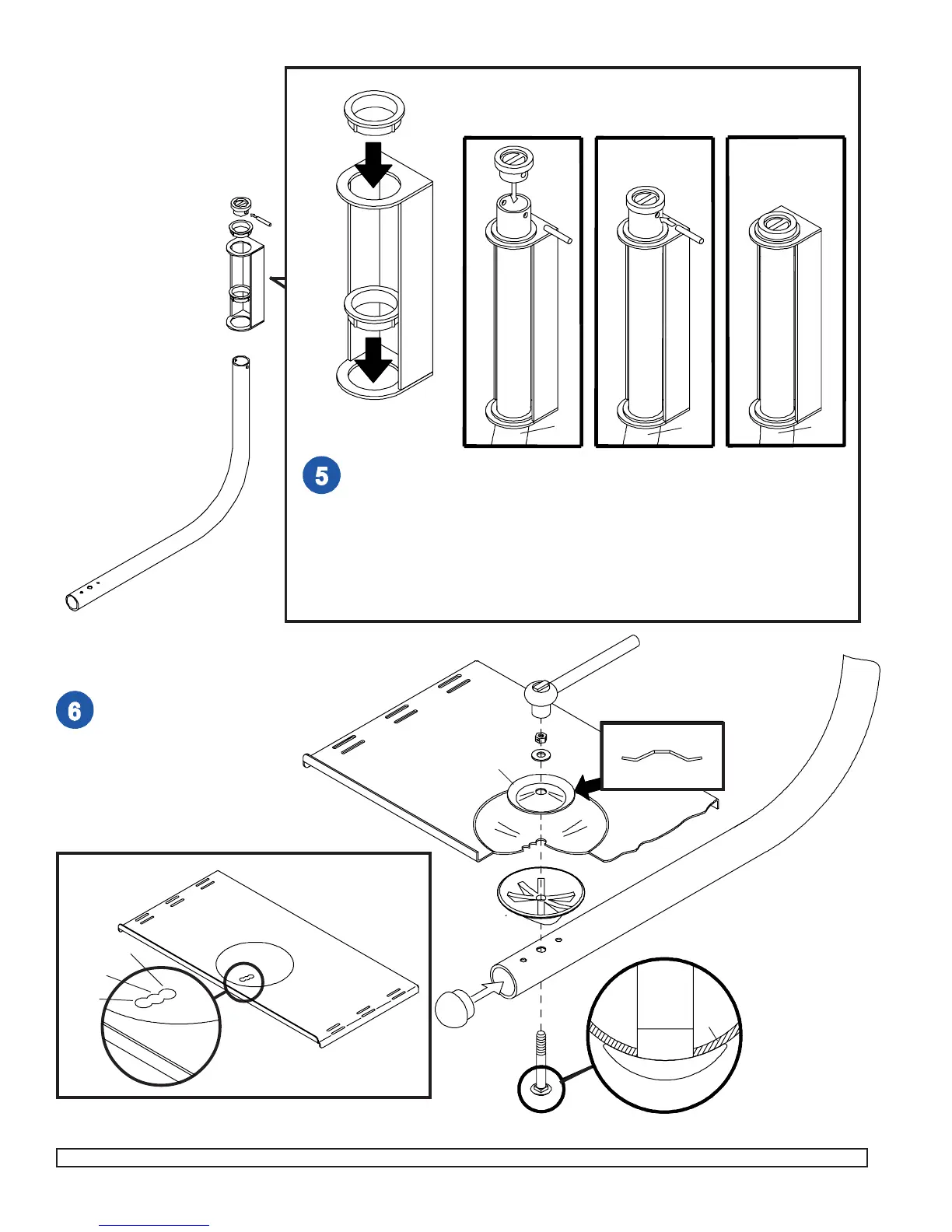

Join support arm
(K) and support
arm retainer (C)
with retainer pin
(D). Note: A gentle
tap with a hammer
may be necessary
to insert retainer
pin (D).
Snap bushings
(E) into wall
bracket (F).
Insert support arm
(K) into wall bracket
(F), then insert
support arm
retainer (C).
E
E
F
C
D
F
F
K
K
K
C
C
Support arm
retainer (C) will
hold support arm
(K) in place on
wall bracket (F).
11/16"
(17 mm)
G
H
I
L
M
N
K
N
J
K
Complete the wall
mount assembly as
shown. Note: If install-
ing a VCR mount refer
to that instruction
before completing
this step.
Choose from one of three tilt positions.
