7 of 27
ISSUED: 05-18-05 SHEET #: 095-9234-4 08-23-05
SCREW

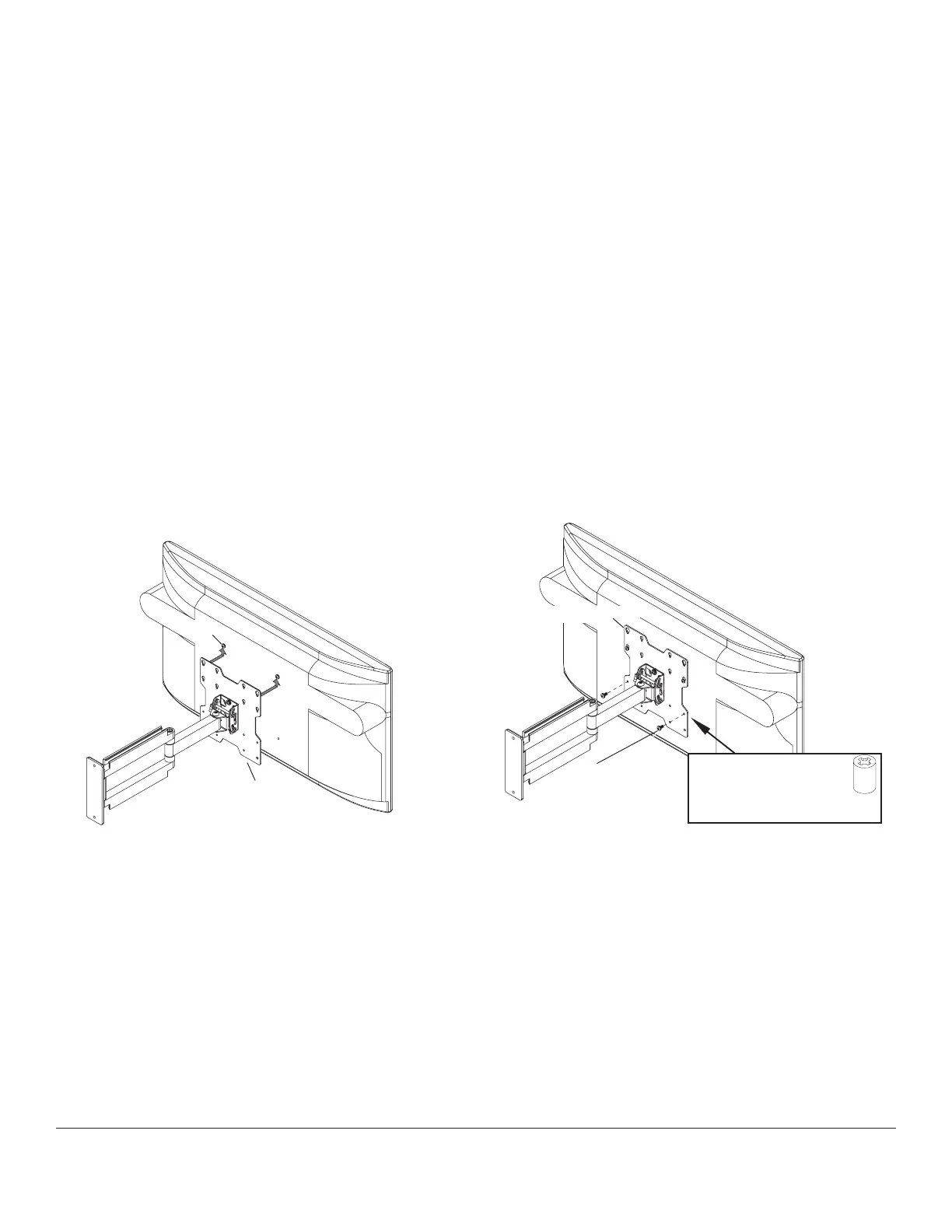

fig. 2.5
ADAPTER PLATE
FOR VESA 100 MOUNTING PATTERN:
Thread two M4 x 12 mm screws (E), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using bottom two M4 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
*Note: If screw (E) gets less than three threads of engagement, attach adapter plate to back of screen using four M4 x 20
mm screws (F) as indicated in figure 2.5.
FOR VESA 200 MOUNTING PATTERN:
Thread two M4 x 12 mm screws (E), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M4 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
*Note: If screw (E) gets less than three threads of engagement, attach adapter plate to back of screen using four M4 x 20
mm screws (F) as indicated in figure 2.5.
FOR VESA 200 x 200 MOUNTING PATTERN:
Thread two M6 x 12 mm screws (G), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
FOR SHARP
™
37" LCD SCREEN MODELS LC-37HV6U AND LC-37HV4U:
Thread two M6 x 20 mm screws (J), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 20 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
FOR SHARP
™
45" LCD SCREEN MODEL LC-45GX6U:
Thread two M6 x 30 mm screws (K), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 30 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
C
*For screens with a hole
pattern in a pocket,
spacers (C) go between
adapter plate and screen.
SCREW
ADAPTER
PLATE
fig. 2.4
To Next Page
