PEERLESS Smartmount ST670 User Manual

A R C H I T E C T S S P E C I F I C A T I O N S
The Smartmount
®
Universal Tilt Wall Mount shall be a Peerless model ST670 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and nished with scratch resistant Black or Sliver Fused Epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
ST670(P)(-S)
46.75" x 8.63" x 3.88"
(119 x 219 x 99mm)
15.4lb (6.98kg)
ST670:
ST670-S:
ST670P:
ST670P-S:
735029242277
735029242291
735029242284
735029242307
Wall plate, universal
screen adapters,
mounting and screen
attachment hardware
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
ST670(P)(-S)
37.75" x 20.62" x 3.04"
(959 x 524 x 77mm)
12.97lb (5.8kg) 250lb (113kg)
Scratch
resistant
fused
epoxy
ST670(P):
ST670(P)-S:
Black
Silver
Product Specifications
Model Numbers
WARRANTY: Limited 5-year
ACC415: 4-pack Metal Stud Fastener Kit
ACC615: 6-pack Metal Stud Fastener Kit
ACC309: Video Conference Shelf
All dimensions = inch (mm)
ST670(-S) Universal Tilt Wall Mount for 42" to 71" Flat Panel Screens - security models
ST670P(-S) Universal Tilt Wall Mount for 42” to 71” Flat Panel Screens - standard models
LIT-0604
19.80"
MAX.
(503mm)
36.04"
MAX.
(915mm)
40.16"
(1020mm)
2.50"
(64mm)
5.50"
(140mm)
4.00"
(102mm)
5.50"
(140mm)
3.04"
(77mm)
6.41"
(163mm)
15°
37.75"
(959mm)
5.00"
(127mm)
7.45"
(189mm)
1.00"
(25mm)
20.00"
(508mm)
24.00"
(610mm)
16.00" 16.00"
(406mm)(406mm)
20.63"
(524mm)
1.25"
(32mm)
0.85"
(22mm)
0.75"
(19mm)

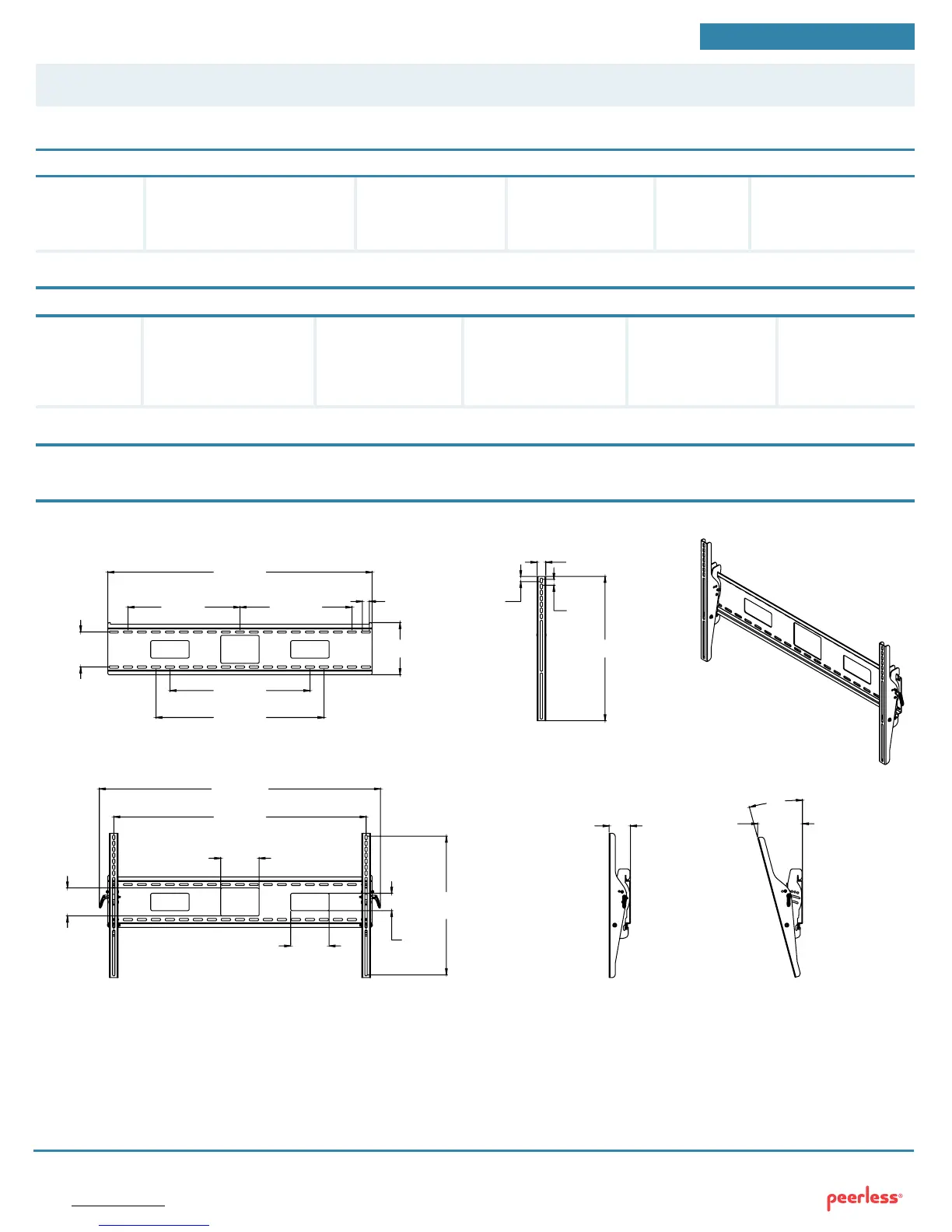

FRONT VIEW
SIDE VIEW
15° TILT
WALL PLATE VERTICAL BRACKET
SIDE VIEW
ISOMETRIC VIEW

PEERLESS Smartmount ST670 Specifications

General

Brand	PEERLESS
Model	Smartmount ST670
Category	TV Mount
Language	English
