Attaching Metal Shelf

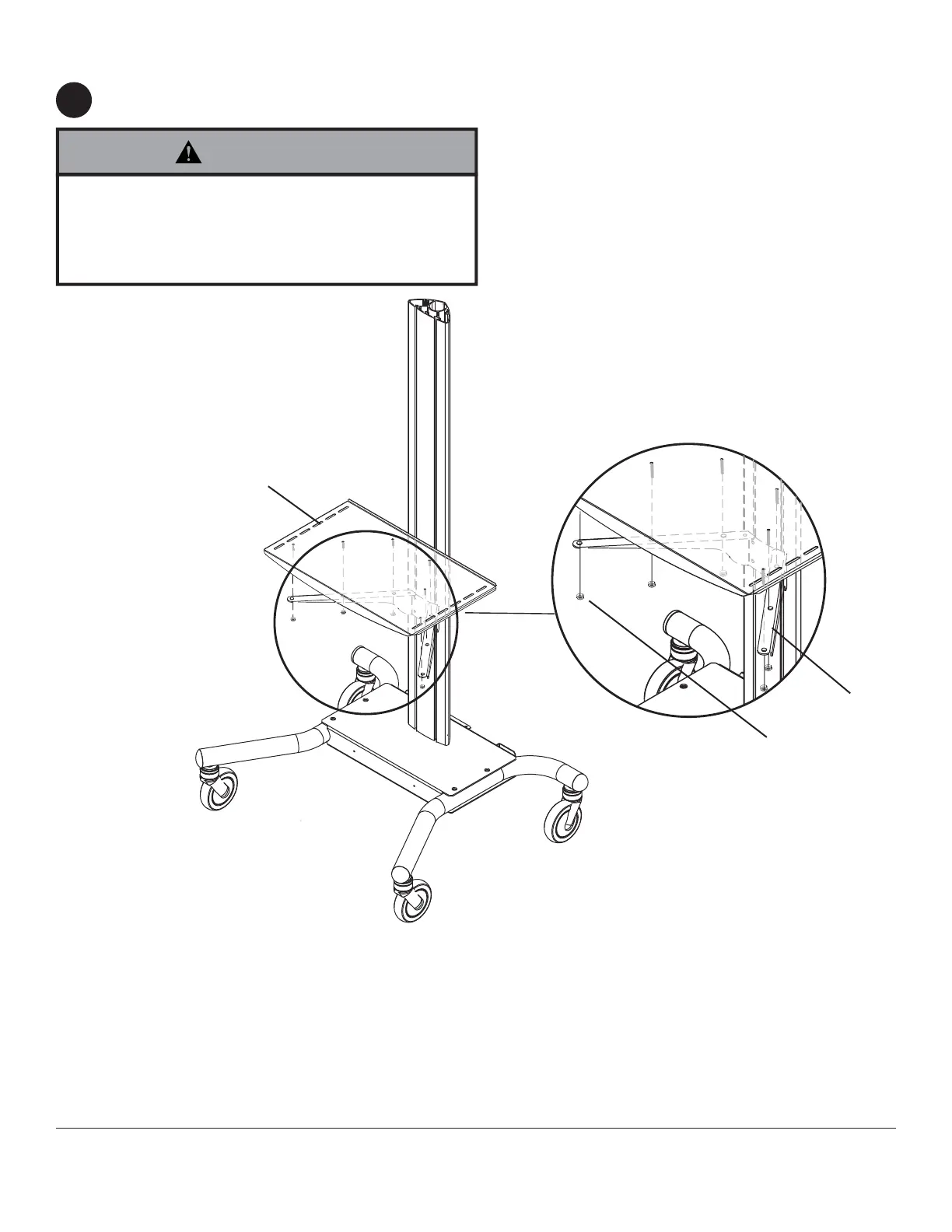

Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench
to tighten six 8/32 nylock nuts (O).
O
P
C
• This shelf is intended for use with equipment weighing
NO more than 50 lbs. (22.7 kg) that ts evenly accross
the surface of shelf pan (P). Use with other equipment
may result in instability and cause personal injury or
property damage.
WARNING
