3 of 24
ISSUED: 01-13-06 SHEET #: 202-9030-2 01-30-06
Penta-Pin Driver (1)
CC
M4 x 12 mm (6)
Adapter Bracket Fasteners
M4 x 25 mm (4)
M5 x 12 mm (4)
M5 x 25 mm (4)
M6 x 12 mm (4)
M6 x 25 mm (4)
M6 x 20 mm (4)
M6 x 30 mm (4) I.D. 6.5 mm (4) multi-washer (6)

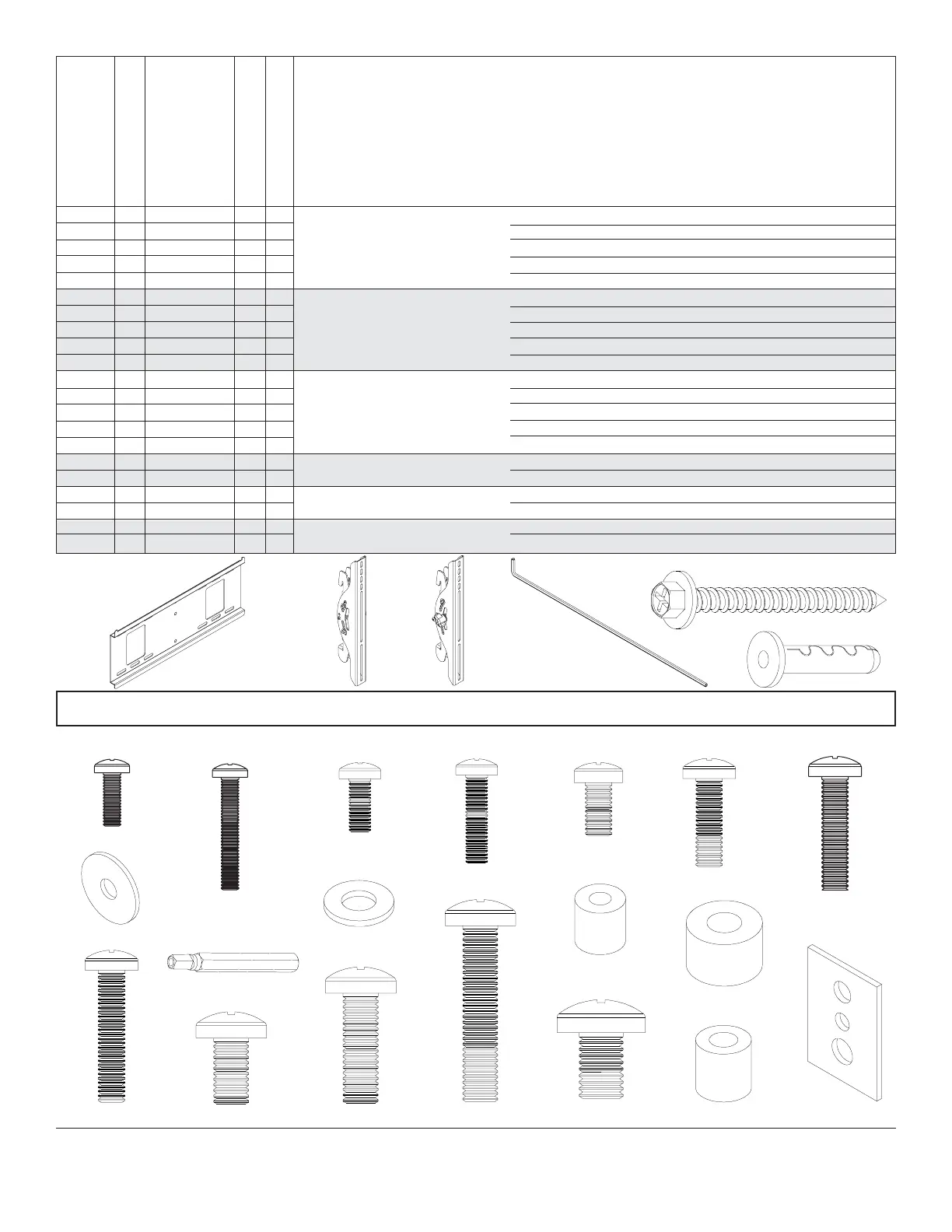

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
AA
BB
DD
FF
M8 x 16 mm (6) M8 x 40 mm (6)M8 x 25 mm (4)
I.D. 8.7 mm (4)
I.D. 5.1 mm (4)
M10 x 15 mm (4)
I.D. 5.6 mm (4)
EE
ST 640, ST 640P,
ST 640-S, ST 640P-S
RTFPT-220, RTFPT-220S,
D-FPT-220, D-FPT-220S
ST 650, ST 650P,
ST 650-S, ST 650P-S
ST 660, ST 660P,
ST 660-S, ST 660P-S
RTFPT2-320,
RTFPT2-320S,
D-FPT2-320,
D-FPT2-320S
ST 670, ST 670P,
ST 670-S, ST 670P-S
ST 680, ST 680P
ST 680S, ST 680PS
Parts List Non-Security Security
Black Silver Black Silver
Description Qty. Part Number Part Number Part Number Part Number
! AA wall plate (double stud) 1 200-1797 200-4797 200-1797 200-4797
! (double stud) 201-1026 201-4026 201-1026 201-4026
! (double stud) 201-1018 201-4018 201-1018 201-4018
! (triple stud) 200-1901 200-4901 200-1901 200-4901
! (triple stud) 200-1902 200-4902 200-1902 200-4902
! BB Left tilt bracket 1 200-0903 200-0905 200-0907 200-0909
! 201-0031 201-0033 201-0027 201-0029
! 200-0911 200-0913 200-0915 200-0917
! 200-0919 200-0921 200-0923 200-0925
! 200-0927 200-0929 200-0931 200-0933
! CC Right tilt bracket 1 200-0904 200-0906 200-0908 200-0910
! 201-0032 201-0034 201-0028 201-0030
! 200-0912 200-0914 200-0916 200-0918
! 200-0920 200-0922 200-0924 200-0926
! 200-0928 200-0930 200-0932 200-0934
!! ! DD #14 x 2.5 wood screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03
!! 6 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03
!! ! EE Alligator® anchor 4 590-0097 590-0097 590-0097 590-0097
!! 6 590-0097 590-0097 590-0097 590-0097
! FF 4 mm allen wrench 1 560-1131 560-1131 560-1131 560-1131
!! !! 560-1146 560-1146 560-1146 560-1146
I.D. 8.9 mm (6)
Note: The sorted-for-you™ fastener pack included was made specifically for your product and may not contain all components
shown below.
