STEAM DISTRIBUTOR

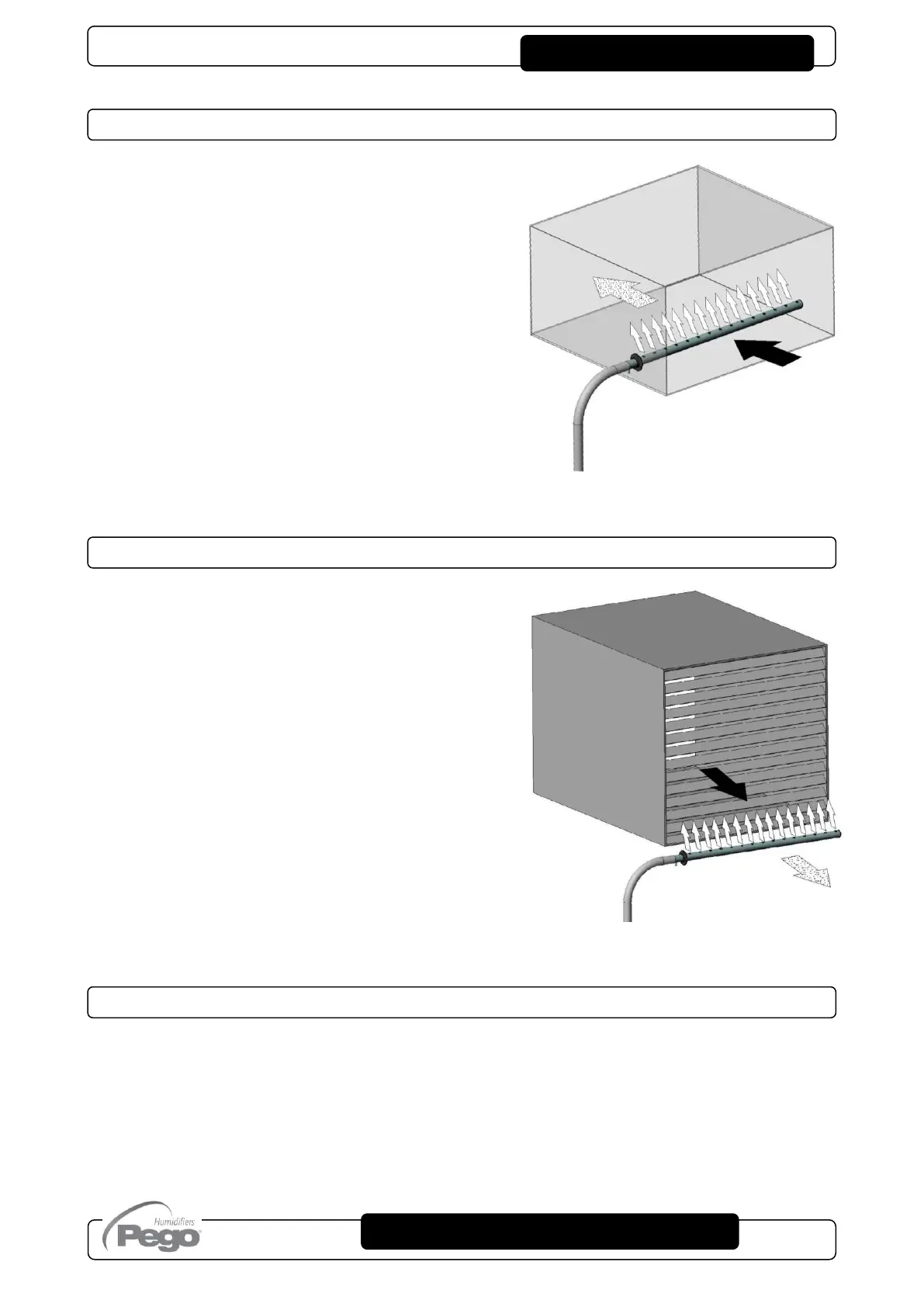

EXAMPLE OF DISTRIBUTION IN AIR DUCT
The PEGO steam distributor must be inserted
transversally to the air flow in the duct and with the
holes facing upwards.
The steam distributor must be positioned horizontally,
tilted so that the tip is slightly higher than the base;
this to allow an efficient recovery of any condensation.
To improve the efficiency of the distribution, the
steam distributor must cover the width of the airflow
as much as possible.
NB: The maximum airflow pressure in the air duct
must not exceed 1,200Pa (fig. 1).
Fig. 1
EXAMPLE OF DISTRIBUTION IN AMBIENT
The PEGO steam distributor must be positioned
transversely in front of the air flow of a fan unit and
with the holes facing upwards.
The steam distributor must be positioned
horizontally, tilted so that the tip is slightly higher
than the base; this to allow an efficient recovery of
any condensation.
To improve the efficiency of the distribution, the
steam distributor must cover the width of the airflow
as much as possible (fig. 2).
Fig. 2
EXAMPLE OF DISTRIBUTION IN TURKISH BATH
The steam diffusion nozzle must be positioned at the bottom and in such a way as not to direct the
steam jet directly onto the users of the Turkish bath.
