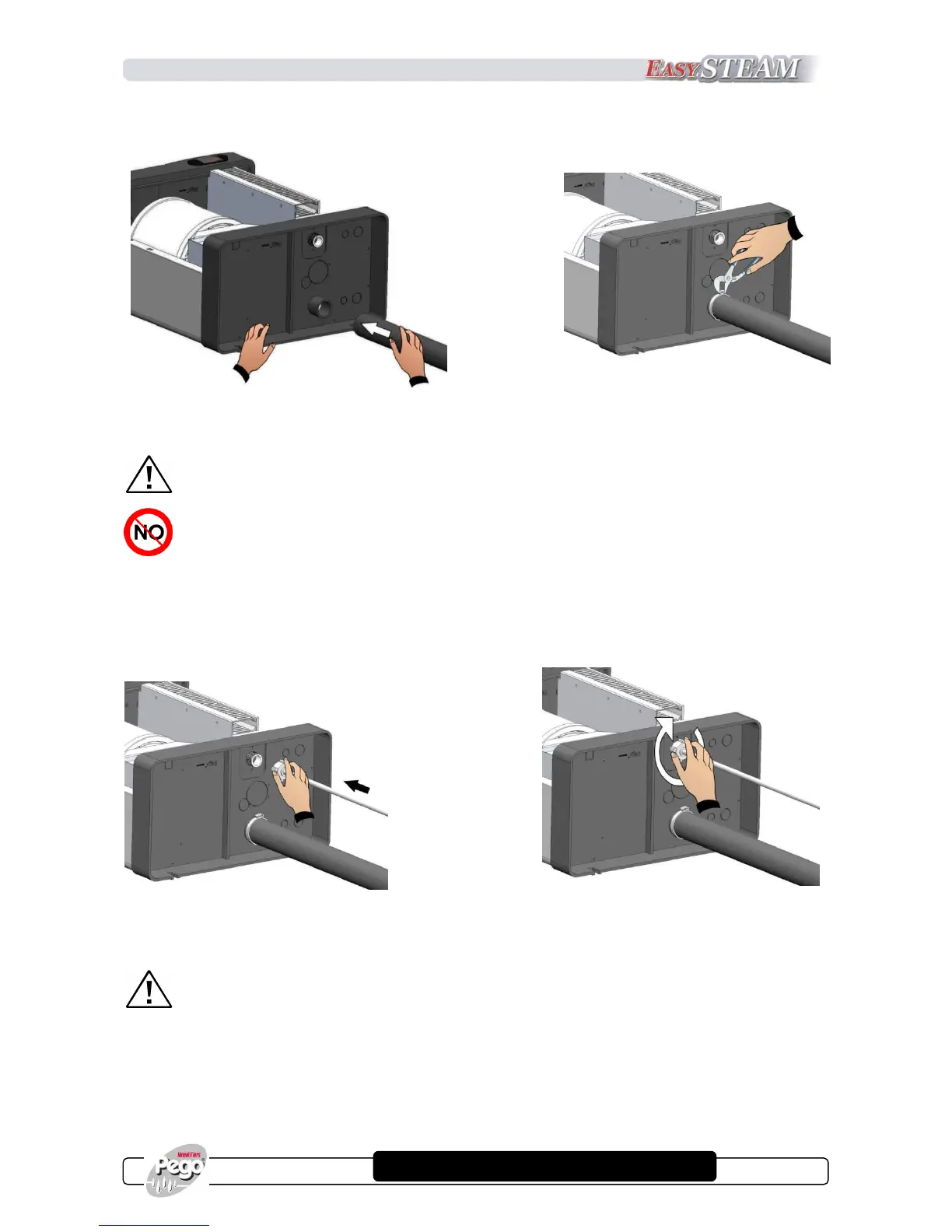

6. Connect the water discharge tube to the 40 mm diameter sleeve, fixing it with the provided strap
(fig. 9 and 10).
Fig. 9 Fig. 10
Only connect the discharge with piping suitable for temperatures not below 100°C, with a
diameter not below 40 mm; do not exceed the height of the humidifier in any point.
NEVER WORK THE HUMIDIFIER IF THE DISCHARGE LINE IS NOT
CORRECTLY CONNECTED!
7. Connect the water charge line to GAS ¾ coupling of the electrovalve located under the
humidifier (fig. 11 and 12).
Fig. 11 Fig. 12
Connect the water charge with a non metal piping, e.g. rubber, PVC, polypropylene,
nylon, etc.
