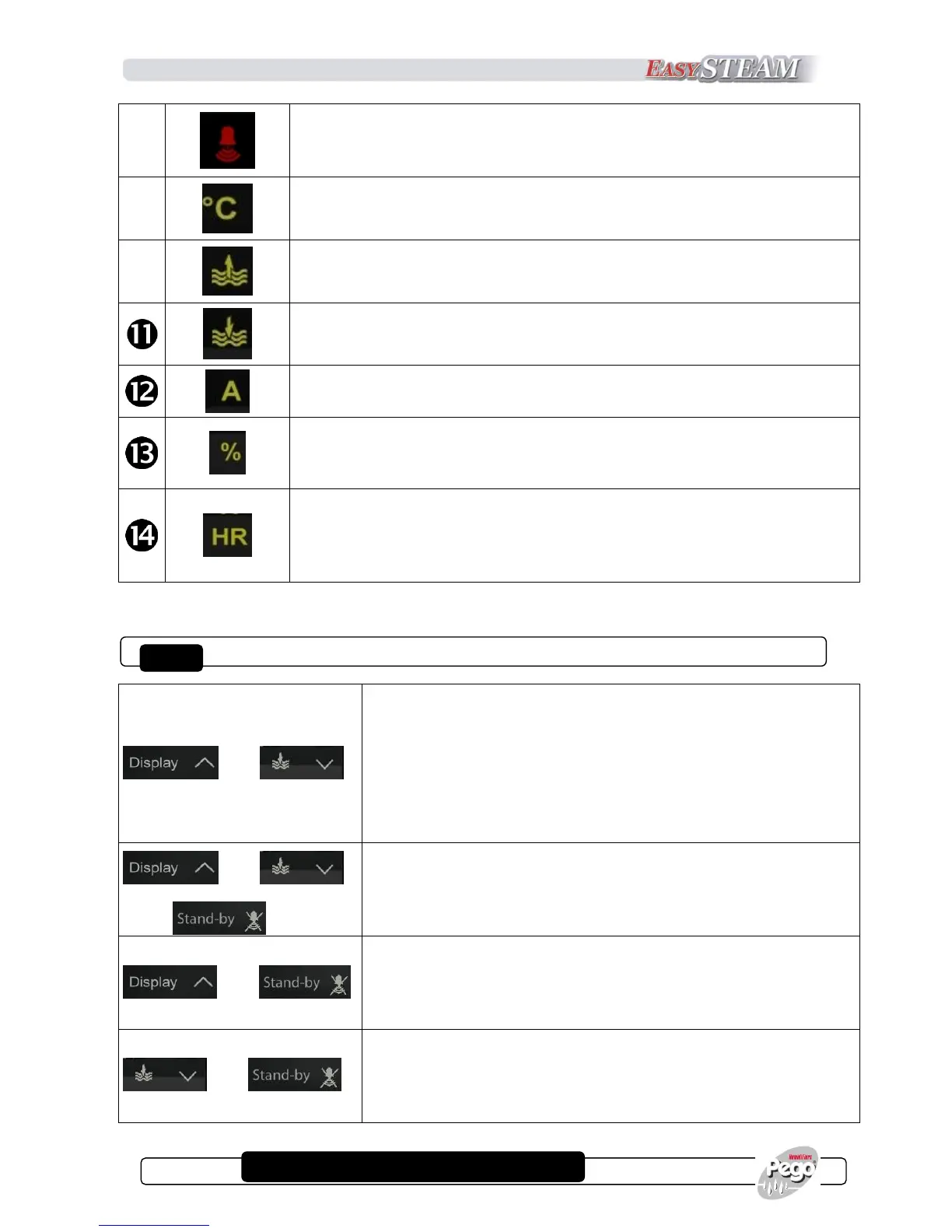

ALARM PRESENT ICON
LED OFF = No alarm present
LED ON = Maximum level alarm persistent for more than 1 hour
LED Flashing = Alarm present (or maximum level reached)

UNIT OF MEASURE IN TEMPERATURE ICON
LED ON = The display shows the temperature of the ambient probe °C
LED Flashing = The display shows the TEMPERATURE SET in °C

WATER CHARGE ICON
LED ON = Water charge in progress
WATER DISCHARGE ICON
LED ON = Water discharge in progress
LED Flashing= Water discharge test in progress
UNIT OF MEASURE IN CURRENT (A) ICON
LED ON = The display shows the instantaneous current absorbed in A by the
humidifier.
UNIT OF MEASURE OF THE STEAM OUTPUT % ICON
LED ON = The display shows the steam output percentage referred to nominal one
(Example: for an ES6 for 6 Kg/h steam output, 50% indicates the current output of 3
Kg/h.)
RELATIVE HUMIDITY UNIT OF MEASURE ICON.
THIS ICON LIGHTS UP TOGETHER WITH (13) AND THE DISPLAY SHOWS "%HR "
LED ON = The display shows the relative humidity percentage of the connected probe
LED Flashing = The display shows the percentage relative humidity SET (visible and
amendable by pressing the SET key)
COMBINATION OF KEYS
+
1ST LEVEL PROGRAMMING
If pressed simultaneously for more than 3 sec. they enable access to first
level programming menu.
A confirmation BEEP is emitted upon access to menu.
EXIT FROM PROGRAMMING
If pressed simultaneously for more than 3 sec. within any programming
menu, they save the settings made exiting the same menu.
A confirmation BEEP is emitted upon exit from menu.
+
+
2ND LEVEL PROGRAMMING
If pressed simultaneously for more than 3 sec., they enable access to
second level programming menu.
A confirmation BEEP is emitted upon access to menu.
+
ESSENCE SUPPLY STATUS CHANGE-OVER
(function active only if s9=7 and dO4 or dO5=3)
If pressed simultaneously for more than 3 sec., the current status is
displayed (EoF=essence OFF or Eon=essence ON) and by pressing them
for a further three seconds, the status change-over is had.
+
DRYING ACTIVATION
(function active only if s9=7 and dO4 or dO5=-3 and stand-by active)
If pressed simultaneously for more than 3 sec. the drying cycle is activated
signalled by the writing on display Uon = outlet fans ON.
To interrupt this cycle exit stand-by.
