Pego ECP200 BASE 4A - Appendices; Wiring Diagrams

E. BOARD ECP200 BASE 4/4A
Page 15
USE MANUAL
Rev. 02-18
A.2

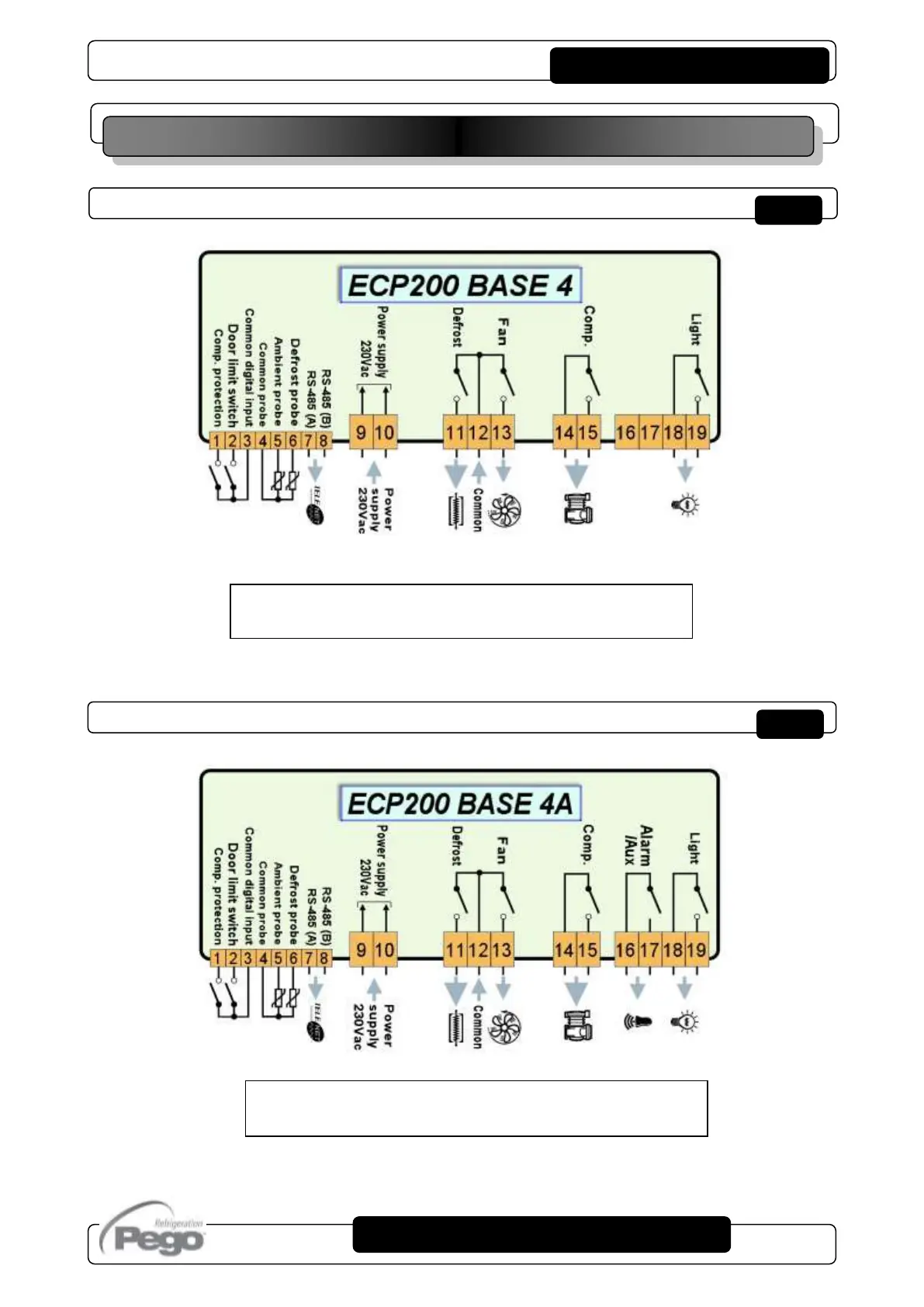

ECP200 BASE4 WIRING DIAGRAM
ECP200 BASE4A WIRING DIAGRAM
CAP. 6 - Diagnostica
Appendices
APPENDICES
A.1
Allegati / Appendices
Voltage free contact
Voltage free contact
