TeleNET MONITORING/SUPERVISION SYSTEM

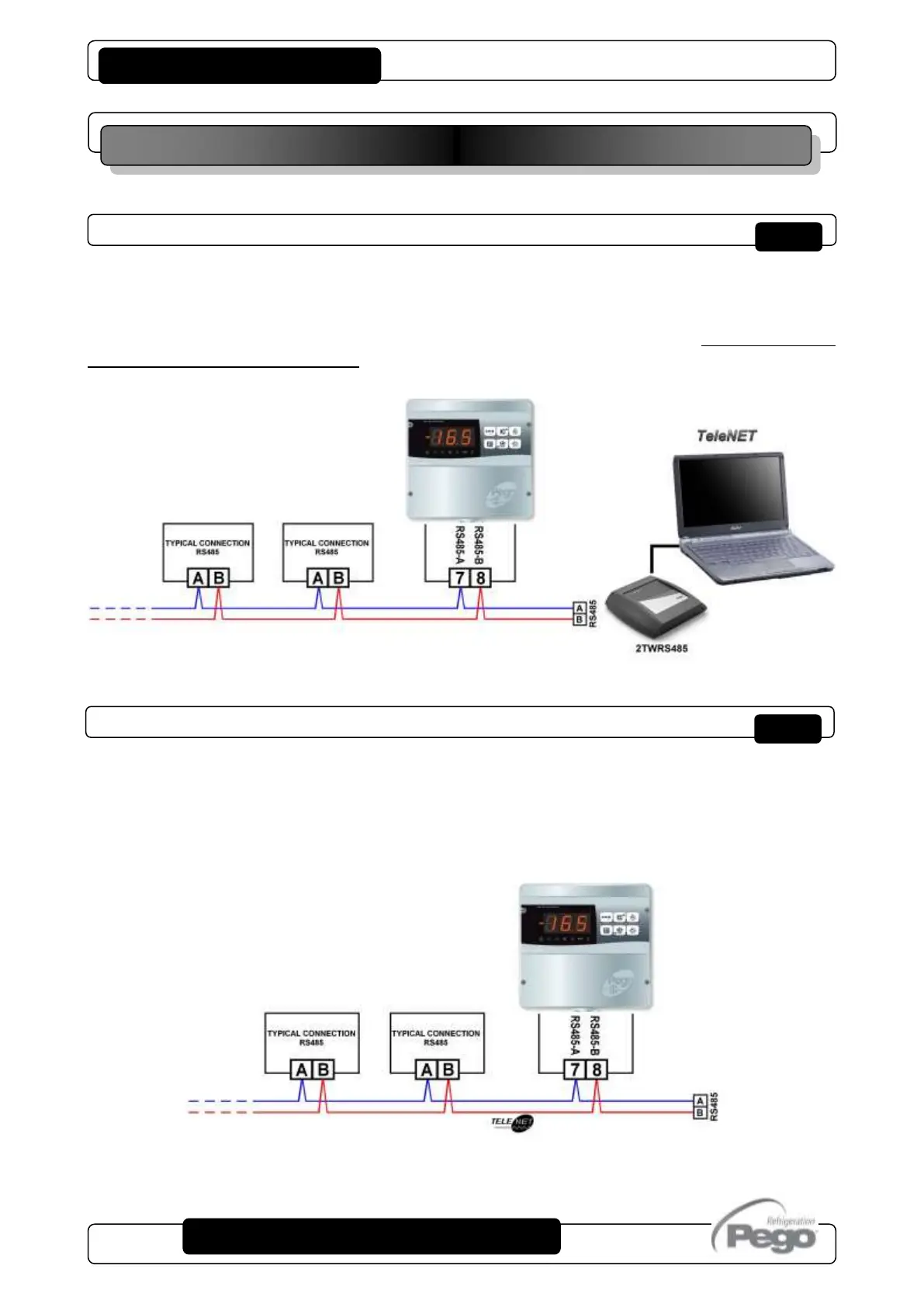

For TeleNET connections to enable RS485 as indicated at chapter 3.3 and follow the
scheme below. Refer to TeleNET user manual for instrument configuration.
WARNING: During configuration, at entry “Module” to select the entry "Instrument ECP
Base Series / ECP Expert Series ".
NET CONFIGURATION WITH MODBUS-RTU PROTOCOL
For RS485 connections with Modbus-RTU protocol, to enable RS485 output as indicated
at chapter 3.3 and follow the scheme below.
Refer to MODBUS-RTU_ECP200T1 user manual (available on Pego Internet web site) for
MODBUS-RTU communication protocol specification.
CHAPTER 3: OPTIONS
CHAP. 3 - Options
