Peiying PY0102 - Pneumatic Door Lock; Remote Control Operations

EN
User’s manual
12
Pneumatic door lock

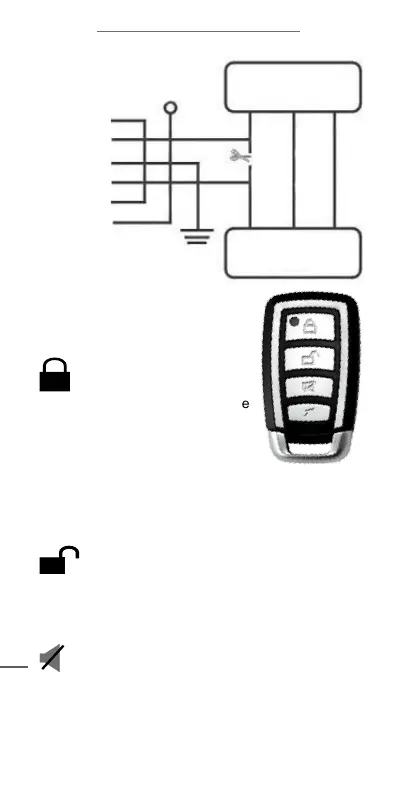

REMOTE CONTROL
• Press once to lock doors - the
turn lights gleam once and the
siren chips once
• If connected to power
window closer output, the
windows will roll up automatically
• When locked, press and hold for about 3
seconds to locate the vehicle - the turn lights
gleam 3 times and the siren chips 3 times
• Press once to unlock doors - the directional
lights gleam twice and the siren chips twice
• When unlocked, press and hold for about 3
seconds to release the trunk
• Press once to lock doors - the directional lights
gleam once the siren DOES NOT chip
Pneumatic lock
green/blue main
brown negative
red/blue positive
Door lock switch
orange
white
yellow
orange/black
white/black
yellow/black
