Pelican TC2 - Conventional Heating and Cooling Systems (2 Speed Fan)

9

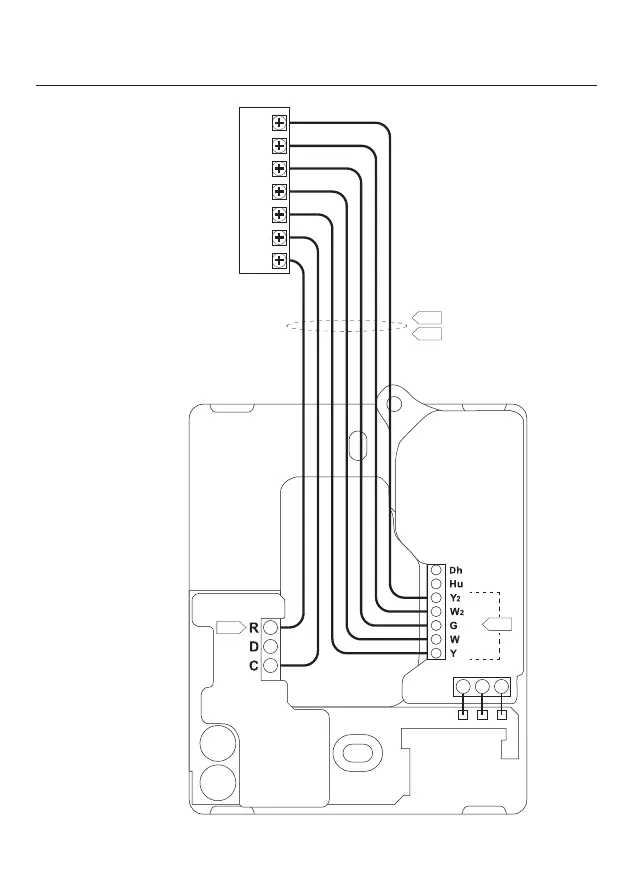

Conventional Heating and Cooling Systems
(Up to 1 stages cool, 2 stages heat, and 2 speed fan)
G2
W2
G
W
Y
C
R
High Speed Supply Fan
2nd Stage Heating
Low Speed Supply Fan
1st Stage Heating
1st Stage Cooling
24 VAC Common
24 VAC Power
Notes can be found on page 17.
