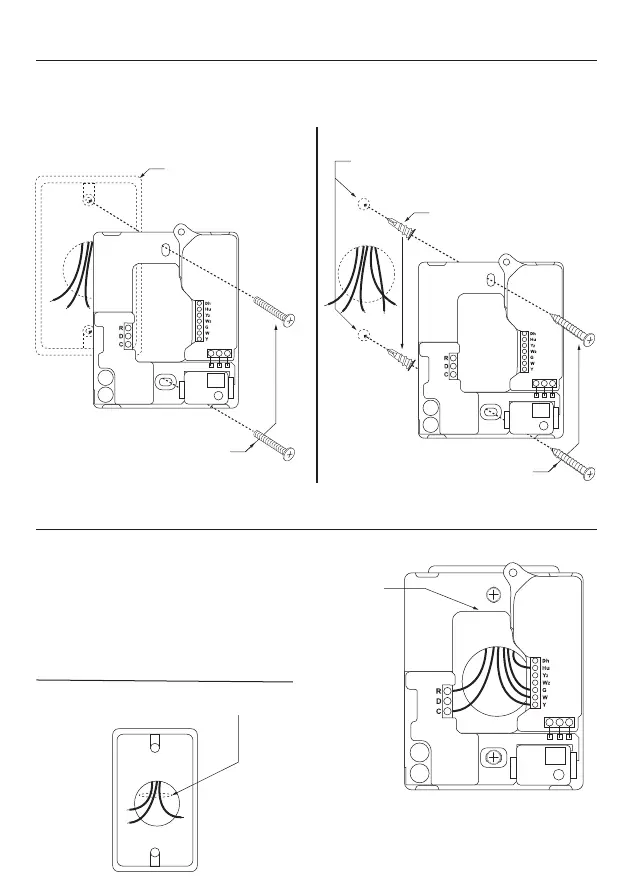

Install the thermostat back plate
Feed thermostat wire
through opening on back
plate.
Limited Wires? No Common Wire?
Follow pages 4 - 5 for limited wire instructions.
Follow pages 8 – 16 for common
thermostat wiring guides.
Connect wires to thermostat
wall installation
Use provided machine screws.
Drill two 3/16" holes (if using drywall
anchors).
Install provided drywall
anchors (if required).
Use provided sheet metal screws.
electrical box installation
Vertical electrical
box.
3
Use the included screws to attach the thermostat to the
wall following one of the examples below:
