TS200 Mounting and Assembly
1

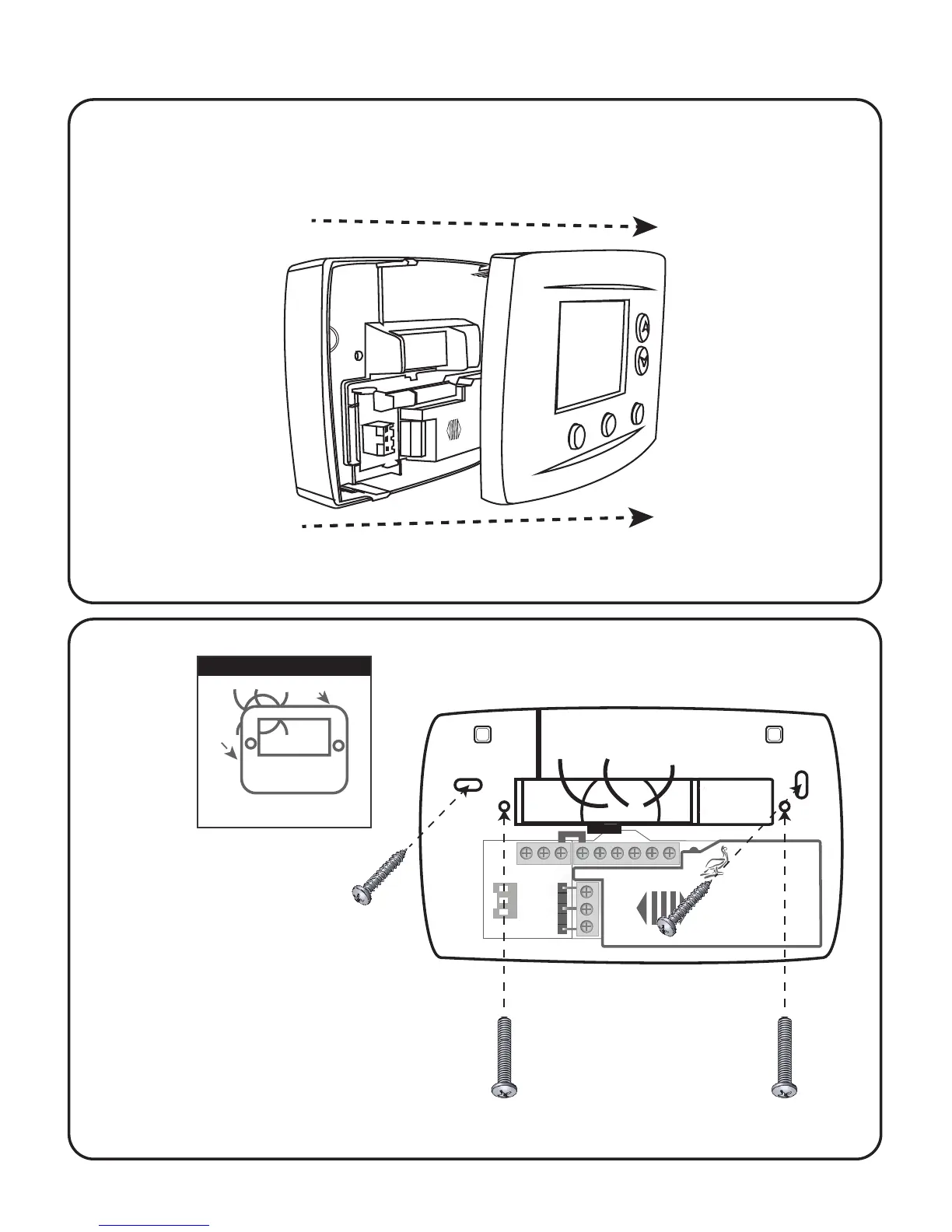

Mount thermostat rear cover to the wall.
2
2
Old thermostat
Remove old thermostat
Option One:
Mark mounting holes
drill two 3/16” holes in
wall. Insert drywall anchors
and use provided sheet metal
screws to attach rear
cover to wall.
Rc
CD R
R
C
D
Y W G W Y2 2
Pelican
Wireless Systems
Wiring Module
Model: WM500
Power: 24-30 VAC
PelicanWireless.com
Grasp front and back of thermostat and firmly pull apart.
Option Two:
Mount rear cover on
horizontal two gang
electrical box. Use
included machine
screws.
