Pelican TS200 - Conventional Wiring Guide: 1 Stage Cooling, 2 Stage Heat; 6-Wire Conventional Wiring (2 Stage Heat)

5

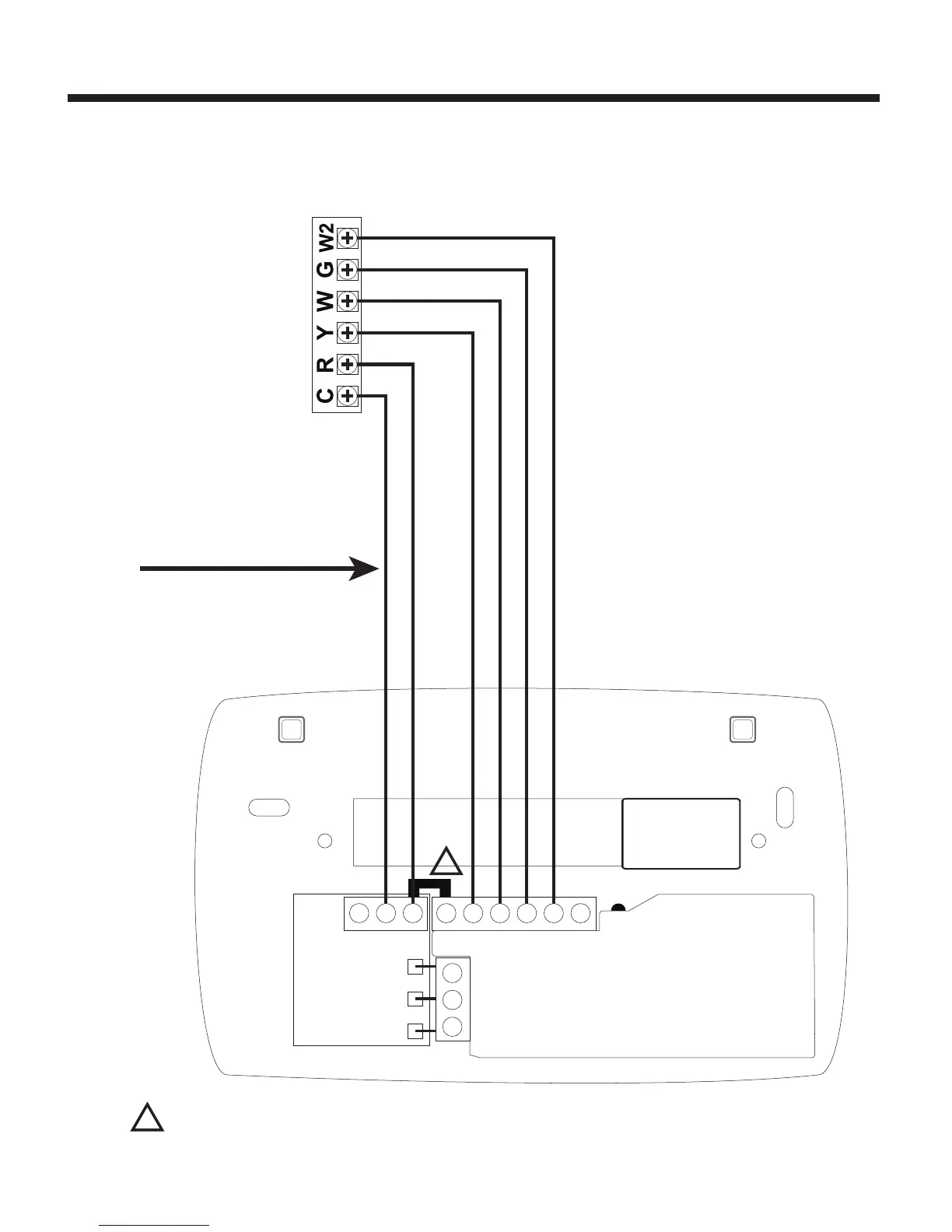

6 Wire, 24VAC Conventional 1 stage cooling with
2 stage heat
CD R Rc Y W G W2 Y2
2nd Stage Heat Circuit
Fan Circuit
1st Stage Heat Circuit
Compressor Relay
24 VAC Power
24 VAC Common
1
Conventional Wiring Guide
Use 18 gauge unshielded
cable from thermostat to
the equipment.
1
For a Two Transformer System – remove jumper between R and Rc.
Connect the 24VAC power for energizing the unit’s Compressor to
thermostat’s (R) terminal. Connect second 24VAC power to
thermostat’s (Rc) terminal.
