ASSEMBLY
ASSEMBLY CONTINUED

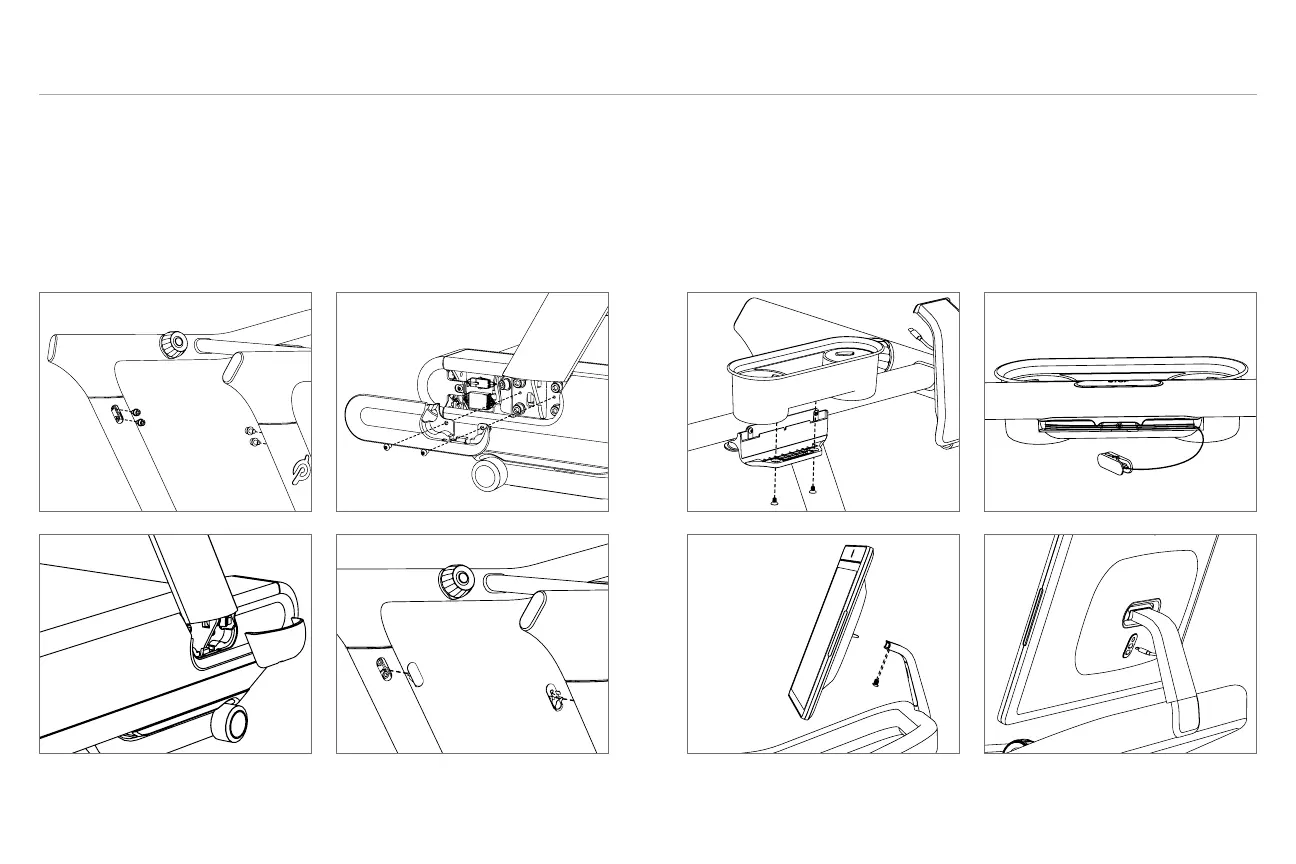

5 Add handrail screws. Torque screws to
35 lb-ft/47 N•m
6 Torque upright screws to
35 lb-ft/47 N•m
7 Attach upright bolt covers
8 Snap on upright caps
9 Add handrail bolt covers
5
8 9
7 10 11
1412
10 Attach tray
11 Install safety key
12 Add touchscreen
13 Torque screws to 7 lb-ft/9 N•m
14 Plug in power/data cable
15 Plug in and power on
16 The Home Installer App will
run automatically and perform
speed and incline calibration
