Pelton & Crane Spirit 1700 SII User Manual

16
P/N: 064577 Rev. 01, 12/09/19
Model: SVU2
Flow
Inc.
TV2
(D)
TV4
(D)
CV1
A
CV2
B
TV1
(U)
TV3
(U)
Dec.

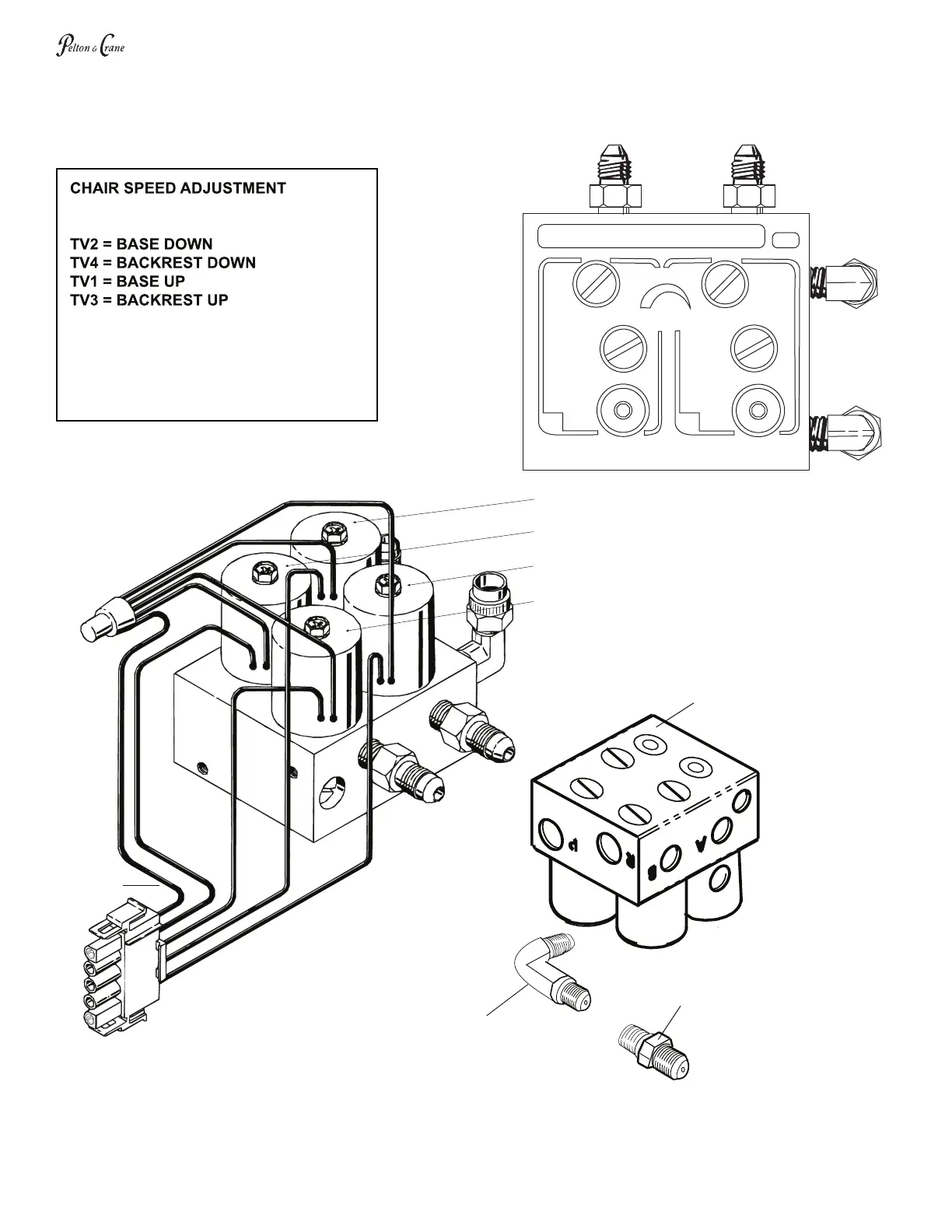

HYDRAULIC CONTROL VALVE
OLD P/N: 82R397
SAP P/N: 0.847.2660
ADJUST SCREWS SHOWN TO THE
RIGHT:
TO INCREASE SPEED TURN
ADJUSTMENT SCREW
COUNTERCLOCKWISE.
TO DECREASE SPEED TURN
ADJUSTMENT SCREW CLOCKWISE.
Wire #4, Back Up, TV3
Wire #2, Back Up, TV1
Wire #5, Back Up, TV4
Wire #3, Back Up, TV2
Control Valve
(Fittings Supplied Separately)
Old P/N: 042891
SAP P/N: 0.841.4537
Elbow Fitting
7/16”-20 X 1/8”
Old P/N: 003R047
SAP P/N: 0.840.0931
Straight Fitting - 3/8”
Old P/N: 003R048
SAP P/N: 0.840.0932
Common
#1
#2
#3
#4
#5
