Pelton & Crane Spirit 1700 SII User Manual

4
P/N: 064577 Rev. 01, 12/09/19
8
7
4
6
1
9
5
3
2
10
11
12

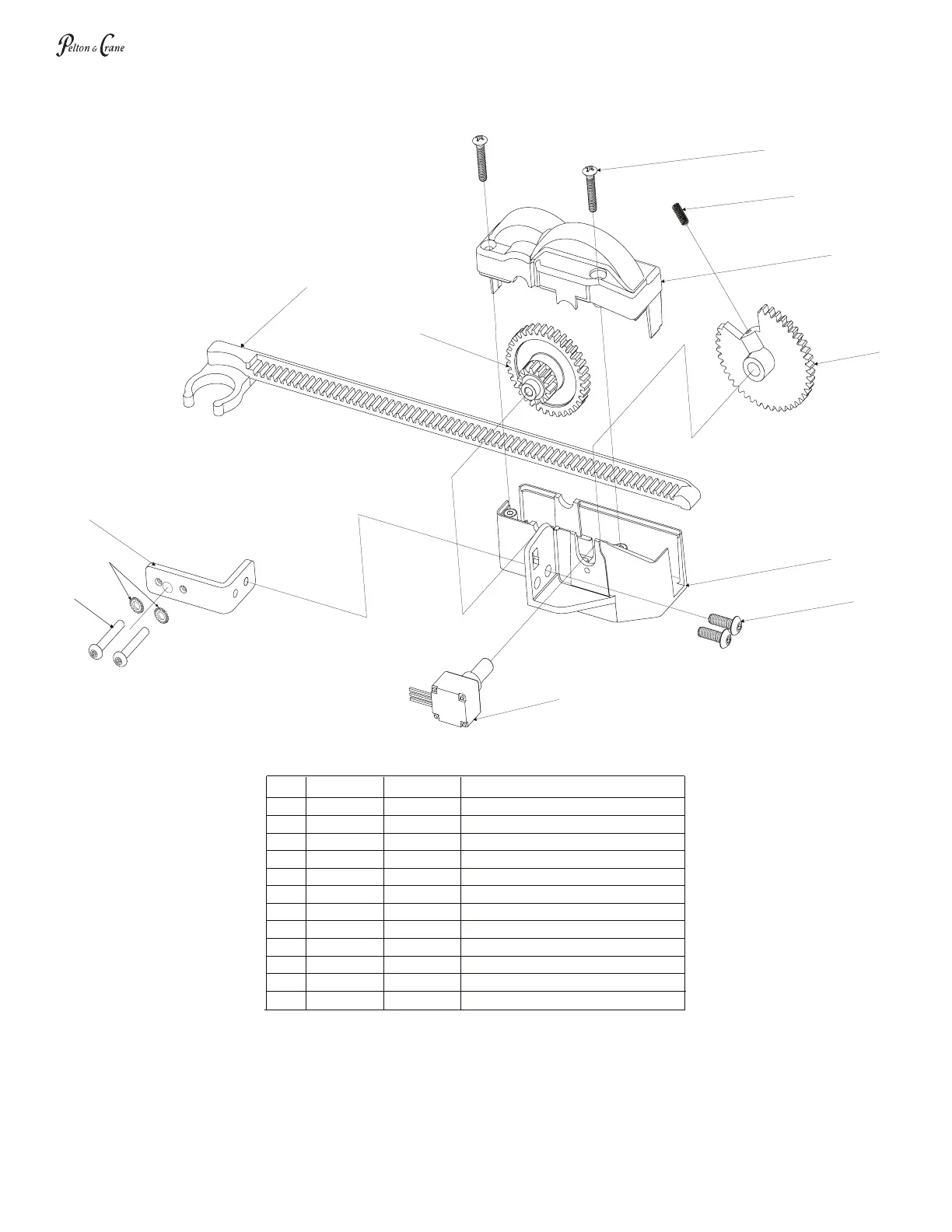

UPPER POTENTIOMETER ASSEMBLY
OLD P/N: 061718
SAP P/N: 0.848.4541
1
2
3
4
5
6
7
8
9
10
11
12
061717
060816
061719
060815
015R017
83R593
022R007
090642
061720
008R160
13080
0.846.9847
0.843.6013
0.846.9849
0.843.6012
0.840.0001
0.847.3780
0.840.7674
0.843.9169
0.846.9850
0.840.3211
0.844.3690 Scr, BH, Soc 6-32 X 7/8” SST
1.013.1484 # Ext L/W Black Oxide
Scr, BH, Soc 8-32 X 1/2” SST
Support Plate, Marus Potentiometer
Scr, OH Phil, 6-32 X 3/4”, SST
Scr, Set, CP, 6-32 X 3/8”, SST
Gear, Upper Pot Schein
Potentiometer 10K
Cover - Upper Potentiometer
Marus Gear Rack - Upper Potentiometer
Pinion Gear, Potentiometer
Marus Pot Housing, Potentiometer
Ref # Old Part # SAP Part # Description
—

Pelton & Crane Spirit 1700 SII Specifications

General

Brand	Pelton & Crane
Model	Spirit 1700 SII
Category	Dental equipment
Language	English
