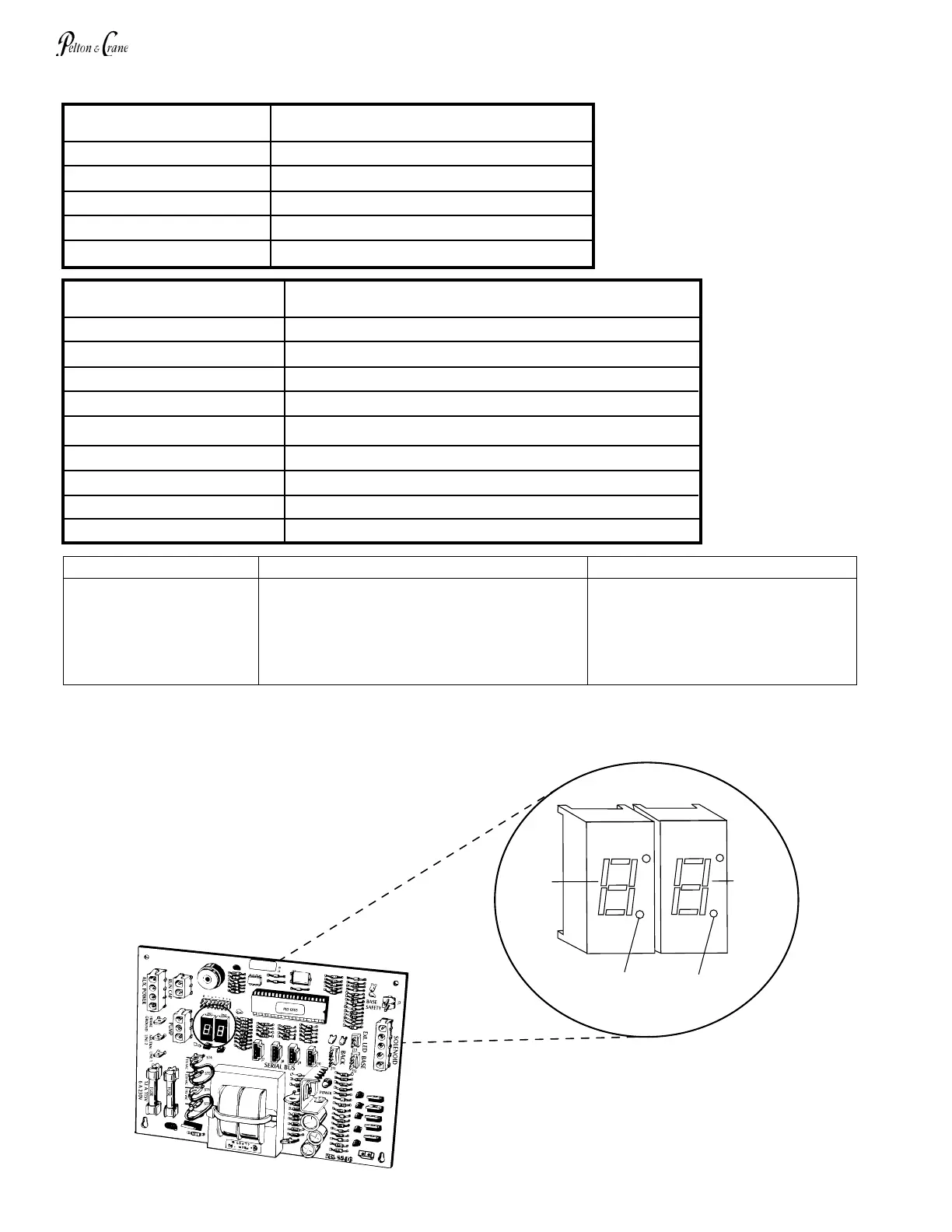

DENTAL CHAIR DIAGNOSTIC CODES
DIAGNOSTIC DISPLAY OPERATING STATUS CORRECTIVE ACTION
Potentiometer value too low
Potentiometer value too high
Main control board failure (replace)
Error is for base potentiometer
Error is for back rest potentiometer
Calibrate potentiometer
Calibrate potentiometer
Replace board
Examine potentiometer
Examine potentiometer
(Flashing)
INPUT
STATUS
DIGIT
OUTPUT
STATUS
DIGIT
LEFT
DECIMAL
POINT
RIGHT
DECIMAL
POINT
0 No Input
1 Foot switch Button Pressed
2 Touch Pad Button Pressed
3 Button on Both are Pressed
4 Loss of Input Signal
INPUT STATUS DIGIT
INPUT STATUS
0 No Motion
1 Backrest in Motion
2 Base in Motion
3 Both in Motion
4 Receiving Input to Move But No Motion is Detected
5 Backrest at Soft Limit
6 Base at Soft Limit
7 Both at Soft Limit
8 In Motion to Programmed Position
OUTPUT STATUS DIGIT
OUTPUT STATUS
Main Control Board Diagnostic Display
