Pelton & Crane Spirit 1800 Series User Manual

11
062044 R02

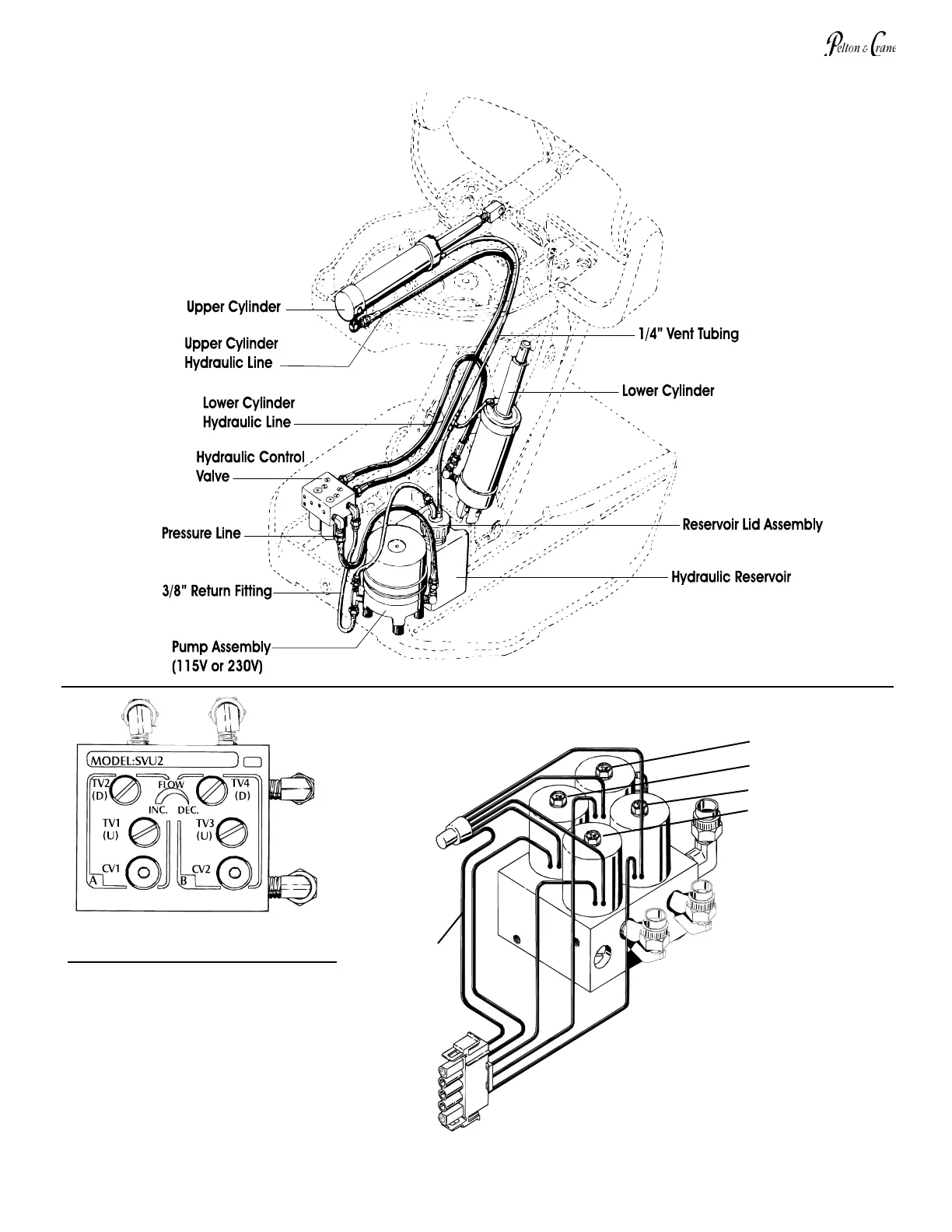

HYDRAULIC CONTROL VALVE
CHAIR SPEED ADJUSTMENTS
Adjust screws shown to the right:
TV2 = Base Down
TV4 = Backrest Down
TV1 = Base Up
TV3 = Backrest Up
To increase speed, turn adjustment
screws counterclockwise. To decrease
speed turn adjustment screws clockwise.
Wire #4, Back up, TV3
Wire #2, Base up, TV1
Wire #5, Back down, TV4
Wire #3, Base down, TV2
COMMON
#1
#2
#3
#4
#5
