Pendix eDrive Series - Overview of System Components; System Components

6

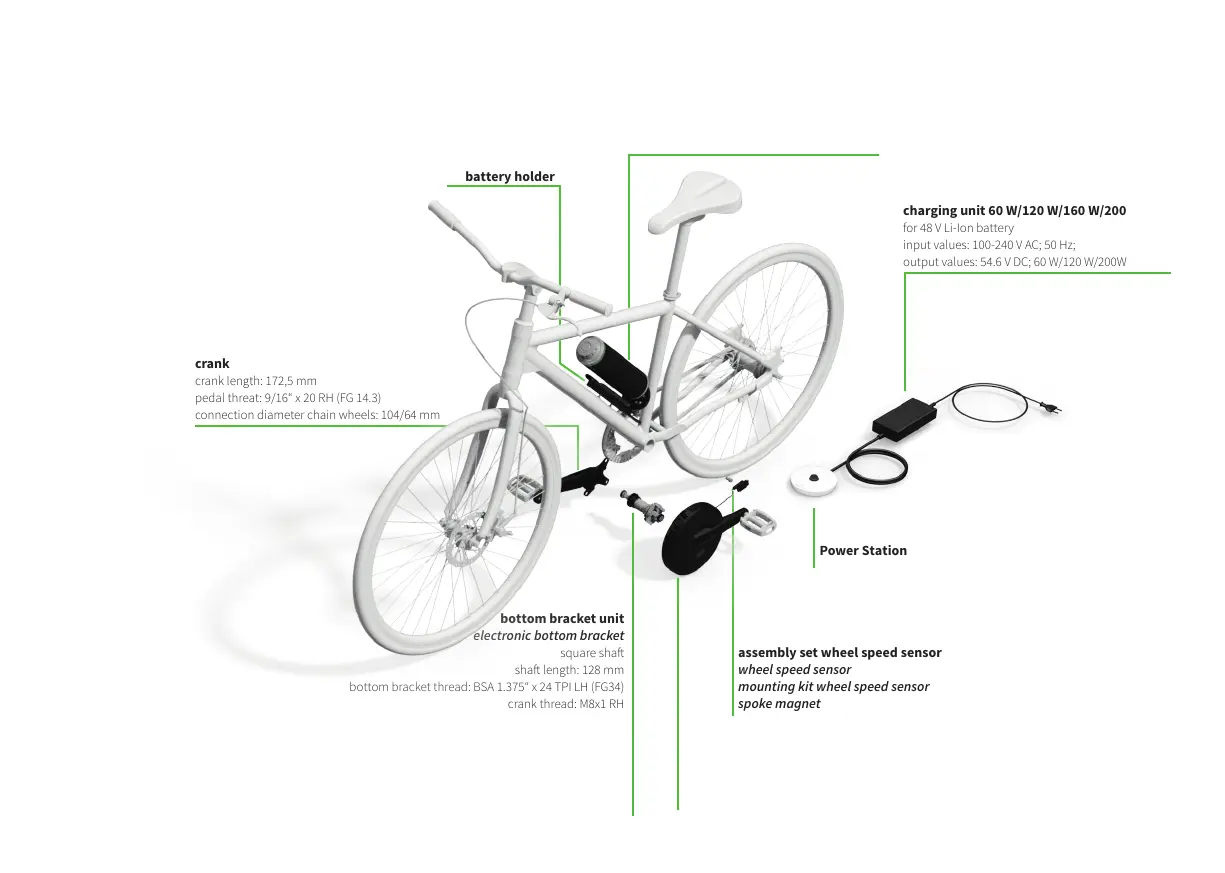

charging unit 60 W/120 W/160 W/200 W
for 48 V Li-Ion battery
input values: 100-240 V AC; 50 Hz;
output values: 54.6 V DC; 60 W/120 W/200W
eMachine
nominal power: 250 W
crank length: 172.5 mm
pedal thread: 9/16“ x 20 LH (FG 14.3)
crank
crank length: 172,5 mm
pedal threat: 9/16“ x 20 RH (FG 14.3)
connection diameter chain wheels: 104/64 mm
assembly set wheel speed sensor
wheel speed sensor
mounting kit wheel speed sensor
spoke magnet
bottom bracket unit
electronic bottom bracket
square sha
sha length: 128 mm
bottom bracket thread: BSA 1.375“ x 24 TPI LH (FG34)
crank thread: M8x1 RH
electronic bottom bracket fitting unit
bottom bracket thread: BSA 1.375“ x 24 TPI RH (FG34)
spacer ring electronic bottom bracket
lock washer
crank screw
screwed bushing aluminium
Power Station
battery holder
ePower 150/300/500
13S1P Li-Ion/13S2P Li-Ion/13S3P Li-Ion battery
voltage: 48 V
capacity: 140 Wh/330 Wh/497 Wh
5. Overview components
