V46 Series 2-Way Pressure-Actuated Water-Regulating Valves With Union Fittings Installation Instructions 3
• Avoid Contact Between the Capillary Tubing
and Sharp or Abrasive Objects
Vibration or rubbing of sharp or abrasive objects in
contact with capillary tubes can cause leaks.
• Coil and Secure Excess Capillary Tubing Away
from Contact with Sharp or Abrasive Objects
or Surfaces
Carefully loop any excess capillary tube into
smooth, circular coils (minimum 2 in. [5 cm]
diameter). Securely fasten the coiled capillary
tube.
• Do Not Overtighten Flare Nuts on Pressure
Connection Line Fittings
Overtightening flare connections may damage the
threads and result in refrigerant leaks. Do not
exceed 9 lb⋅ft (12 N⋅m) of torque when tightening
brass flare connections.
• Avoid Severe Pressure Pulsation at Pressure
Tap Points
Install pressure connection lines to pressure tap
points away from the compressor discharge, to
minimize the affects of pressure pulsation from
reciprocating compressors.
Table 2: Specifications for V46 Series Valves with Union Fittings
Product
Code
Number
Nominal
Valve
Size
Maximum
Refrigerant
Pressure at
Bellows
Opening Point Adjustment
Range
Factory-Set Opening
Point
Pressure
Connection
Style
V46AJ-2C 1/2 in. 320 psi (2206 kPa) 70 to 260 psi (483 to 1793 kPa) 105 psi (724 kPa) 45
V46EK-2C 3/4 in. 370 psi (2551 kPa) 46
V46AL-2C 1 in. 320 psi (2206 kPa)
V46AM-2C 1-1/4 in.
Copper Capillary with
1/4-in. SAE Female Flare Connector
(Includes Valve Stem Depressor)
Copper Capillary with
1/4-in. SAE Female Flare Connector
(Includes Valve Stem Depressor)
Style 45 Style 46

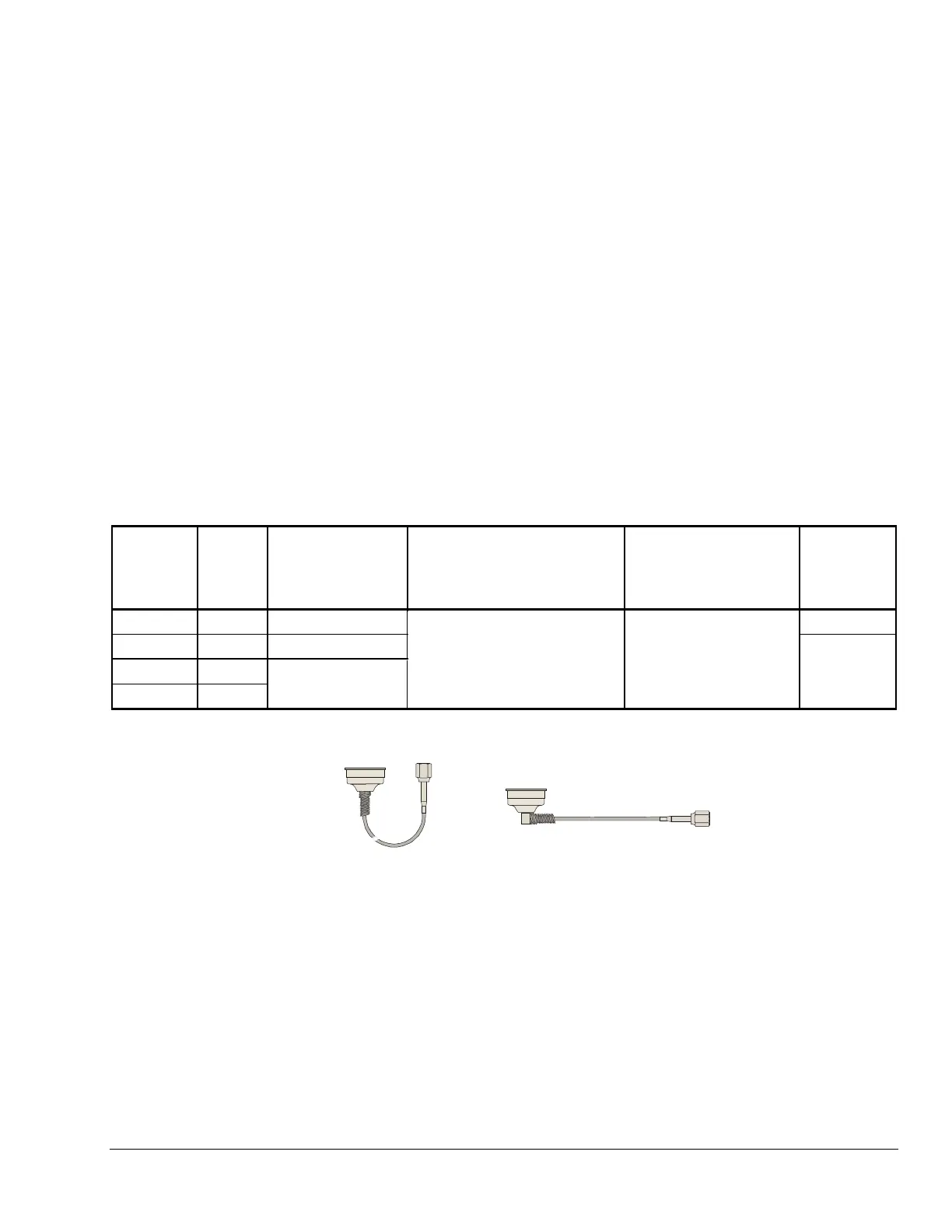

Figure 3: Pressure Connection StylesV46_connectors

Penn V46 Series Specifications
