Pentair EasyTouch - Installing the IntelliCenter Outdoor Control Panel; Connecting Motherboard and Securing the Panel

8
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Upgrade Kits Installation Guide
System
Transformer
(4 screws
provided in kit)

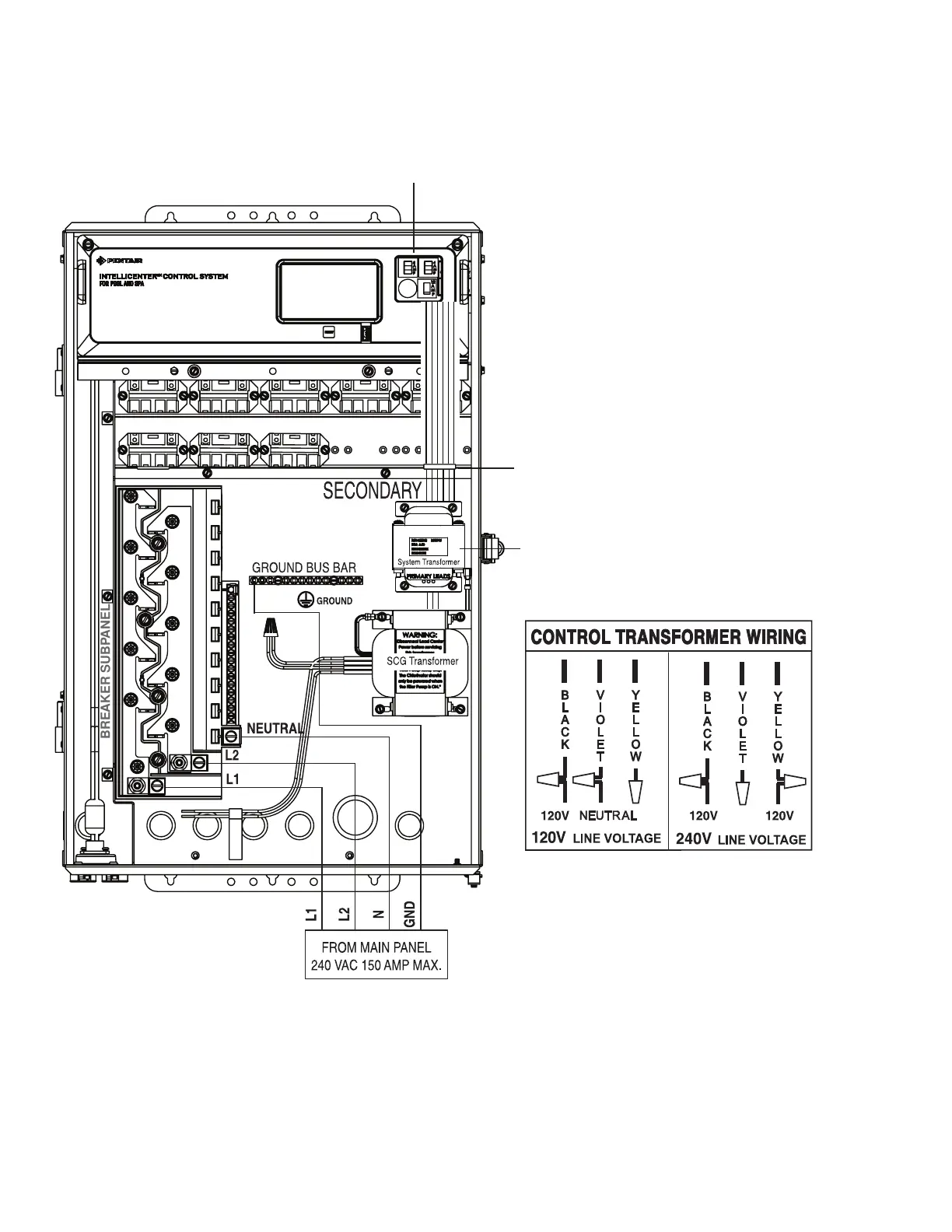

Figure 6. Wiring the System Transformer (Load Center or Power Center 2012 or later)
Route transformer
secondary wires up
through channel opening
to circuit breakers
4. Reconnect 120 VAC Transformer Wires: Reconnect the System Transformer wires (see
wiring diagram below) to the Load Center (or Power Center) circuit breaker.
INPUT
INPUT
BREAKER SUBPANEL
BONDING LUG
Circuit Breakers
IntelliCenter Control System 120VAC
and 240VAC Transformer Wiring
