PANEL SUPPORT, 2” PIPE
RED ALARM LIGHT
CONTROL PANEL
2” CONDUIT REQ’D.
36” BASIN COVER W/HINGED HATCH &
P’LOCK HASP.
1
/
4
” EPOXY COATED STEEL FLOOR PLATE
JUNCTION BOX
STRUCTURAL PLASTIC
VALVE EXTENSION HANDLE
SST FASTENERS
FOAM SEAL TAPE
RAIL MTG. FLANGE
EPOXY COATED STEEL
AS REQ’D.
RISE, 1
1
/
4
” PIPE, PVC
L/O CHAIN, GALV.
RAILS, 1” PIPE
PULTRUDED F. G.
1’” GALV. OVER 96” BASIN DEPTH
1
1
/
4
” BALL VALVE
TRUE UNION, FULLY
BLOCKED TYPE PVC
1
1
/
4
” SLIP SOCKET DISCHARGE
FLANGE, STRUCT. PLASTIC
HIGH WATER ALARM LEVEL
LAG PUMP ON LEVEL
LEAD PUMP ON LEVEL
DISCHARGE, 1
1
/
4
” PIPE, PVC SCHED. 80
PUMPS OFF LEVEL
DISCHARGE CASE
STRUCT. PLASTIC
REINF. CONCRETE ANTIFLOTATION BASE REQ’D.
5 CU. FT. FOR EACH FOOT OF BASIN DEPTH
SWING CHECK VALVE (C.I.) &
DISCONNECT (C.I.) ASS’Y.
WG/WGL20 PUMPS
2HP ______V _____
ø
AS REQ’D.
AS REQ’D.
FIBERGLASS REINF. POLYESTER
RESIN, SURFACES GELCOATED TO
SEAL FIBERS,
1
/
4
” MIN. WALLL THICKNESS
120 PSF LOAD RATING AT S.F. 2
HOLD-DOWN PLATES
STRUCT. PLASTIC.
INLET INVERT LEVEL
ADAPTAFLEX INLET FTG.
FIELD INSTALLED
SPECIFY PIPE SIZE & TYPE
GUIDE PLATE
STRUCT. PLASTIC
RAIL SUPPORT
STRUCT. PLASTIC
1
1
/
4
” ANTISIPHON VALVE, PVC
(IF REQ’D.)
CONTROL MTG. DRKT. SST
ANCHOR & DISCH. CASE
MTG. PLATES BONDED
IN BASIN BOTTOM
8
1
/
8
”
8
1
/
8
”
13800A862 11/06/12
6

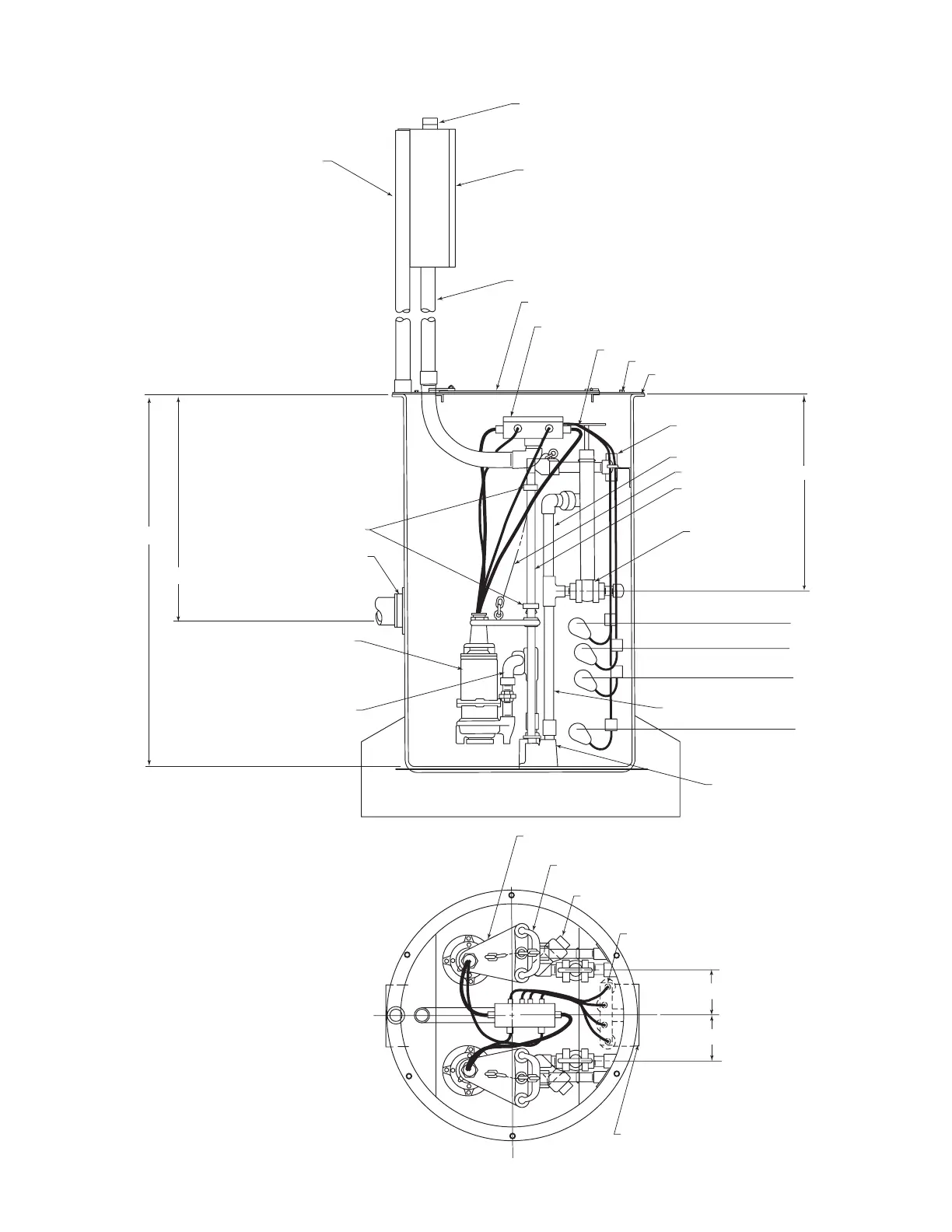

MYERS DUPLEX LIFT-OUT RAIL SYSTEM IN 36" OR 48" FIBERGLASS BASIN
