Pentair Pentek Intellidrive User Manual

Description 4
Specifications/Ratings
Input Voltage .............1-Phase 230VAC Nominal (190–265VAC)
Input Frequency ........................................................... 50/60Hz
Ambient Temperate Range ................................. -20° to 50 °C
Output Connections ......................... 3-Phase, 3-wire, 220V,
.....................................................................3-Wire/1-Phase
..................................................................... 1-Phase/2-wire
Max Motor Cable Length...................................................305m
Enclosure .............................................................................. 3R
Table 1 - Specifications
Model
Max
kW
Input
Phase
Motor
Operation
Max
Amps
PID20 1.5
1
2-wire, 3-wire &
3-phase
13.5
The PENTEK INTELLIDRIVE is specifically
designed to operate 4” submersible pumps and
3-phase, 220V above ground pumps in water well
and residential booster applications. Each Drive is
rated for maximum output amp rating. Any use of
Drive outside of intended design parameters will
void warranty. If Drive is used with above ground
motors not rated for a Variable Frequency Drive,
maximize motor life by limiting lead length to 8m.
Refer to pump Owners Manual and AS/NZS 3000
for proper wire size.
Each carton contains:
•
PENTEK INTELLIDRIVE Variable Frequency Drive
• Pressure Transducer
• 3m Pressure Transducer Cable
• Quick Start Guide
• Owner’s Manual

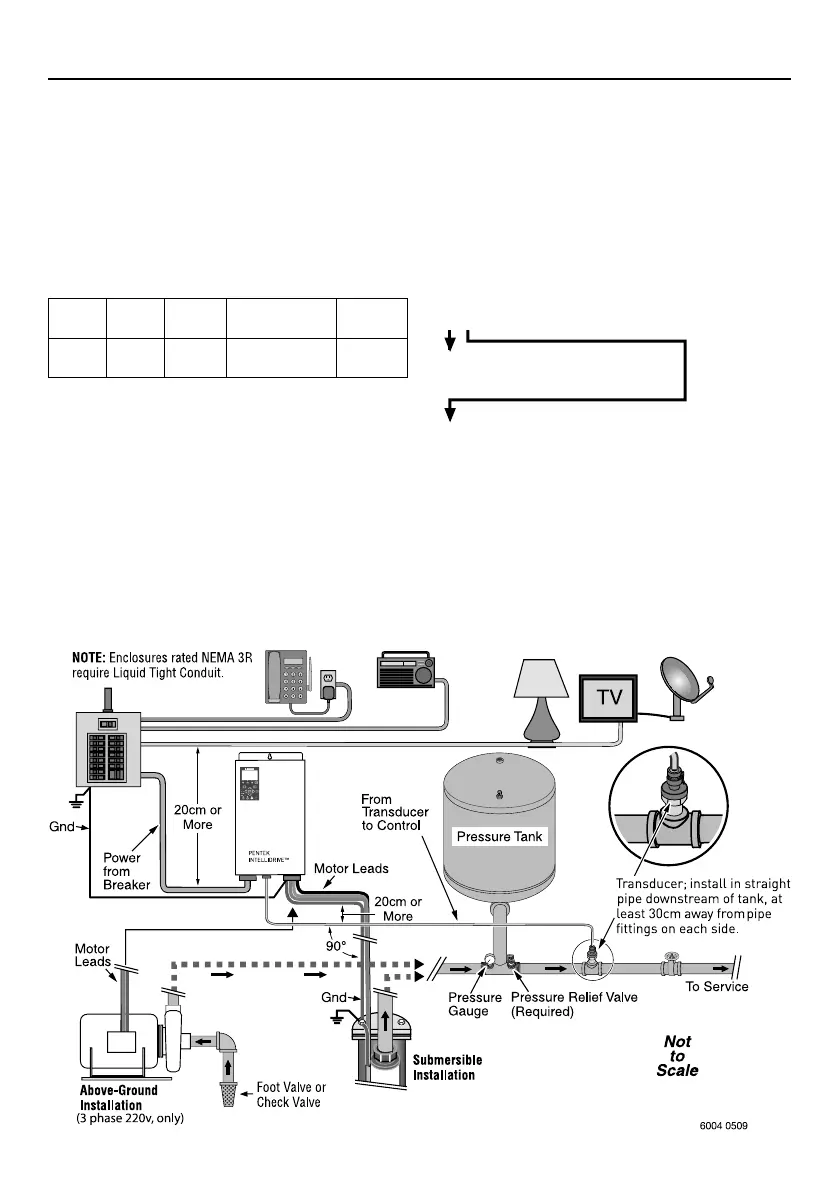

Figure 1 - A typical residential installation layout
PID2000 - 1 1 2 3
Product Family
PID - PENTEK INTELLIDRIVE
Voltage Rating:
1 = 190-265 Volt 1 phase input
Output voltage:
1 = 230v 1 phase output
HP Rating: Motor
Type:
2 = 2.0 HP 3 = 3-wire
PID_OM_2014.indd 4 24/02/2014 1:49:53 PM
