QUAD D.E.
®
Cartridge Style D.E. Filter Installation and User’s Guide
TECHNICAL DATA
QUAD D.E.
®
CARTRIDGE STYLE FILTER

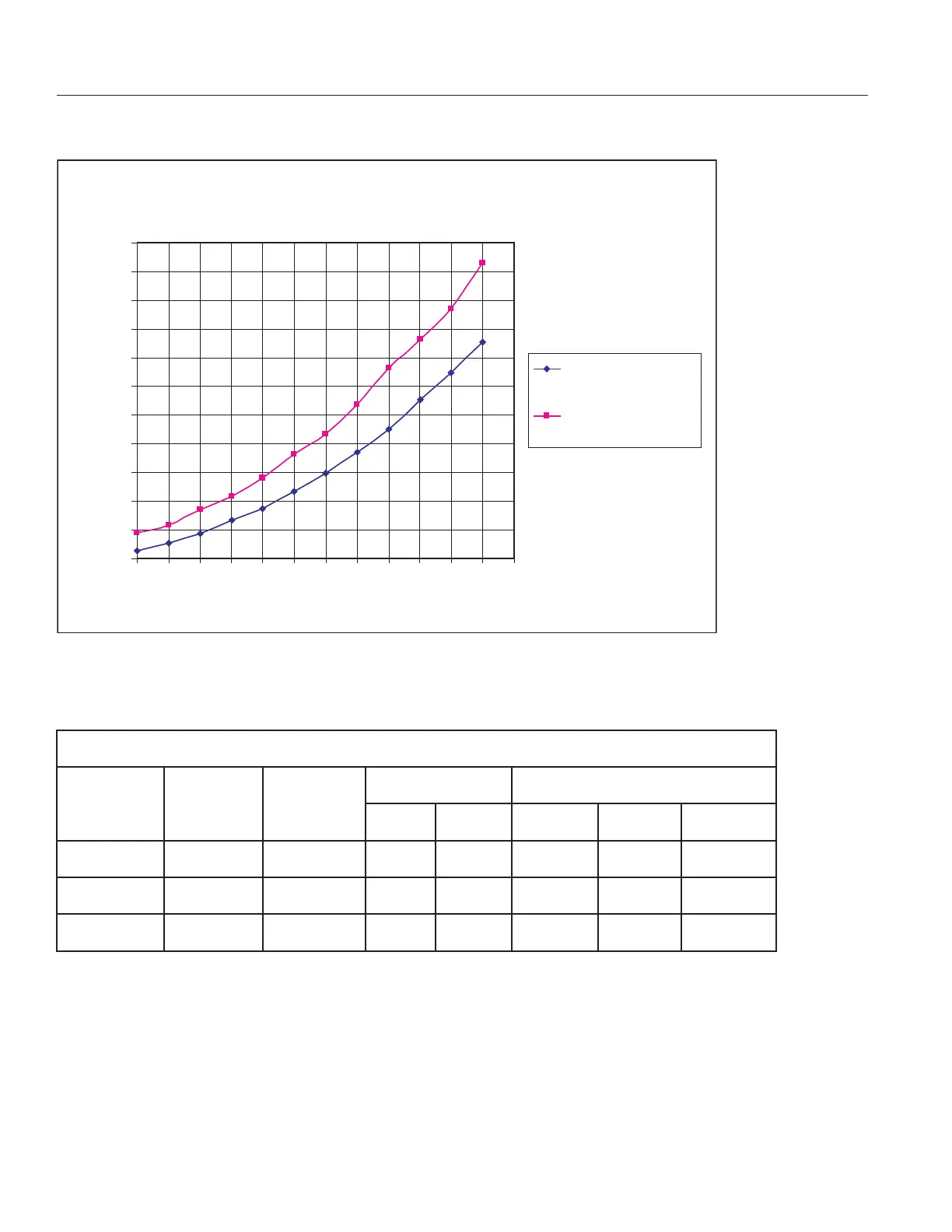

HEAD LOSS COMPARISON
0
1
2
3
4
5
6
7
8
9
10
11
20 30 40 50 60 70 80 90 100 110 120 130 140
FILTER FLOW RATE G.P.M.
FILTER PRESSURE LOSS P.S.I.
BEFORE
CLEANABILITY
AFTER
CLEANABILITY
Recommended Flow Rate
Model #
Filter Area
Sq. Ft.
Vertical*
Clearance
Flow Rate GPM Res. Turnover Capacity (Gallons)
Res.** Comm. 6 hours 8 hours 12 hours
Quad 60 60 62” 120 150 43,200 57,600 86,400
Quad 80 80 68” 160 150 57,600 76,800 115,200
Quad 100 100 74” 160 150 57,600 76,800 115,200
Flow Rates
NOTE: Actual system flow will depend on plumbing size and other system components.
* Required clearance to remove filter elements.
** Maximum flow rate.
Head Loss Curves
