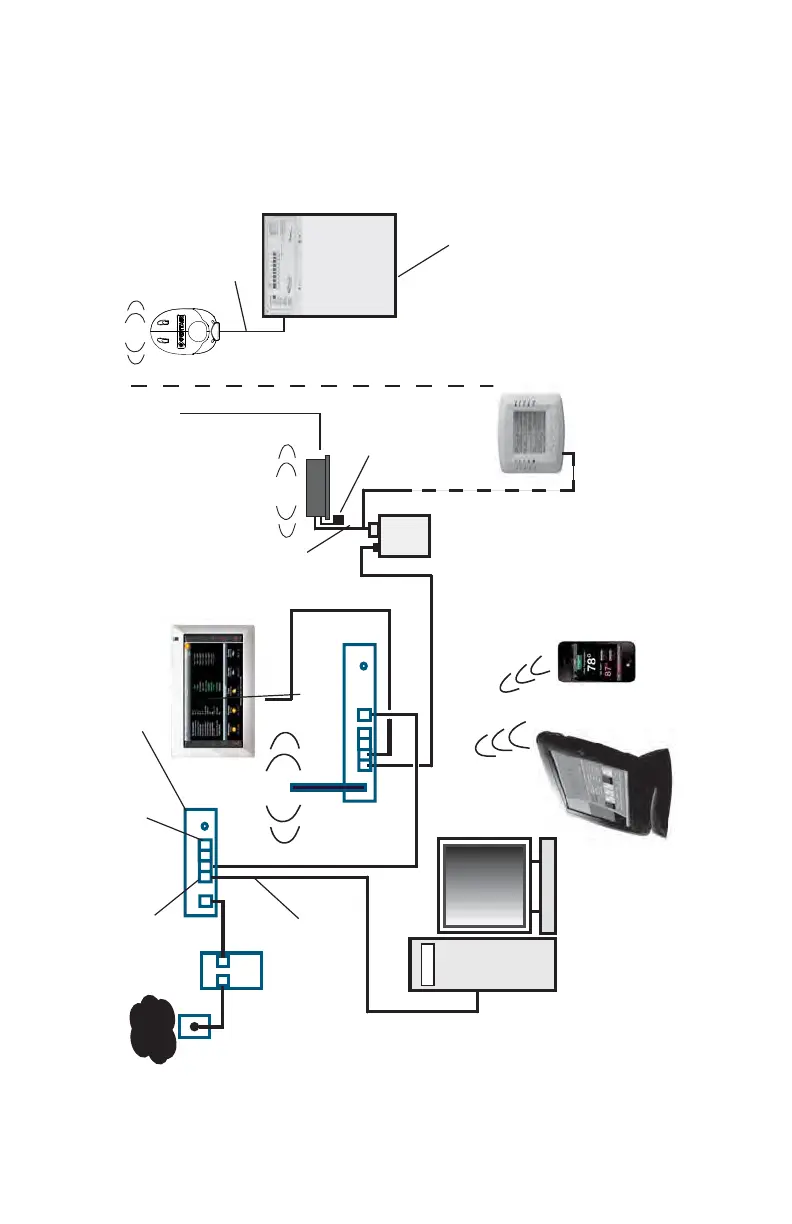

Pentair SCREENLOGIC - ScreenLogic Interface Connection Diagram

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
1
234
WAN
RJ11
RJ45
INTERNET
1
234
WAN
- LAN -
Wired or wireless router (mandatory)
RJ11 for DSL
Coax for Cable
In-wall Touch Screen
Outdoor Wireless transceiver connected to COM PORT on main circuit board via 10 ft. cable
Protocol Adapter
ScreenLogic
®
Interface Wireless router
Existing PC
Ethernet cable (RJ45 - CAT 5)
Ethernet cable
(RJ45 - CAT 5)
DSL or
Cable Modem
(RJ45)
Cable distance limits: - Ethernet cable distance limit = 300 feet - Four-wire cable distance limit = 1500 feet Note: (*) Optional wiring for existing Indoor Control Panel. Tap into the Indoor Control Panel connector or pig tail off the four-wire cable connected to the Control System Board.
Indoor Transceiver connected to ScreenLogic Interface Protocol adapter
EasyTouch
®
,
IntelliTouch
®
Control
Systems Load Center (Located outside at equipment pad)
3
4-wire one foot cable
AC power adapter
ScreenLogic
®
Interface Connection Diagram
IntelliTouch
®
or
EasyTouch
®
Indoor
Control Panel (*)
