Pentair SCREENLOGIC - Connect Outdoor Transceiver to Control System

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
5
Outdoor Wireless Transceiver
Case
Wireless transceiver
case retaining
screws (x2)
Back plate for
mounting circuit
board

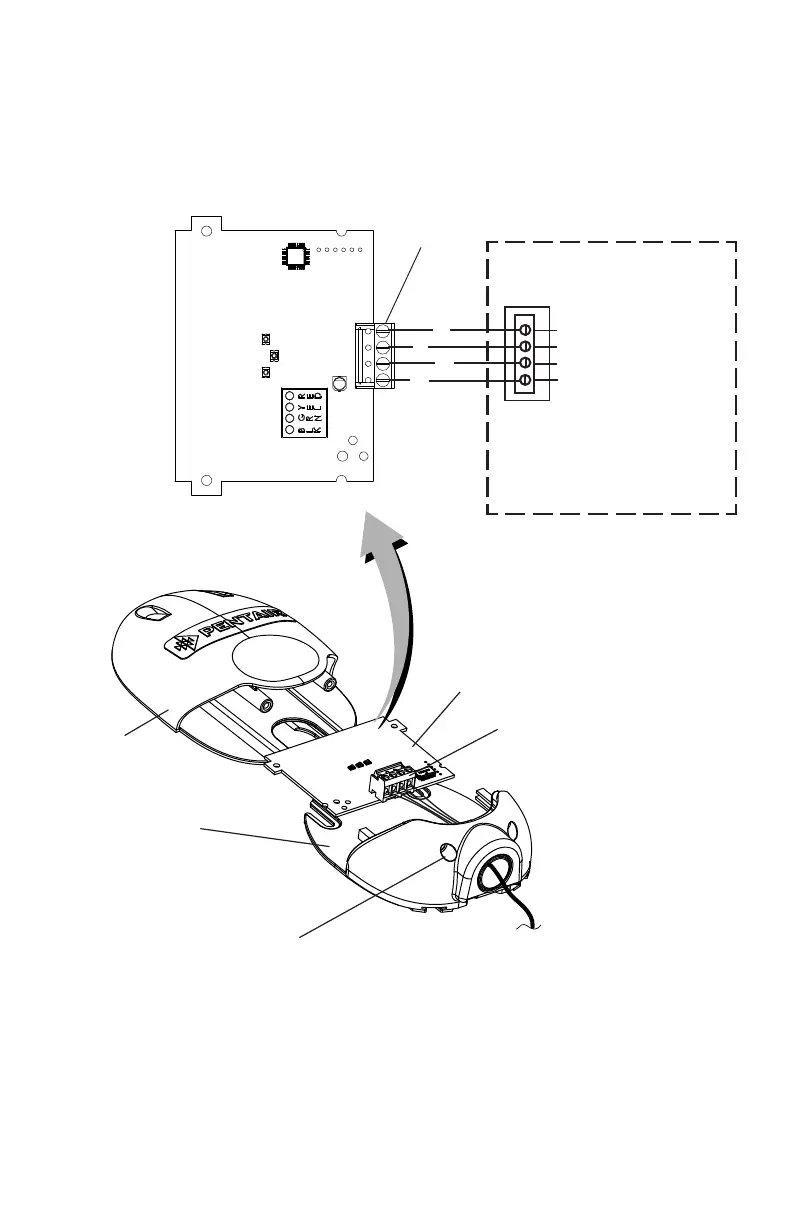

Outdoor wireless transceiver
circuit board
Connect 4-conductor
communication cable to
terminal screws.
Outdoor
Transceiver
connector
COM PORT (RS-485)
screw terminal connector on
IntelliTouch
®
or EasyTouch
®
Control System circuit board
BLK
RED
YEL
GRN
BLK (GND - PIN 1)
GRN (- DT - PIN 2)
YEL (+ DT - PIN 3)
RED (15 V - PIN 4)
Outdoor
Transceiver
circuit
board
