- 2 -
WARNING:
Note:
Immediately after use, the metal light guide prong and the
electrical contacts/pins of the endoscope may be HOT.
To avoid burns, do not touch these areas immediately
after use. For safer handling after a procedure, grasp the
PVE connector housing.
Ensure that the soaking cap has been securely
attached (by properly rotating it) to prevent the cap from
coming off during reprocessing. Failure to securely
attach the soaking cap can result in scope damage.

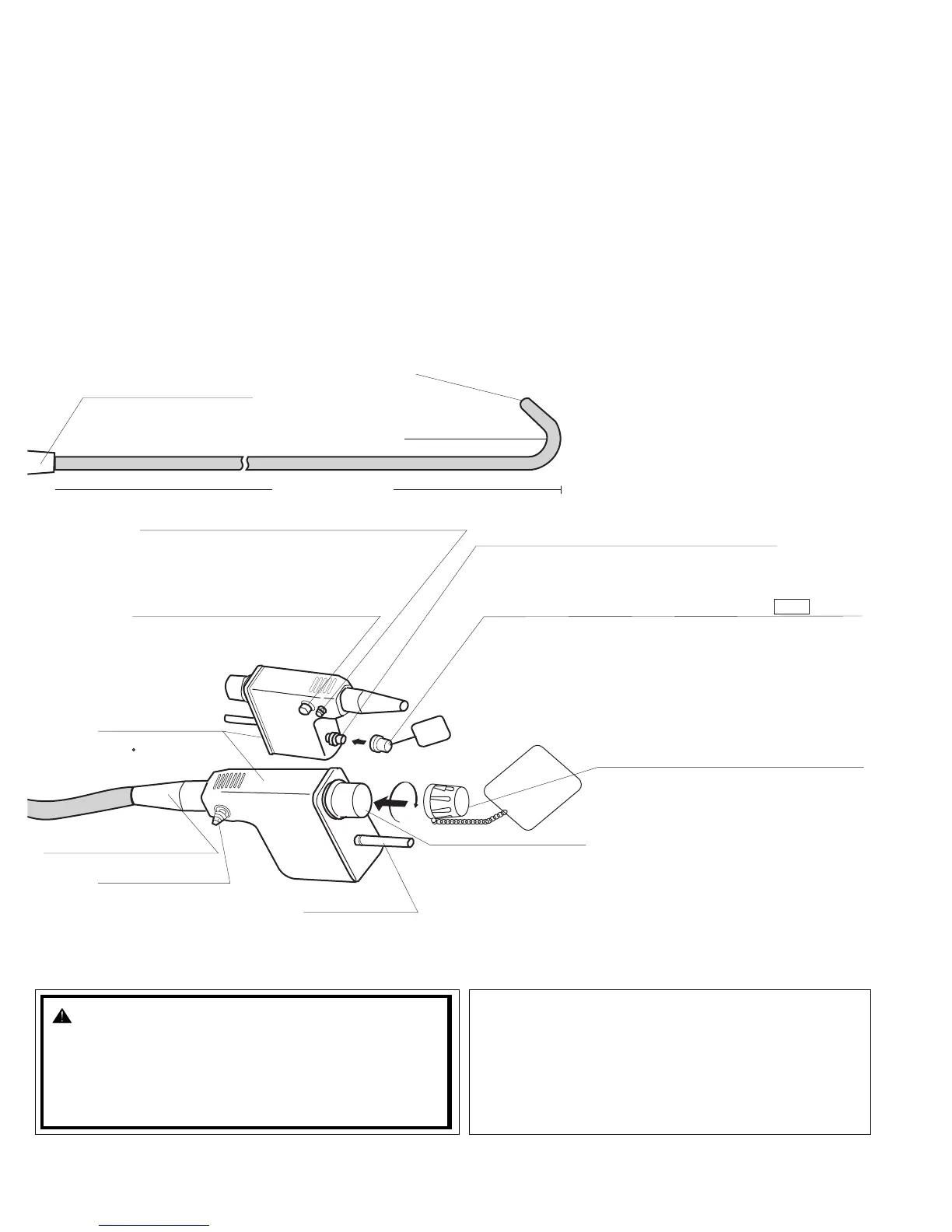

INSERTION TUBE
ELECTRICAL CONTACTS
LIGHT GUIDE
Transmits light from
light source to distal
end of endoscope.
ETO GAS STERILIZATION VENTING CAP OF-C5
Provides venting of endoscope interior to equalize
internal and external pressures. This cap must be
removed before immersion.
NOTE: See important separate section
regarding the use of this cap!
SUCTION NIPPLE
For attachment to
external suction
source
PVE CONNECTOR
Can be rotated within
a 180 range
AIR/WATER PORT
To connect feeding tube from water
bottle assembly.
FEED BACK TERMINAL
Certain manufacturers’ electrosurgical units, such
as older Olympus models, require the connection
of a scope feedback cord (S-cord) to this
feedback terminal.
VENTING CONNECTOR
Accepts “RED” ETO GAS Sterilization Venting cap.
Also accepts Leakage Tester.
PVE SOAKING CAP
OE-C9
BENDING SECTION
RED
This cap must be securely attached before
immersion.
DISTAL END
(Refer to the inside rear cover of this manual)
RUBBER STRAIN RELIEF
RUBBER STRAIN RELIEF
