Pentax IQZoom - Operating the 35-70 mm Zoom Lens

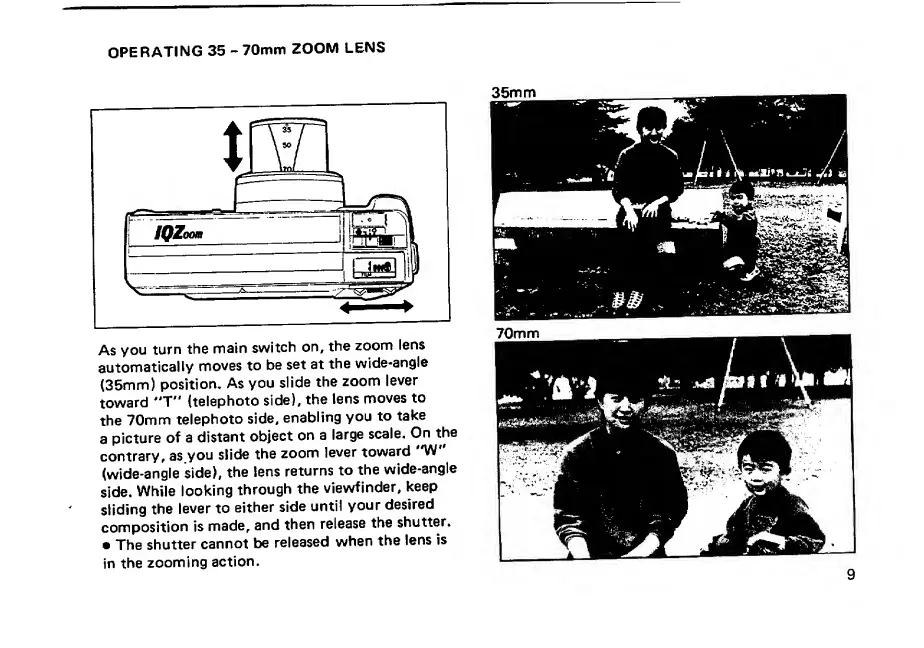

OPERATING 35 ~ 70mm ZOOM LENS
As you turn the main switch on, the zoom lens
automatically moves to be set at the wide-angle
(35mm) position. As you slide the zoom lever
toward 'T” (telephoto side), the lens moves to
the 70mm telephoto side, enabling you to take
a picture of a distant object on a large scale. On the
contrary, as you slide the zoom lever toward 'W
(wide-angle side), the lens returns to the wide-angle
side. While looking through the viewfinder, keep
sliding the lever to either side until your desired
composition is made, and then release the shutter.
• The shutter cannot be released when the lens is
in the zooming action.
