Getting Started
Use the battery that is provided with the camera. Charge the battery
before using it in the camera for the first time.
1

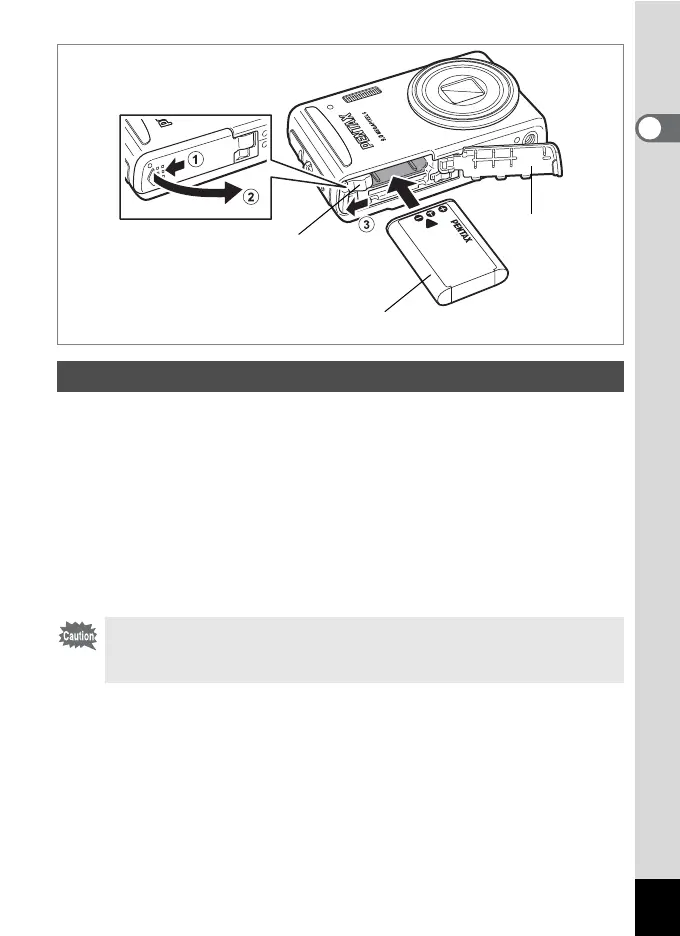

Open the battery/card cover.
Move the battery/card cover lock lever to the OPEN position 1 and
open the battery/card cover 2.
2
Using the side of the battery to press the battery/card
cover lock lever in the direction of
3
, insert the battery
with the PENTAX logo pointing toward the lens.
Push the battery in until it is locked in place.
3
Close the battery/card cover.
Close the battery/card cover and move the battery/card cover lock
lever to the LOCK position.
Installing the Battery
Make sure that the battery is inserted with the PENTAX logo pointing
toward the lens. If the battery is incorrectly oriented, malfunction
may result.
Battery/Card
cover
Battery
Battery/card cover lock lever
