Pentax Zoom 90-WR User Manual

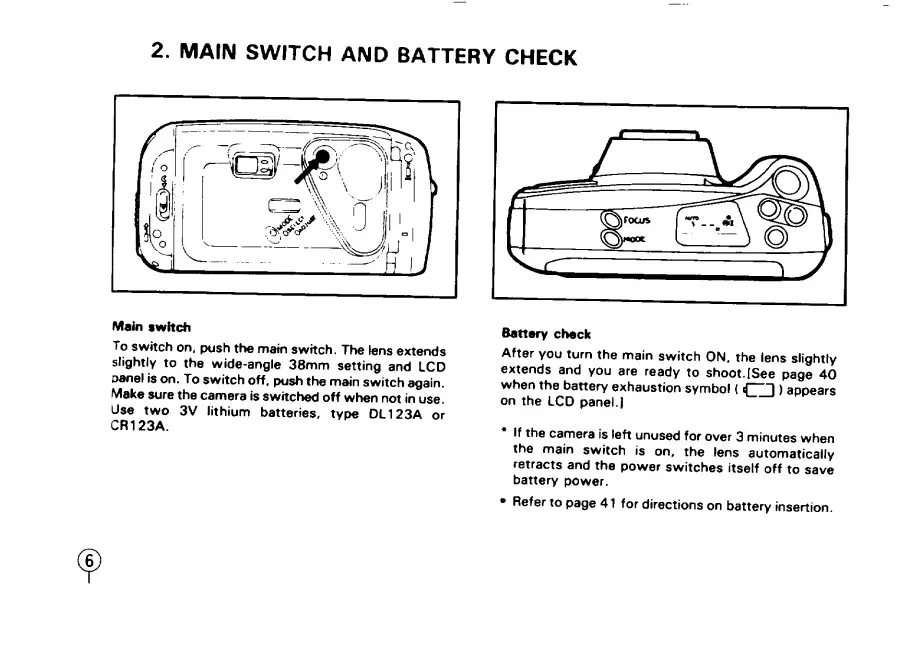

2. MAIN SWITCH AND BATTERY CHECK
Main switch
To switch on, push the main switch. The lens extends
slightly to the wide-angle 38mm setting and LCD
oanel is on. To switch off, push the main switch again.
Make sure the camera is switched off when not in use.
Jse two 3V lithium batteries, type DL123A or
CR123A.
Battery check
After you turn the main switch ON. the lens slightly
extends and you are ready to shoot. [See page 40
when the banery exhaustion symbol { ) appears
on the LCD panel.)
If the camera is left unused for over 3 minutes when
the main switch is on, the lens automatically
retracts and the power switches itself off to save
battery power.
• Refer to page 41 for directions on battery Insertion.

Pentax Zoom 90-WR Specifications

General

Optical Zoom	3x
Viewfinder	Optical viewfinder
Exposure Control	Automatic
Film Format	35mm
Lens	Pentax zoom lens
Focusing System	Autofocus
Flash	Built-in
Water Resistance	Water resistant
