Step 1: Getting Started

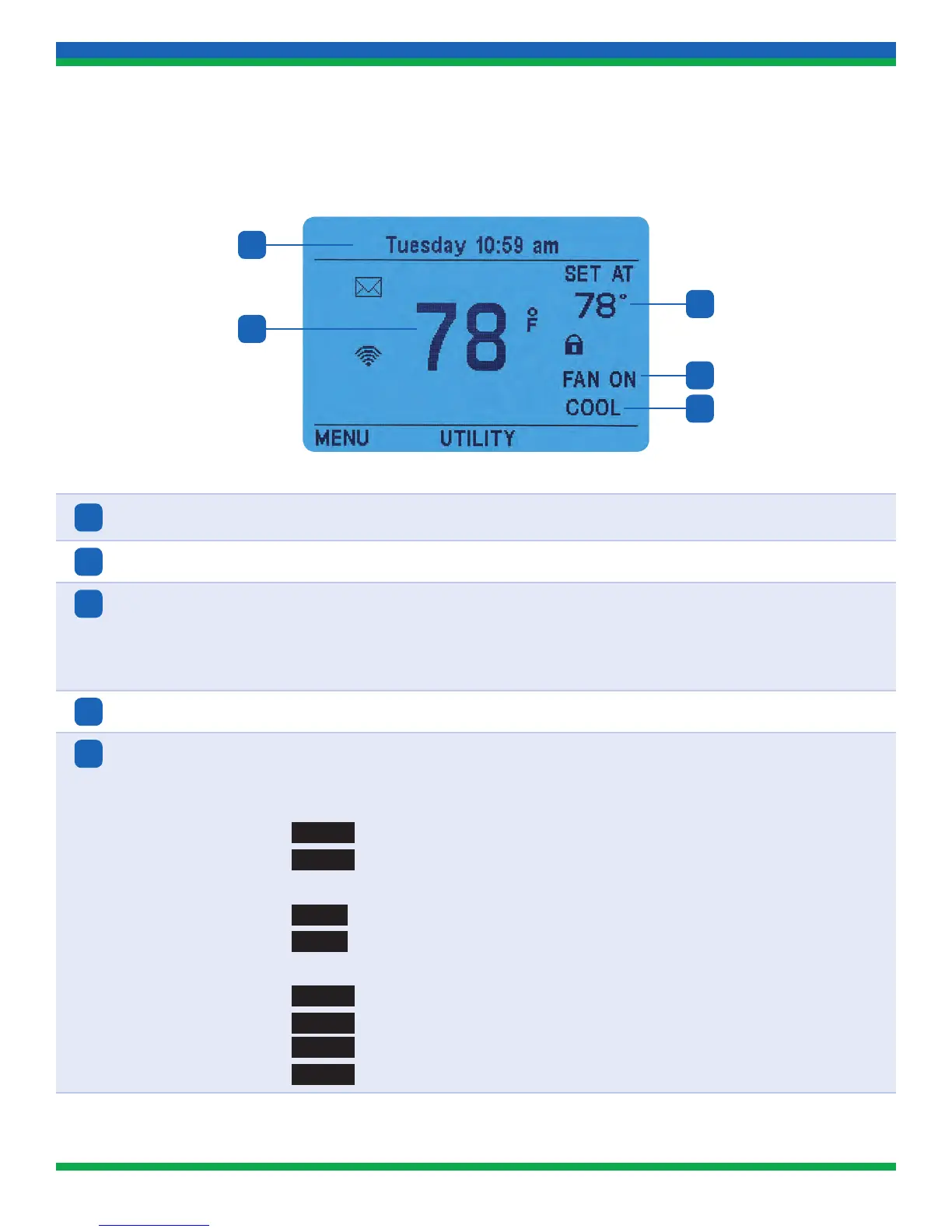

B. Thermostat Display
1
Messaging Area
Displays day and time, thermostat, and Pepco-related messages. In the event of a
power outage, the clock will maintain the correct time for 48 hours
2
Temperature Displays current room temperature
3
Setpoint
Temperature
Displays current desired temperature
• Blank when user selects the OFF mode via the menu (turns system off)
• When system is ON, the words SET AT changes to HOLD AT when in temporary
or permanent hold
4
FAN Status
Blank when in auto mode — displays FAN ON when fan is on continuously
5
System Status
Displays current operation mode according to system configuration as set by installer
• OFF – system is OFF
• COOL – system is in COOL mode but no call for cool
COOL1
– call for first stage of cool
COOL2
– call for second stage of cool (multi-stage units only)
• AUX – system is in AUX heat mode but no call for heat (heat pump only)
AUX1
– call for first stage of auxiliary heat (heat pump only)
AUX2
– call for second stage of auxiliary heat (multi-stage heat pump only)
• HEAT – system is in HEAT mode but no call for heat
HEAT1
– call for first stage of heat
HEAT2
– call for second stage of heat (multi-stage units only)
HEAT3
– call for first stage of auxiliary heat (heat pump only)
HEAT4
– call for second stage of auxiliary heat (multi-stage heat pump only)
1
2
3
4
5
