Pull up the red Quick Lok Bars on each side of the module and carefully lift off the entire
module.
The module has been removed from the motherboard.
3.2 Mounting the Grounding Rail (ACC-MB-HSK)
Easy Shield Connection
If required, you can attach a grounding rail to the motherboard in order to connect the shield at
the trunk cable more easily. The grounding rail is available as accessory ACC-MB-HSK.

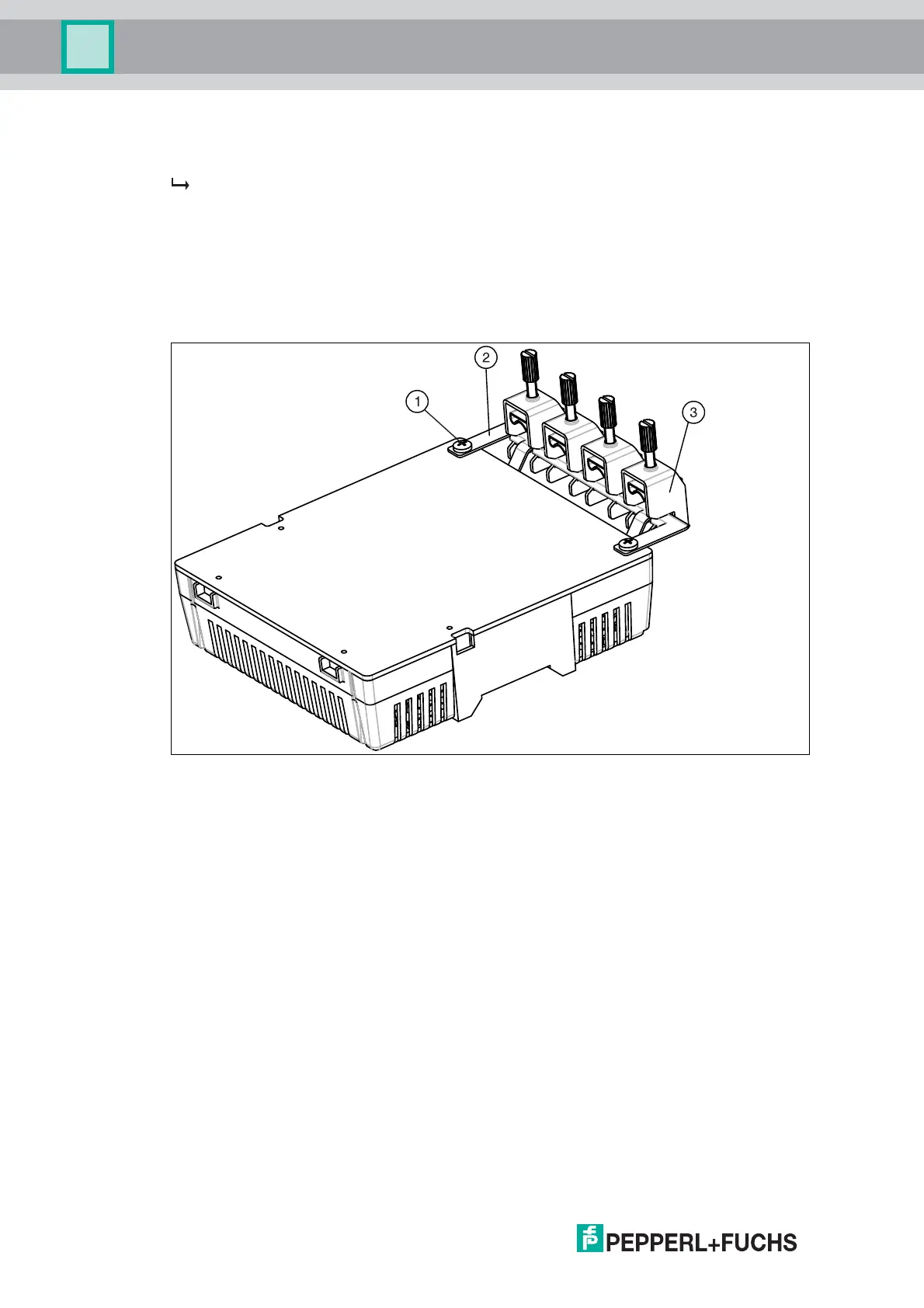

Mounting the Grounding Rail (ACC-MB-HSK)
1 Connection screws DIN 7985 M4 x 10 (2x): Use to fix the grounding rail to the mother-
board
2 Grounding rail
3 Shield clamps (4x): Use to connect the shield lines with the grounding rail
