Pepperl+Fuchs HiC5861 System Manual

H-System – Isolated Barriers and Termination Boards
Product Specifications
2023-03
17
2.3.3 Accessories
Label Carriers for Termination Boards
The termination boards can be fitted with a label carrier for individual identification.

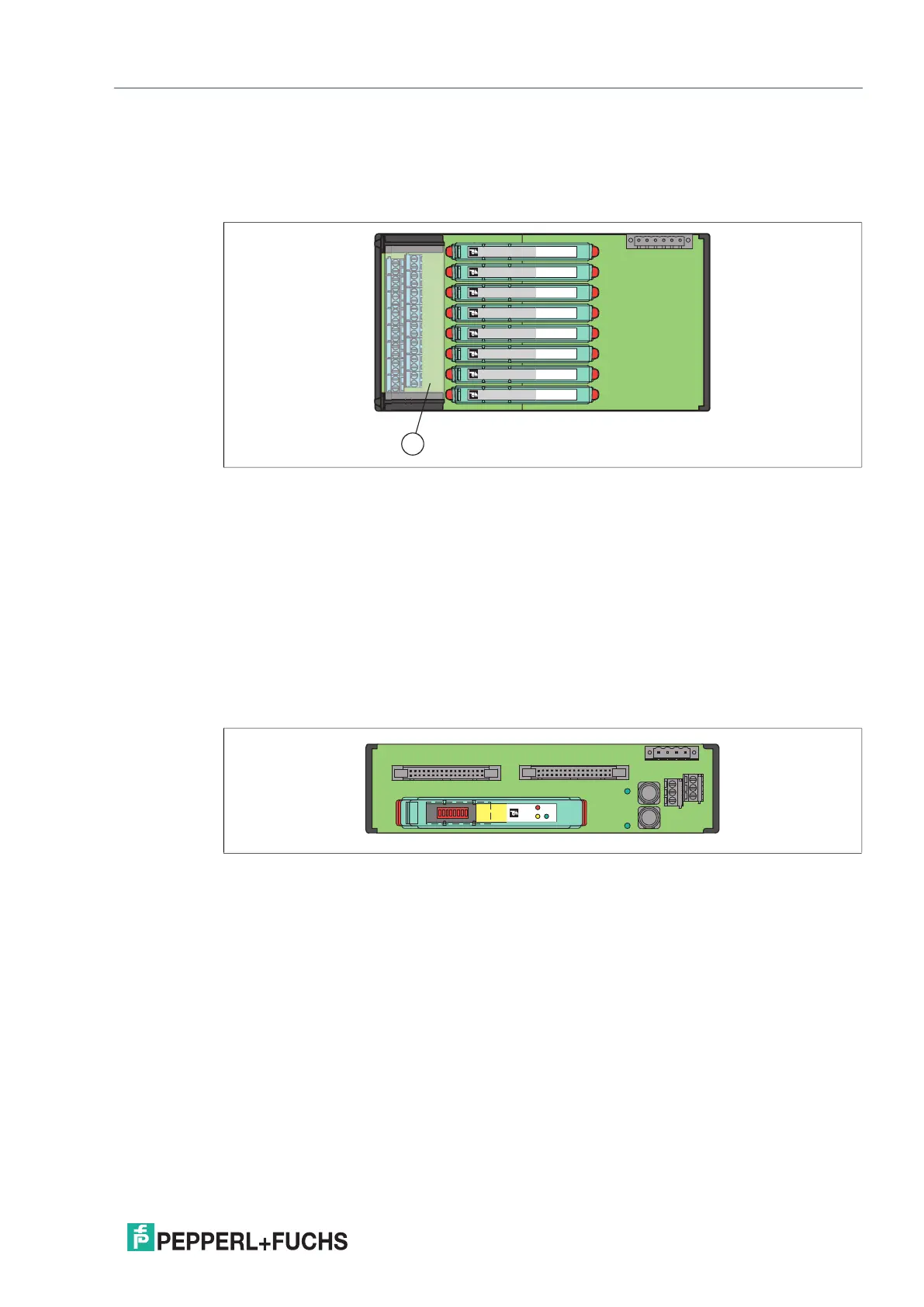

Figure 2.18 Label carrier for termination boards
HART Communication Board
The HART Communication Board is connected to HART-compatible
H-System termination boards. It has one slot to mount a 32-channel HiD Mux2700-type
HART multiplexer main device.
Preconfigured HART connection cables enable easy connection between
the H-System termination boards and the HART Communication Board.
The device offers a redundant fused power supply with an LED indicator.
The RS 485 terminals have a redundant configuration and enable simple bridging to the next
bus node.
Figure 2.19 HART Communication Board HiATB01-HART-2x16
Application Example
The following diagram shows a typical example of an application
with a HART Communication Board.
1 Label carrier HiALC-HiCT*-SET-*** for HiC termination boards
1
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart
