H-System – Isolated Barriers and Termination Boards
Dismounting, Maintenance, and Repair
6.2 Termination Board Dismounting
Dismounting the Termination Boards
1.
Loosen the mounting screws (3).
2. Remove the termination board (2) from the DIN mounting rail (1).

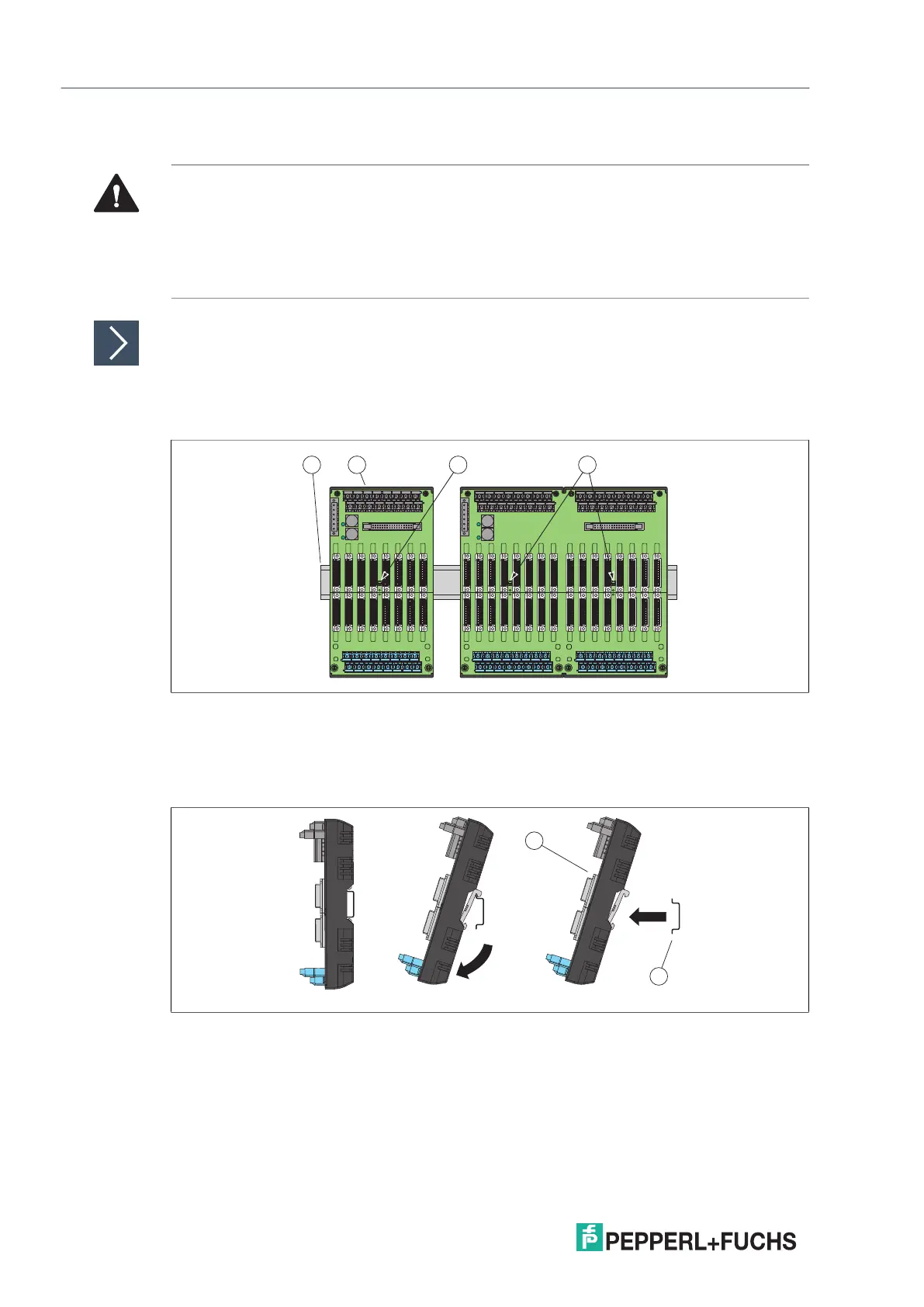

Figure 6.2 Termination board fixing
Figure 6.3 Termination board dismounting
Warning!
Risk of short circuit
Working on live parts can cause injuries and can compromise the function and the electrical
safety of the device.
• Before working on the device, always disconnect the supply voltage.
• Connect the device to the supply voltage only after completion of the work.
1 DIN mounting rail
2 Termination board
3 Fastening screws
1 DIN mounting rail
2 Termination board
1 2 33
1
2
