H-System – Isolated Barriers and Termination Boards
Mounting and Installation
Mounting the Termination Boards
The termination boards are mounted on the 35 mm DIN mounting rail.
The DIN mounting rail runs centrally below the termination board.
1. Clip the termination board (2) onto the DIN mounting rail (1).
2. Tighten the mounting screws (3).
The termination board (2) is now properly mounted and secured.

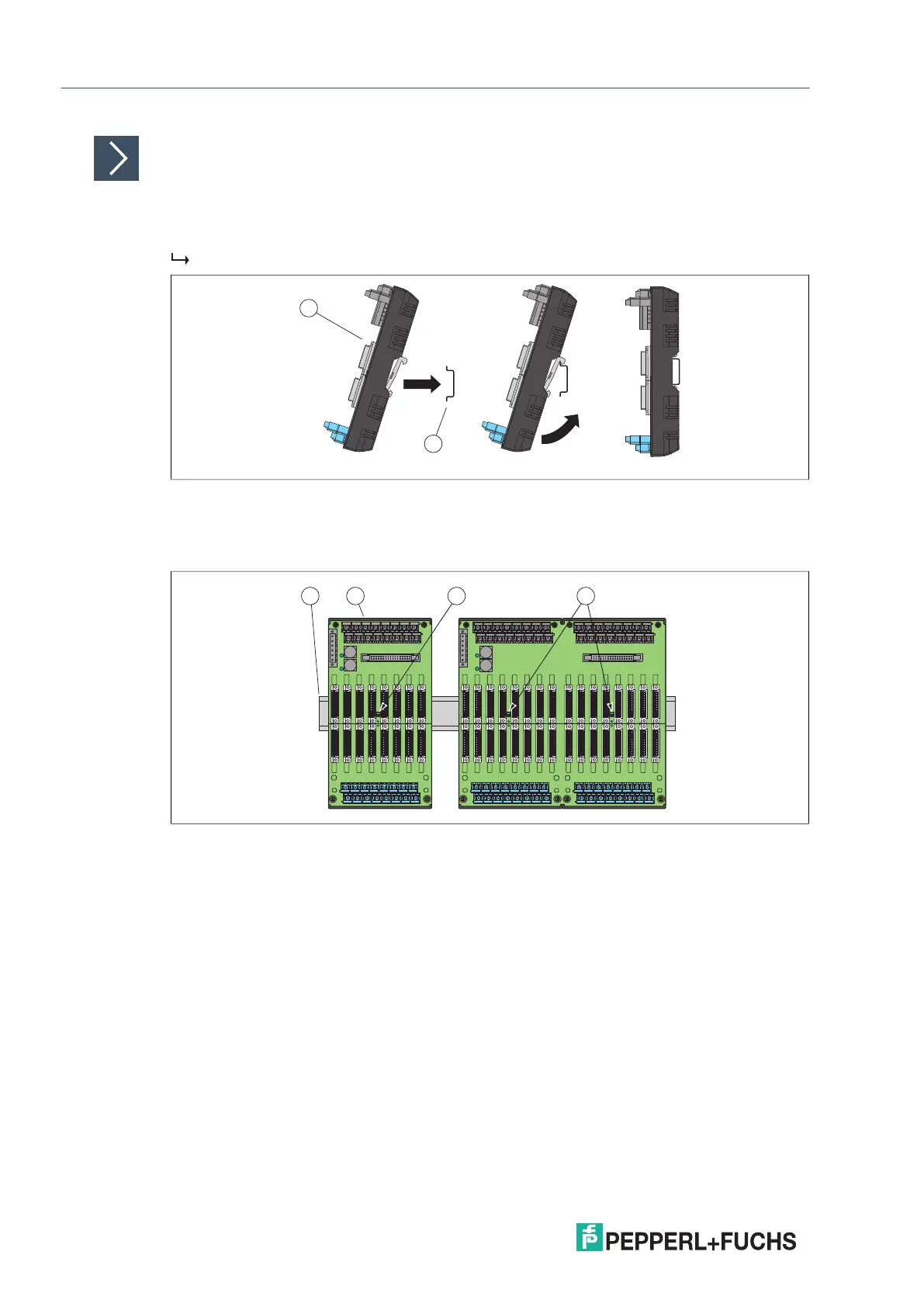

Figure 3.1 Termination board mounting
Figure 3.2 Termination board fixing
1 DIN mounting rail
2 Termination board
1 DIN mounting rail
2 Termination board
3 Fastening screws
1
2
1 2 33
