H-System – Isolated Barriers and Termination Boards
Mounting and Installation
Mounting the Isolated Barriers on the Termination Board
1.
Push the Quick Lok bar (1) into the upper position.
2. Center the pins (2) above the contact elements of the termination board.
Note the connection direction of the device.
3. Center the locking pins (3) above the locking elements of the termination board.
4. Carefully push the device into the contacts and locking elements.
5. Push the red Quick Lok bar (1) down on either side of the device.
The device is now mounted.

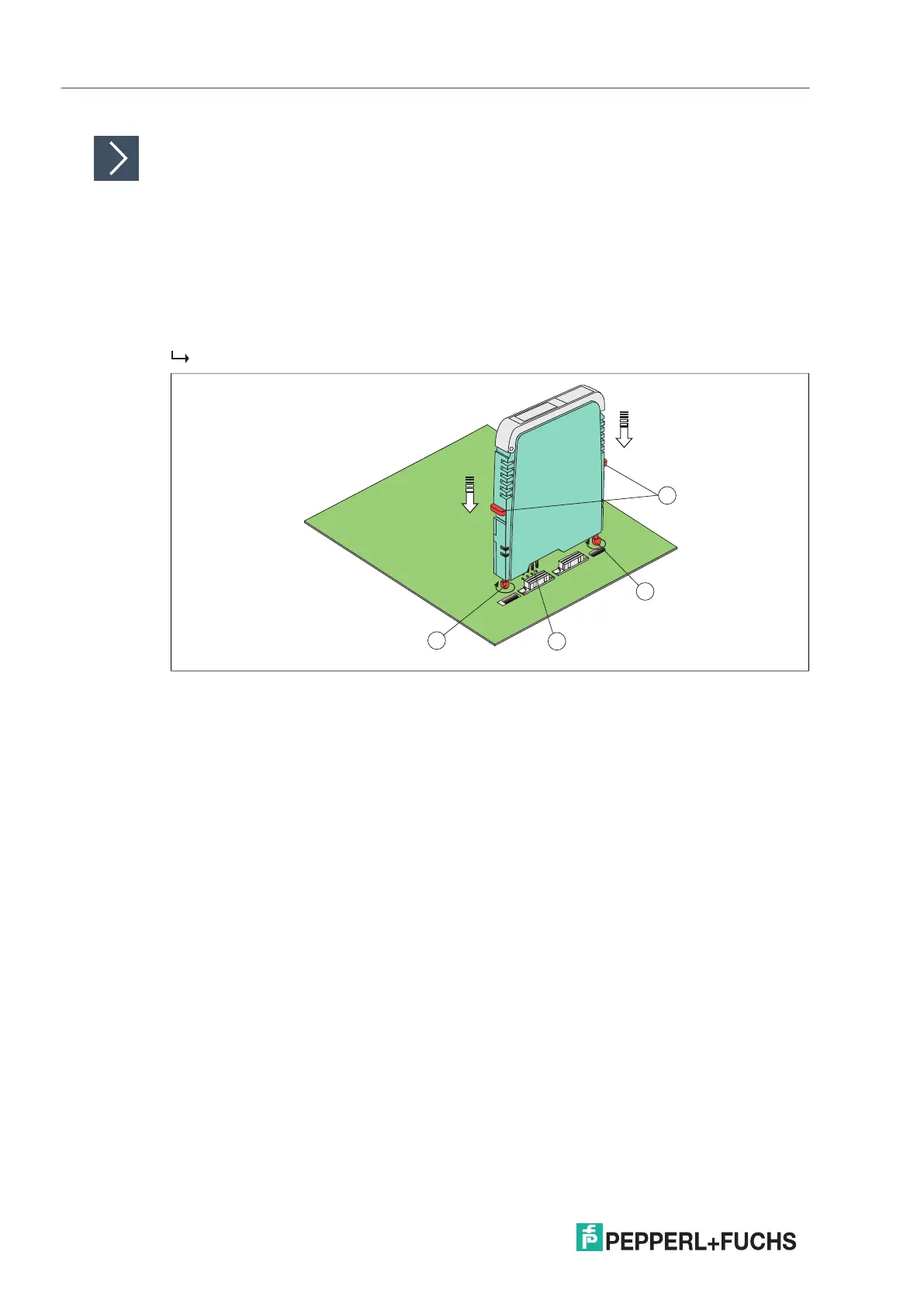

Figure 3.4 Mounting of an H-System isolated barrier
1 Quick Lok Bar
2 Coding pins
3 Adjustment pins
1
2
3
3
