H-System – Isolated Barriers and Termination Boards
Technical Specifications

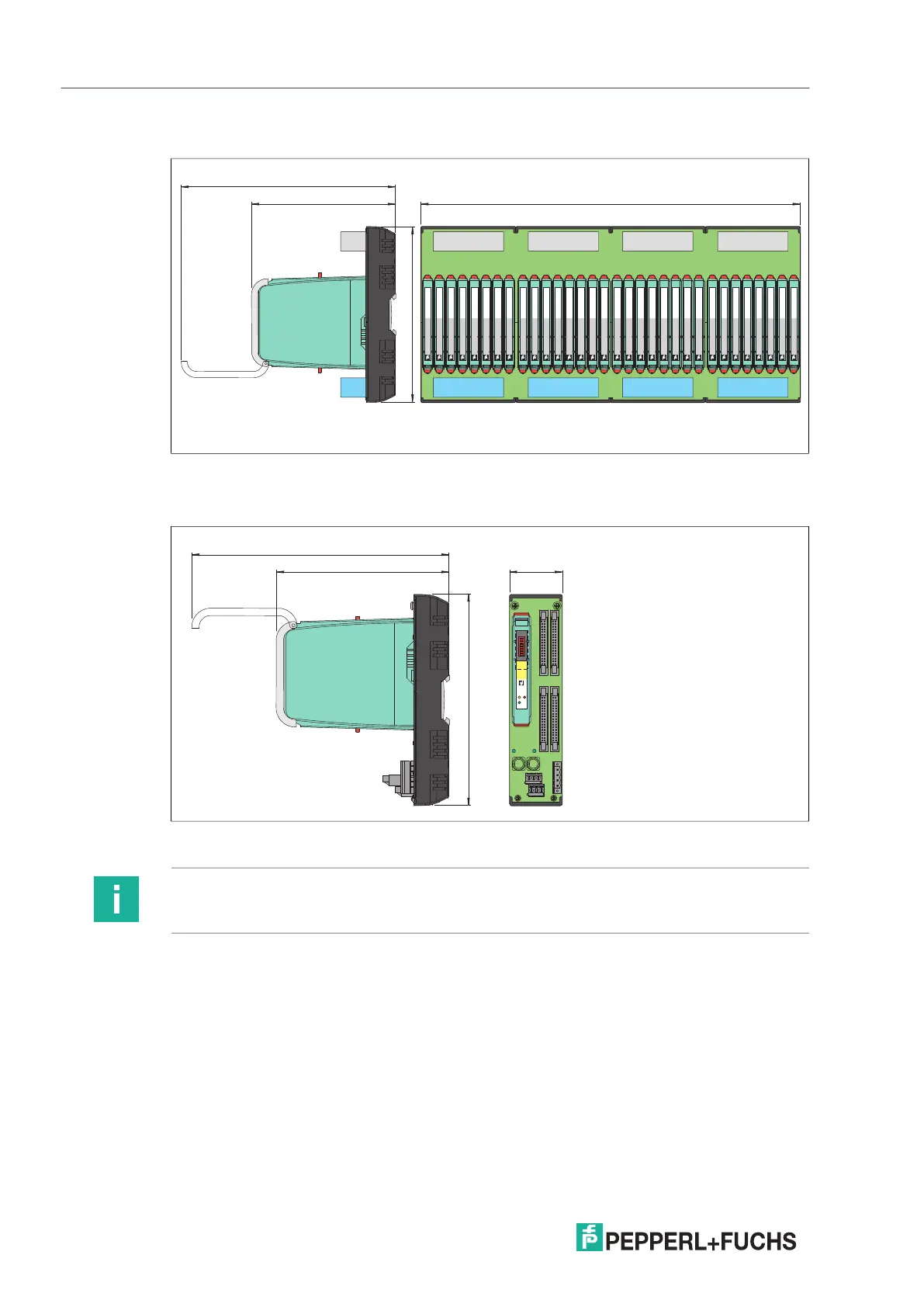

Termination Board for 32 modules
Figure 7.6 Dimensions (W x H x D): 432 x 200 x 163 mm (17 x 7.9 x 6.42 inch),
depth including module assembly
Accessory Boards
Figure 7.7 Dimensions (W x H x D): 50 x 200 x 163 mm (1.97 x 7.9 x 6.42 inch),
depth including module assembly
163 mm 432 mm
253 mm
200 mm
163 mm 50 mm
253 mm
200 mm
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart
Note
See corresponding system descriptions of the control system manufacturer
for further information.
