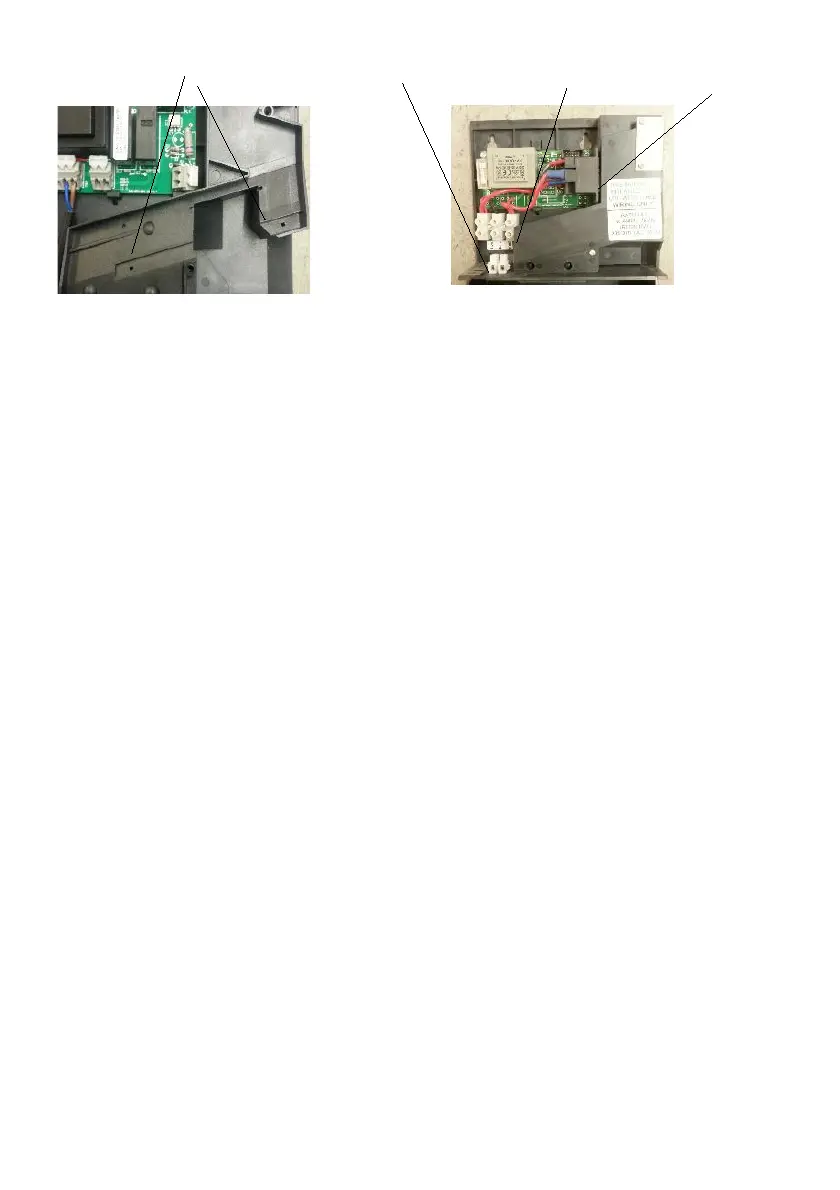

Runway locating holes Optional earth block Terminal Block Relay
Figure 3 Figure 4
8 Fit new runway supplied ensuring the lugs are correctly located in the
corresponding holes (Figure 3).
9. Re-fit runway cover and insulation plate using retained screws. Attach
wall bracket to the wall and re-connect electrical connections ensuring they
they are re-connected correctly.
10. Reconnect PSU lead (Figure 5) and refit and lock front cover.
11. Replace cash box and switch on electricity supply.
