4. Overview
Refer to the illustrations on page 2 of this manual.
Sensor
1
wind vane
7
solar panel
2
wind speed sensor
8
U-bolt
3
UV sensor
9
battery compartment
4
thermo-hygro sensor
10
reset button
5
rain collector
11
LED indicator
6
bubble level
Display
1
time
10
rain fall
2
moon phase
11
outdoor temperature
3
barometric pressure
12
outdoor humidity
4
weather forecast
13
RF icon
5
UV index
14
indoor humidity
6
light
15
indoor temperature
7
wind speed
16
date
8
wind direction
17
wifi icon
9
max/min daily
18
DST
5. Installation
5.1 Sensor

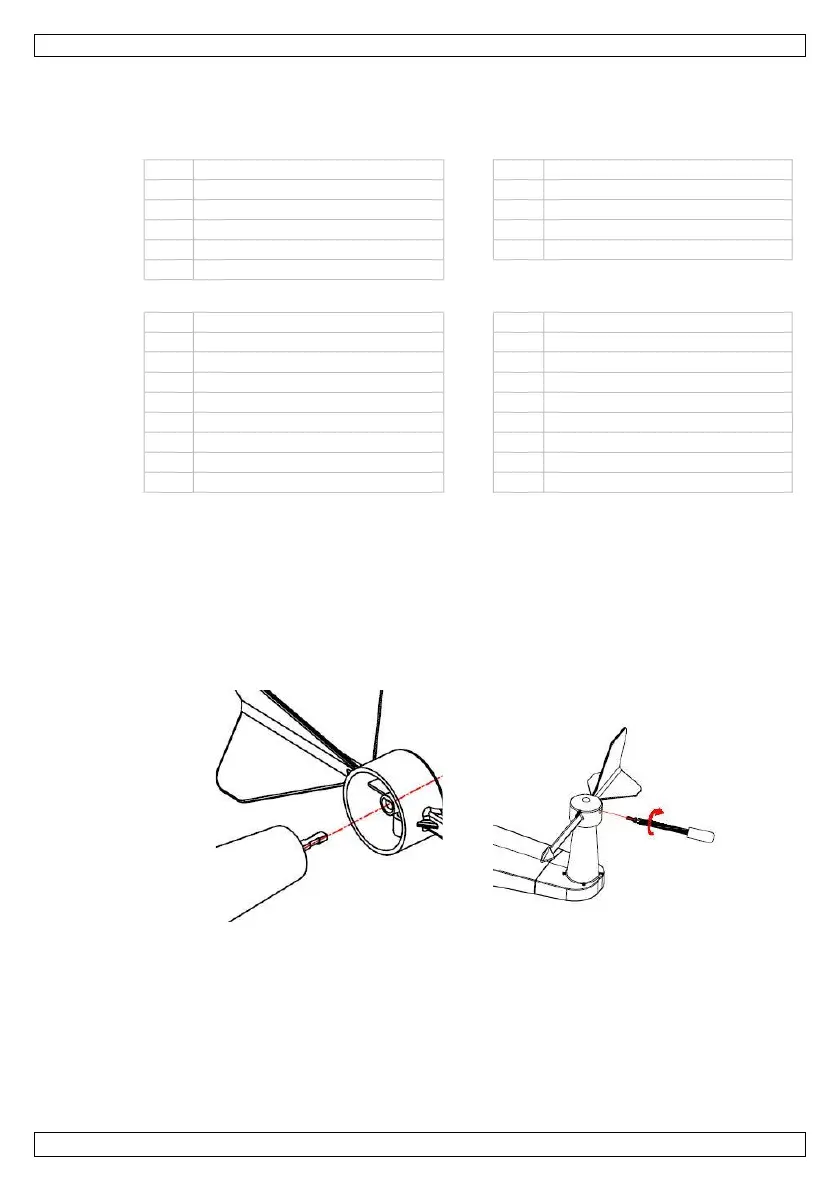

Assembling the Wind Vane and Anemometer
Slide the wind vane onto the shaft and tighten the screw, making sure the vane will spin
freely.
