REPLACEMENT PARTS LIST - RAM ASSEMBLY
# Description Qty. # Description Qty. # Description Qty.
1 Hydraulic Unit Body 1 13 Fiber Washer (A) 1 27 Connecting Pin 1
2 3/16” Steel Ball 2 14 Top Nut 1 28 Retaining Pin 2
3 Filter Body Screen 1 15 Top Nut O-Ring 1 30 5/16” Steel Ball 1
4 Copper Washer 1 16 1/4” Steel Ball 1 31
Release Valve Spacer
1
5 Pump Cylinder O-Ring 1 17 Pump Cylinder 1 32
Release Valve O-Ring
1
7 Ram Collar 1 19
Pump Cylinder O-Ring
1 33 Release Valve 1
8 Ram 1 20 Back Up Ring 1 34 Spring Guide 1
9 Cylinder 1 21 Pump Piston 1 35
Overload Valve Spring
1
10 Fiber Washer (B) 1 22 Piston Clamp 1 36 O-Ring 1
11 Oil Chamber 1 24 Handle Sleeve 1 37 Adjusting Screw 1
12 Oil Fill Plug 1 26 Piston Pin 1 38 Cap 1

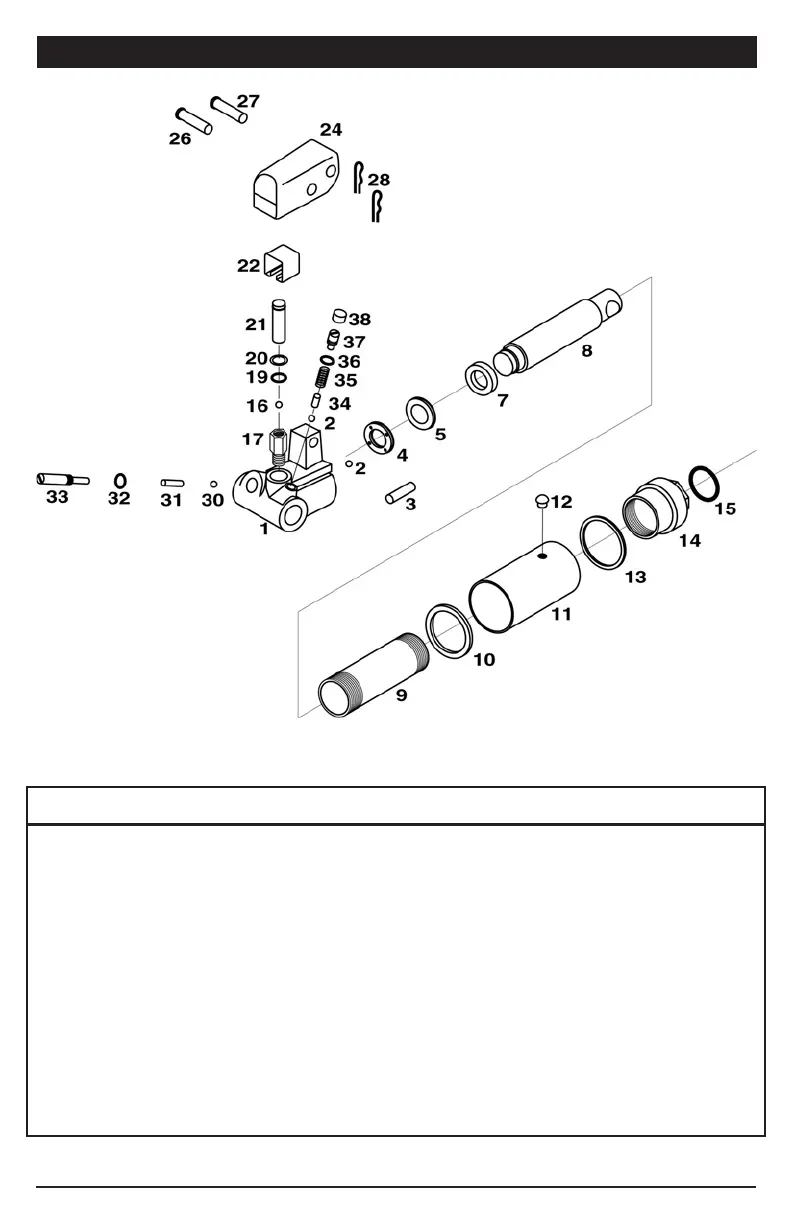

Figure 6
To Next Page
