INSUFFICIENT POWER:
Probable Cause Solution
Dirty or clogged air passages ......... Flush and lubricate tool, drain air tank and supply line
Insufficient air supply ...................... Increase line pressure, Make sure compressor
matches tool's air pressure and consumption needs
Air leakage...................................... Use PTFE tape at all fittings and joints. Check tool for
worn or damaged O-rings & seals.
Worn/damaged wear & tear parts ... Replace as necessary.
Tool matching ................................. Be sure you are using a tool suited for the torque
requirements of the job at hand.
TROUBLESHOOTING
LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These war-
ranties give specic legal rights. Except where prohibited by local law, the law of the State of Washington governs
all warranties and all exclusions and limitations of warranties and remedies. There may be other rights which vary
from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal
use and service. A defective product may be returned for a free replacement within 90 days from the date of pur-
chase, provided that product is returned to
place of purchase immediately after discovery of defect. After 90 days and up to one year from date of purchase,
PERFORMANCE TOOL® will replace at no charge any parts which our examination shall disclose to be defective
and under warranty. These warranties shall be valid only when a sales receipt showing the date of purchase ac-
companies the defective product or defective part (s) being returned. For part (s) after 90 days, please remit your
request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be
replaced under normal use and service. These warranties shall not apply to any product or part which is used for a
purpose for which it is not designed, or which has been repaired or altered in any way so as to affect adversely its
performance or reliability, nor shall these warranties apply to any product or part which has been subject to misuse,
neglect, accident or wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in
connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes
no express or implied warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL®
makes no implied warranty of merchantability and no implied warranty of tness for any particular purpose, except
that for goods purchased primarily for personal, family or household use and not for commercial or business use,
PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied
warranty of tness for a particular purpose), but only for the particular qualities or characteristics, and for the dura-
tion, expressly warranted above.
The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in
all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in
any manner related to any product, or to the design, use, or any inability to use the product. The sole and exclusive
remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws
on limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the
above limitations may not apply in all cases.
© Copyright 2014 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138

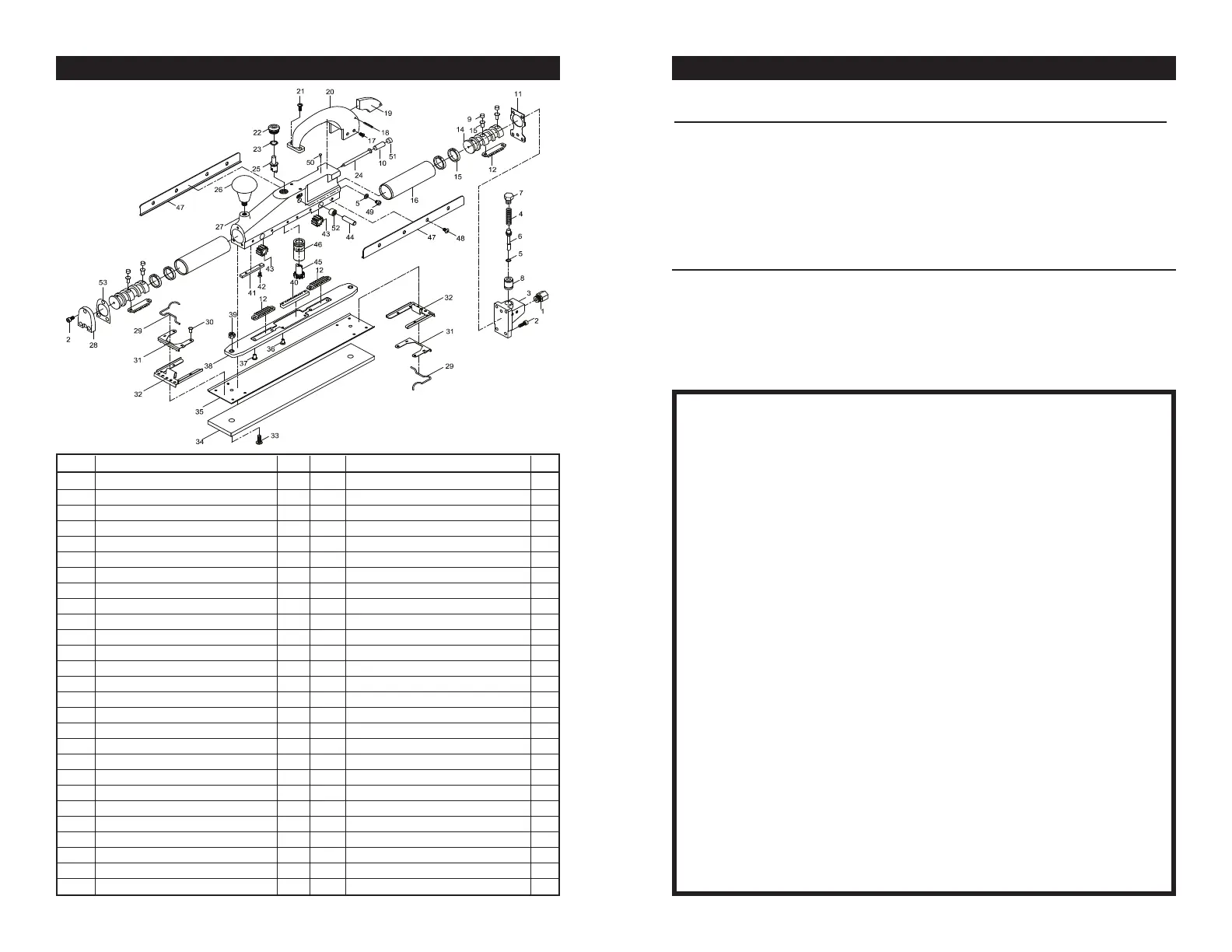

PARTS LIST
INDEX DESCRIPTION QTY INDEX DESCRIPTION QTY
1 Air Inlet 1
2 Screw 7
3 Rear Cover 1
4 Spring 1
5 O-Ring 2
6 Valve Stem 1
7 Valve Plug 1
8 Valve Collar 1
9 Oil Cotton 4
10 Oil Cotton 1
11 Gasket 1
12 Flat Gear 4
13 Rivet 4
14 Piston 2
15 Piston Ring 4
16 Cylinder 2
17 Screw 4
18 Spring Pin 1
19 Trigger 1
20 Handle 1
21 Screw 2
22 Plug 1
23 O-Ring 1
24 Pin 1
25 Switch 1
26 Palm Handle 1
27 Housing 1
28 Front Cover 1
29 Wire Clip 2
30 Rivet 4
31 Compression Spacer 2
32 Fixed Plate 2
33 Screw 2
34 Foam Pad 1
35 Pad Plate 1
36 Rivet 4
37 Rivet 1
38 Pad Boat 1
39 Locking Nut 4
40 Slide Gear 4
41 Brass Plate 2
42 Screw 4
43 Transmission Gear 2
44 Gear Shaft 4
45 Switch Gear 1
46 Switch Sleeve 1
47 Boat Guide 1
48 Screw 2
49 Screw 1
50 Rivet 1
51 Plug 1
52 Needle Bearing 1
53 Front Gasket 1
